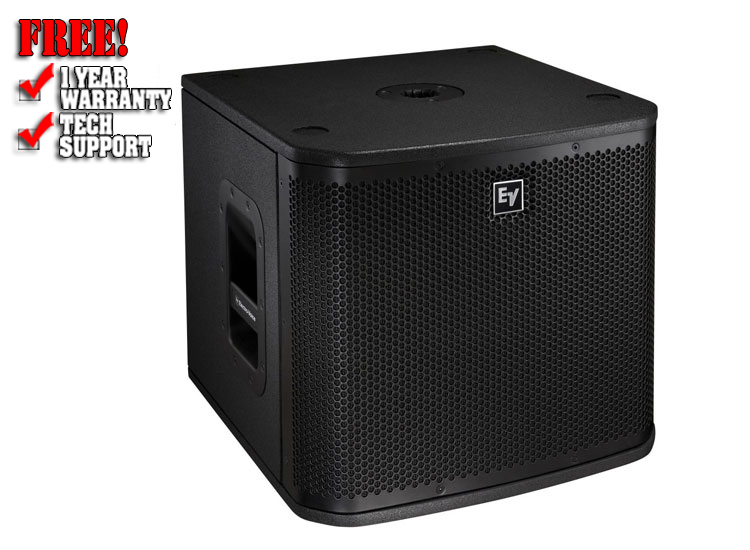

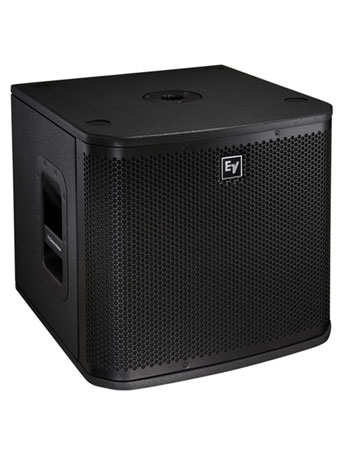

Electro Voice ZXA1-Sub Powered Subwoofer

Big Electro-Voice Sound from a Super-Portable Subwoofer

The Electro-Voice ZXA1-Sub powered subwoofer gives you an excellent, articulate active sub in an extremely portable design. Overall, it is surprisingly light and powerful for its 700-watt power rating.

Don't Let The Size Fool You

Measuring less than 16 x 18 x 18 inches, and weighing in under 50 pounds, the ZXA1-Sub subwoofer still manages to deliver 700 watts of room-shaking power. It does this largely with its use of a cleverly designed Class D amplifier inside, which cuts down on the weight of the circuitry and also runs cooler and more efficiently.

Sounds Great at Any Level

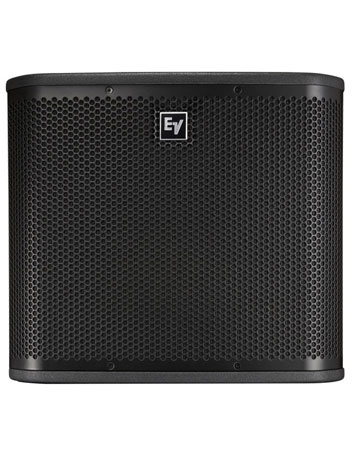

The EV ZXA1-Sub's 9-ply 15 mm wood cabinet is uniquely designed to faithfully reproduce your low-end frequencies without getting "boxy" sounding when you push the volume to the limit. The excellent amplifier inside the ZXA1-Sub, running through the single EVS-12S 12-inch woofer, delivers a bass tone that is clearly defined and retains the tonal detail that you've spent your time crafting. An impressive maximum SPL rating of 126 dB makes it one of the more efficient amps for its size and weight as well.

XLR I/O and Easy-To-Use Controls

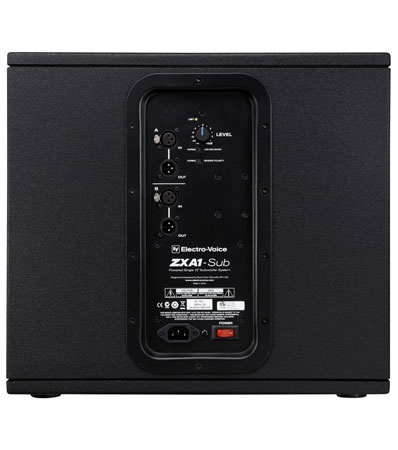

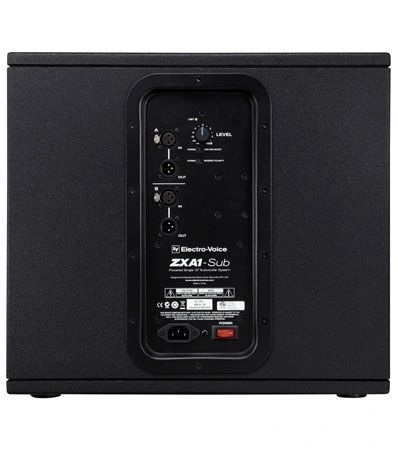

The controls on the ZXA1-Sub are totally straightforward. It has 2 x XLR balanced stereo inputs, as well as 2 x XLR balanced stereo outputs. It has its own Volume Level knob on the back panel. It can be run in Normal or Bass Boost modes. A handy Polarity Switch knob is also provided here.

Use With Other ZXA1s or Other Powered Speakers

Overall, the ZXA1-Sub was voiced and designed to be the perfect complement to your full-range Electro-Voice ZXA powered speakers. But if you want to integrate its tone with a pre-existing speaker rig, it'll serve well in any situation where you need a 700-watt subwoofer to hold down the low end. It's got an integrated handle to make lugging it around easy, and a built-in pole mount when you want to get it off the ground in a full-range setup.

Features:

• Integrated 700-Watt Class D amplifier
• EVS-12S 12-inch woofer
• Dual XLR stereo inputs and outputs
• Pole-mounting cup for full-range systems
• 126 dB maximum SPL
• 9-ply/15-mm wood enclosure
• Internally braced for durability
• Integrated handle

Specification:

• Pole-Mount Socket Size: 1-3/8" (35 mm)

• Frequency Response (-3dB): 53Hz-93Hz1
• Frequency Range (-10dB): 44Hz-118Hz1
• Max. Measured SPL: 126dB1, 2
• Coverage (Horizontal x Vertical): Omnidirectional
• Power Rating: 700W
• LF Transducer: (1) EVS-12S, 305mm (12 in.) Woofer
• Crossover Frequency: 100Hz

Connectors:

• (2) XLR Stereo Input
• (2) XLR Stereo Output

• Enclosure Material: 9-ply, 15mm Plywood, Internally Braced, with Textured Paint
• Grille: 16GA Steel with Black Powdercoat
• Mains Requirements: 120V: 90V-132V, 1.0A3, 50-60Hz
• 1-3/8" (35 mm) pole-mount socket
• Dimensions (H x W x D): 15.7" x 17.50" x 18.00"
• Net Weight: 46 lbs
• Shipping Weight: 56.5 lbs

Weight, Dimensions, and Manufacturer Part Numbers

• Shipping Weight: 59 lbs
• Shipping Dimensions: 22 x 20 x 18 in
• Manufacturer Part Number (MPN): F.01U.247.468
