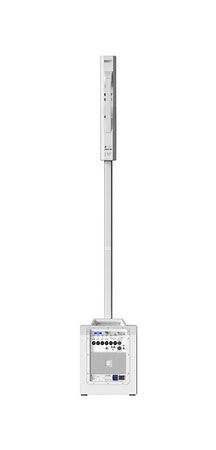

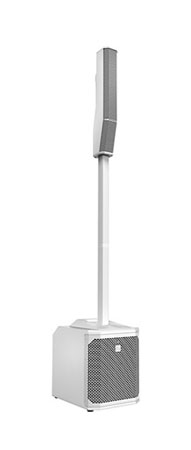

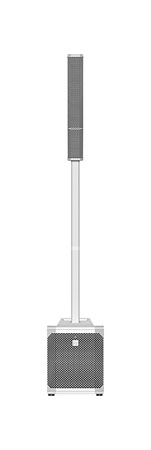

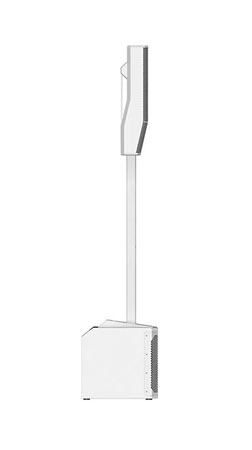

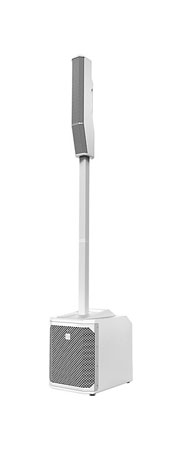

Electro-Voice EVOLVE 30M-W

The Electro-Voice EVOLVE 30M-W portable linear column array loudspeaker system is designed to deliver a professional performance experience, which packs up and assembles quickly to look great on stage and withstand real-world demands. The Evolve 30M is ideal for solo musicians, small groups and venues needing an extremely portable system with extraordinary connectivity, coverage and output.

QuickSmart DSP and App Provide Intuitive Control

The Evolve 30M's QuickSmart DSP and companion mobile app allow easy navigation of system parameters through an LCD display with single-knob control or via Bluetooth. Functions include four presets (Music, Live, Speech, Club), three-band EQ, seven-band graphic EQ, five user presets, phantom power, limiter monitoring and master volume control for gain optimization. All audio functions can be adjusted via the QuickSmart app, precisely tuning the sound from anywhere in the venue.

Integrated Mixer With Professional-Grade Effects

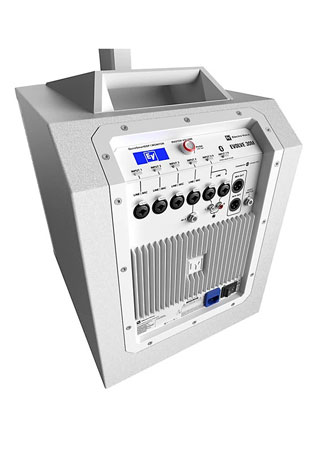

Developed with Dynacord, the Evolve 30M features a fully featured digital mixer with multiple inputs, studio-quality preamps and onboard effects like chorus, delay, flange, echo and reverb. The mixer can be controlled through the QuickSmart app or LCD interface. Independent channel AUX sends, Hi-Z and footswitch inputs allow flexible configuration while built-in effects minimize the need for external gear, reducing setup time and clutter.

Ultrawide Coverage for Optimal Audience Experience

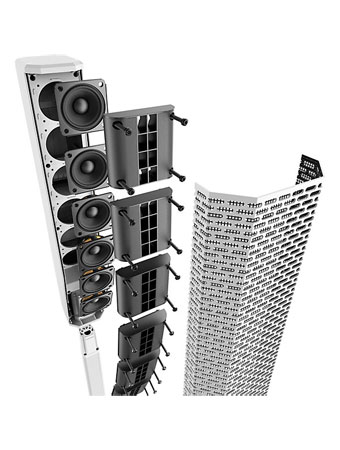

The Evolve 30M's full-range column array uses six 2.8" neodymium drivers and proprietary waveguides to provide 120-degree horizontal coverage and 40-degree asymmetrical vertical coverage, directing sound to seated and standing listeners. The lightweight, composite enclosure is acoustically optimized with rear ports and a durable aluminum handle.

Powerful, Portable and Durable

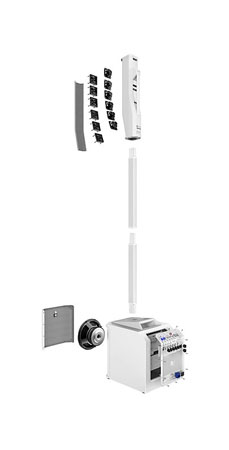

A 10" subwoofer in a 15 mm wood enclosure with laminar-flow venting provides enhanced rigidity and performance. The array and sub connect via a two-piece pole with internal wiring and magnetic latching for easy transport and setup. A Class-D amplifier delivers 1,000 watts total power, 500W to the sub and 500W to the array. The EVOLVE 30M-W's white powder-coated steel grille, durable materials and portable design make it ready for any event.

Features

• Class-D amplification with 1,000W peak output
• 10" woofer and six 2.8" full-range drivers
• Onboard 8-channel digital mixer
• 51Hz-20kHz frequency response

Specs

Speaker Configuration

• Active/passive: Active
• Type: 2-way
• LF driver: 10"
• MF driver: Not applicable
• HF driver: 2.8"

Power

• Amplifier class: D
• Wattage: 1,000W
• Mixer/preamp: Yes

Audio

• Frequency response: 51Hz-20kHz
• Coverage pattern: 120° x 40°
• Max SPL: 123dB

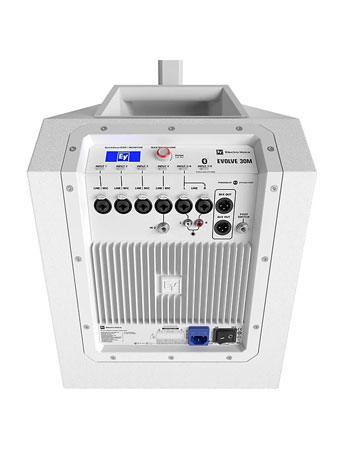

Inputs

• XLR: 6 combo
• TRS: 1 x Hi-Z; 1 x 3.5 mm stereo
• TS: 1 x 1/4" footswitch
• RCA: 1 stereo
• SPEAKON: Not applicable

Outputs

• XLR: 1 MIX out; 1 AUX out
