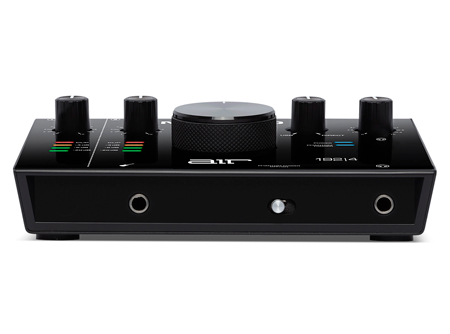

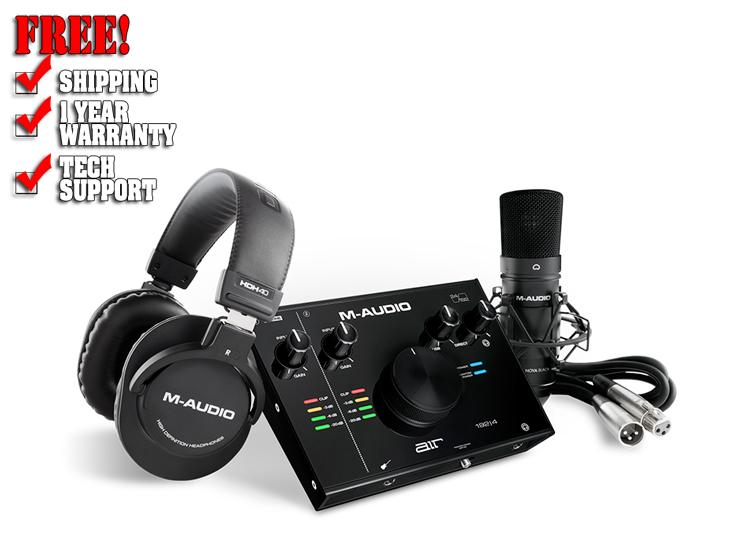

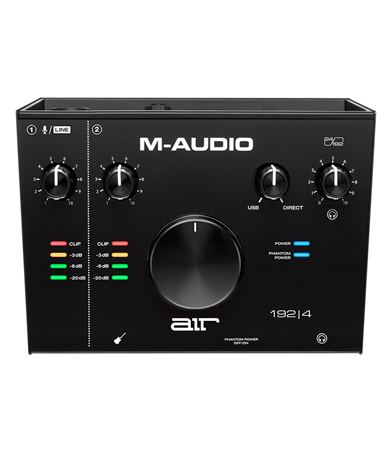

M-Audio AIR 192|4 Vocal Studio Pro

Studio Grade Production - Simplified!

Enter the world of studio-based recording with the AIR 192|4 Vocal Studio Pro-the ultimate all-in-one solution for computer recording projects. Combining the critically acclaimed AIR 192|4 interface, HDH40 headphones, a Nova Black condenser microphone, XLR cable and the premium AIR Series Software Suite, laying down vocal tracks, recording electric and acoustic instruments and adding voice-overs to multimedia projects has never been easier. With the AIR 192|4 Vocal Studio Pro, the combination of high-performance hardware and easy-to-use software results in pro-grade audio capture for every recording scenario.

We've included software to match your style!

The AIR 192|4 Vocal Studio Pro comes complete with a software package that has everything to get you started making professional recordings right out of the box. With 2 powerful DAWs to suit your production needs, AIR 192|4 Vocal Studio Pro includes Pro Tools | First M-Audio Edition, and Ableton Live Lite.

We've also added an entire Effects Plugin, Virtual Instruments and Loop package to cater to all your production needs. Whether you need a guitar tone, reverb, or delay we've got your effects needs covered with Eleven Lite, 20 effect plugins and AIR's Creative FX Collection. With the included AIR Virtual Instrument plugins, you'll have a virtual drum machine, synth, strings, percussion, organ and piano plugins to add world-class-sounding instruments to your songs with ease.

Key Features

  • 24-bit/192kHz resolution for professional recording and monitoring
  • Hi-Speed USB circuitry gives you the fastest connection, with a class-leading round trip latency of only 2.59ms*
  • Transparent Crystal™ preamps and ultra-pristine A/D converters for unsurpassed audio recording quality
  • VU LED meters for dialing in the perfect level
  • (1) XLR+¼" TRS combo input with dedicated signal circuit and (1) ¼" instrument input with dedicated signal circuit for the most accurate sound available
  • Stereo ¼" outs; ¼" headphone out with independent level control
  • Rugged metal chassis; large central control for easy volume adjustment
  • USB/Direct knob for balancing between the input signal and the computer signal
  • NOVA Black condenser microphone
  • HDH40 monitoring headphones
  • *Round trip latency is dependent on buffer settings, and computer hardware

Specifications

All specifications are measured at 20 kHz bandwidth. Specifications are subject to change without notice.

Minimum System Requirements

  • macOS: 10.8 Class Compliant
  • PC: Windows 7, Windows Driver
  • Standard USB 2.0 or USB-C Port

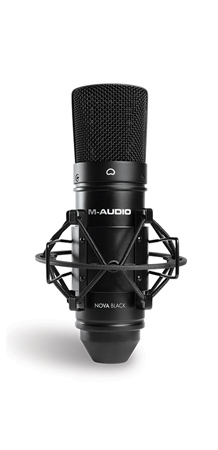

NOVA Black Microphone

  • TYPE Back Electret condenser microphone
  • ELEMENT 18 mm pure aluminum diaphragm capsule
  • POLAR PATTERN Cardioid
  • FREQUENCY RESPONSE 20 Hz - 20 kHz
  • SENSITIVITY -38 dB (0 dB = 1 V/Pa @ 1 kHz)
  • RATED IMPEDANCE 200Ω
  • MAXIMUM SPL 136 dB
  • PHANTOM POWER REQUIRED +48 V
  • S/N RATIO 77 dB
  • CURRENT CONSUMPTION 3 mA

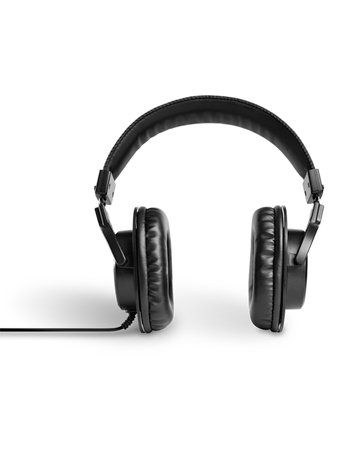

HDH40 Headphones

  • ACOUSTIC DESIGN Dynamic, Closed
  • DRIVER 40 mm, neodymium
  • FREQUENCY RESPONSE 15 Hz - 22 kHz
  • SENSITIVITY 95 dB ±3 dB
  • RATED IMPEDANCE 32Ω
  • EARPAD Leatherette
  • CABLE LENGTH 9.8 ft. / 3 m

Mic Input 1 (balanced XLR)

  • FREQUENCY RESPONSE 20 Hz - 20 kHz (+0.1 dB)
  • DYNAMIC RANGE 104 dB (A-weighted)
  • SIGNAL-TO-NOISE RATIO 104 dB (+1.0 dBu, A-weighted)
  • THD+N 0.003%
  • PREAMP EIN -128 dBu (max gain, 150 Ω source, A-weighted)
  • MAX INPUT LEVEL +1.5 dBu
  • GAIN RANGE 55 dB

Line Input 1 (balanced 1/4" [6.35 mm] TRS)

  • FREQUENCY RESPONSE 20 Hz - 20 kHz (+0.05 dB)
  • SIGNAL-TO-NOISE RATIO 101 dB (1 kHz, +4 dBu, A-weighted)
  • THD+N 0.003%
  • MAX INPUT LEVEL 16 dBu
  • GAIN RANGE 55 dB

Inst Input 2 (unbalanced 1/4" [6.35 mm] TS)

  • FREQUENCY RESPONSE 20 Hz - 20 kHz (+0.05 dB)
  • DYNAMIC RANGE 100 dB (A-weighted)
  • SIGNAL-TO-NOISE RATIO 102 dB (+ 4 dBu, A-weighted)
  • THD+N 0.004%
  • MAX INPUT LEVEL 6 dBu
  • INPUT IMPEDANCE 1 MΩ
  • GAIN RANGE 24 dB

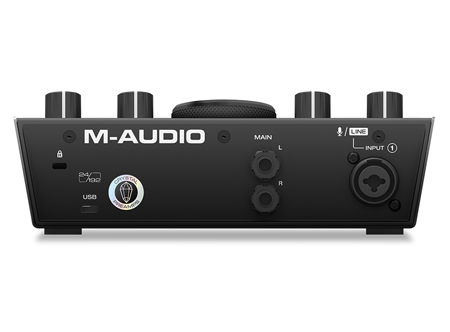

Main Outputs, L and R (impedance-balanced 1/4" [6.35 mm] TRS)

  • FREQUENCY RESPONSE 20 Hz - 20 kHz (+0.06 dB)
  • DYNAMIC RANGE / SIGNAL-TO-NOISE RATIO 102 dB (A-weighted)
  • THD+N 0.005%
  • MAX OUTPUT LEVEL +7 dBu (1 kHz, -1 dBFS)

Headphone Output (impedance-balanced 1/4" [6.35 mm] TRS)

  • THD+N 0.005%
  • OUTPUT IMPEDANCE 10 Ω

General

  • POWER USB-bus-powered
  • DIMENSIONS (WIDTH X DEPTH X HEIGHT) 8.0" x 6.0" x 2.76" (20.42 cm x 15.24 cm x 7.0 cm)
  • WEIGHT 2.0 lbs. 0.9 kg

What's In The Box

  • AIR 192|4
  • USB-C-to-USB-C Cable
  • USB-C-to-USB-A Cable
  • NOVA Black Microphone
  • Microphone Carrying Pouch

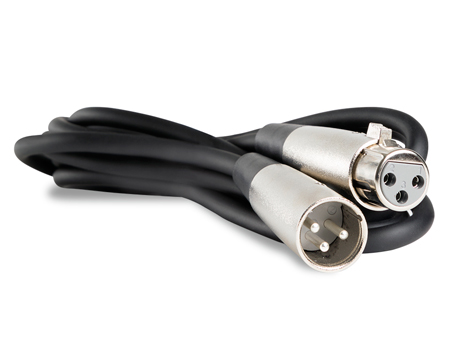

  • XLR Microphone Cable
  • Microphone Shock Mount
  • Microphone Windscreen
  • HDH40 Headphones
  • Software Download Cards
  • User Guide
  • Safety and Warranty Manual
