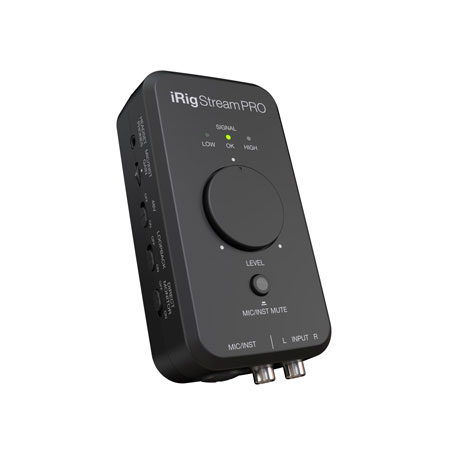

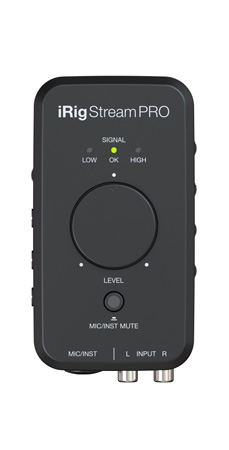

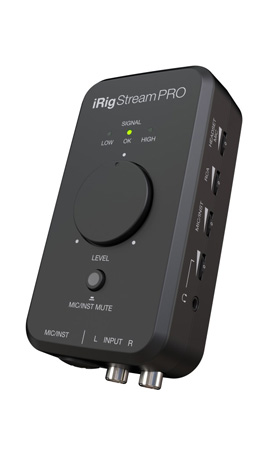

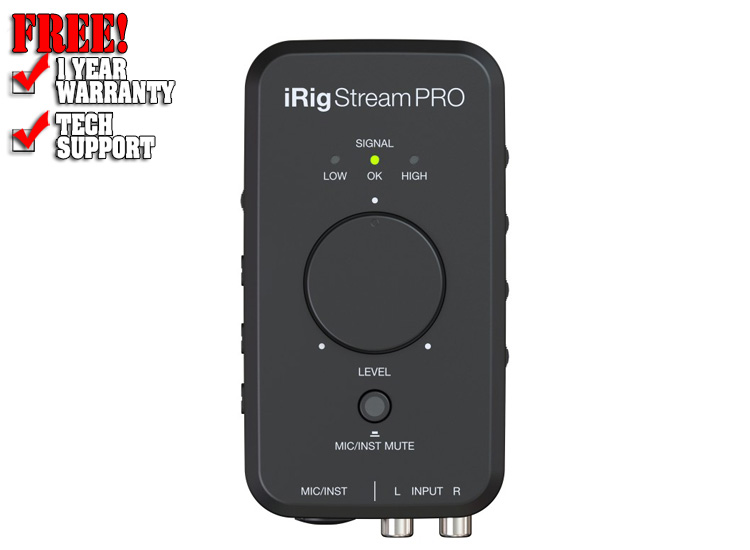

IK Multimedia iRig Stream Pro

iRig Stream Pro overview

• XLR / 1/4" combo input with +48V phantom power
• Stereo line input via RCA connectors
• Headphone out with integrated mic input
• 2nd headphone/line out for cameras, mixers and more
• Up to 96 kHz / 24-bit resolution for pro-level sound
• Pre-mixes audio sources to stereo or 4 separate channels
• Loopback+ lets you mix in audio or route from app to app
• Powered by 2 AA batteries, bus power or optional PSU
• Can power your device (with optional PSU)
• Works with all your favorite apps

Mix and stream up to 4 audio sources

iRig Stream Pro makes it easy to connect all your audio sources and route them to a streaming or recording app. Connect your favorite studio microphone or guitar via the XLR / 1/4" combo jack, mix in DJ decks or a keyboard via the stereo RCA inputs, then connect your earbuds to listen back and for a bonus mic/line input. You can even route in the output of your smartphone, tablet or laptop and sing or jam along.

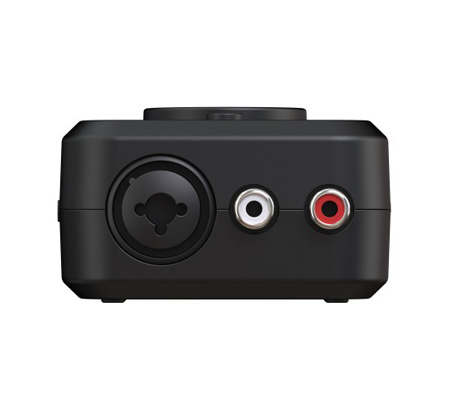

XLR / 1/4" combo input

This input offers a pristine mic preamp with true +48V phantom power to connect studio microphones with stunning sound, switching to Hi-Z for your favorite guitar or bass.

RCA stereo input

Connect a mixer, DJ decks, keyboards and more with this low-noise stereo input.

3.5mm TRRS input/headphone output

A unique headphone/microphone jack is wired just like your smartphone so you can listen and talk over the stereo input simultaneously. It works with most headphones with a built-in mic and also with IK products like iRig Mic Lav, iRig Mic, and iRig Pre 2, giving you a wide range of options for any situation.

Device Loopback

This option routes the audio output of your digital device (iPhone, iPad, Android, Mac or PC) back into iRig Stream Pro to be mixed in with the other audio signals. This is perfect to jam or sing along with backing tracks, or process audio on one app and stream to another, all on a single device.

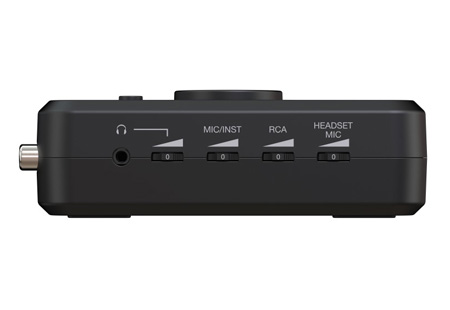

Each input has its own independent volume control and is then mixed down to your choice of stereo or 4 channels to stream, process or record into all your favorite apps.

• Pristine, professional sound - every time
• iRig Stream Pro offers 24-bit, 96 kHz A/D and D/A converters to ensure a clean, professional signal regardless of the platform.

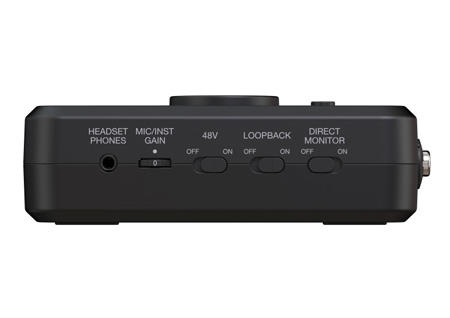

• An adjustable input gain and easy-to-read level indicators let you dial in the right sound level instantly.
• Switchable direct monitoring lets you audition your sound before going live, so you'll never have to ask your listeners how you sound again.
• Need to cough? A front-panel MUTE button instantly mutes the XLR / 1/4" input so you can duck out of your stream and re-join silently without disrupting the other inputs.

Stereo or multichannel? You get both!

iRig Stream Pro offers 2 modes: stereo or multichannel. By default, iRig Stream Pro operates in stereo mode and pre-mixes multiple sources of audio (RCA stereo inputs (+ Loopback), XLR / 1/4" combo input and TRRS microphone) down to a stereo track, which is sent to your choice of streaming apps like Instagram, Facebook, Twitch, etc.

Switching to multichannel mode, the combo and TRRS inputs are routed to channels 3 and 4 respectively giving you 4 channels of audio to send to recording apps such as GarageBand or your favorite DAW.

Pro results with Loopback+

Multichannel mode offers another advantage. Loopback+ is powerful new feature that lets you route either or both channels 3 and 4 to audio apps such as MixBox, AmpliTube or VocaLive for processing and then route their outputs through the Loopback feature and into channels 1+2 going to your streaming app.

Now you can actually use these apps on your iOS or Android device as a front-end processor for all streaming apps. It's like using them as a plug-in for more creative and professional-sounding streams.
