QSC KLA Line Array System

Overview

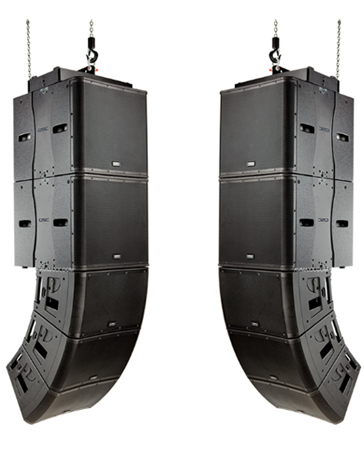

The KLA Line Array System brings the power and sophistication of a line array system into an easy-to-use product significantly redefining the line array product category. With its simple Lift, Click and Play approach, KLA can be deployed in a fraction of the time required by comparable line array products. This fixed arcuate, active line array system is ideal for a wide range of portable and permanently installed applications ranging from live entertainment to houses of worship or other venues where a line array system is desired.

QSC KLA 12 Features:

• 500 W x 500 W power module
• Rugged, ABS enclosure delivers light-weight durability
• SOLO™ Rigging System supports deployment without tools or external hardware
• Ar-Q™ Frequency Optimization quickly tunes the array with the click of a dial, adjusting for the appropriate number of boxes
• 10:1 design factor supports arrays of up to 480 lbs. (218 kg) 5x KLA12 and 2x KLA181
• 90° x 18° nominal coverage (requires only five boxes to configure a 90° x 90° array)
• High power, 12" low frequency driver provides extension down to 44Hz without subwoofers
• Extensive DSP further enhances and protects performance
• 1.75" diaphragm compression driver delivers clear and powerful high-frequency reproduction
• powerCON® Input and Thru connections
• Tilt-Direct™ pole mount assists directivity in single-unit applications

QSC KLA181 Features:

• 1,000 watt power module
• 18" vented subwoofer
• High acoustic output (135 dB SPL peak)
• Frequency range down to 33 Hz (-10 dB)
• Extensive DSP further enhances and protects performance
• powerCON® Input and Thru connections
• Threaded pole-cup receptacle for free-standing applications
• Suspension made possible via M10 fittings or KLA12AF Array Frame
• Integrated threaded pole mount supports up to two KLA12 enclosures
