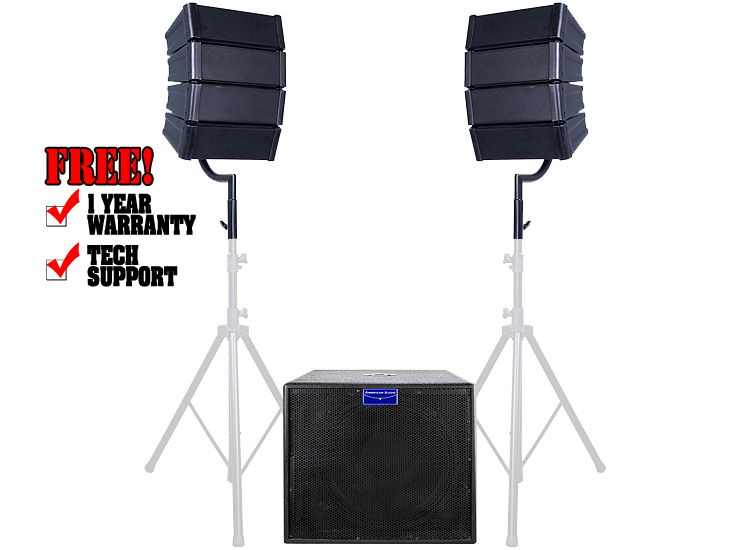

MRAY-4 System

ARRAY Style Speaker System Includes:

• 1 x Subwoofer with 3-Channel Amplifier

• 2 x Array Speakers

• 2 x Speaker brackets (Stands not included)


SPECIFICATIONS:

• 2 MIC inputs - Gain (1/4 inch)

• RCA Line input

• XLR Input/XLR Input

• XLR Output line for multiple units

• Adjustable high cut filter (80-200Hz)

• Sub Phase (0°- 180°)

• Sub woofer independent volume

• Low cut filter 22, 80, 125 (Sub only)

• Balance control EQ low

• +10/-10 2 band EG log + high

• Multi-voltage switch: 120V/60Hz or 230V/50Hz
• NL4 connection to speaker

• 00W RMS Sub @ 8 ohms
• 150W RMS x 2 speakers @ 8 ohms
• Signal, Clip and Protect LED indicators (x3)


SUBWOOFER:

• Casters for easy transport

• Built-in handles

• Ported sub

• Impedance: 8 ohms

• Frequency Response: 40Hz-800Hz

• Power Handling: 200W(RMS)/600W(Peak)

• Low Frequency: 15''(385mm), 2.5''(65mm)Voice coil

• Sensitivity: 100dB

• Dimensions: 21 x 25 x 18 in. / 514 x 635 x 458mm

• Weight: 110 lbs / 50kg


ARRAY SPEAKERS:

• Array style speakers

• NLA connectors

• Spring wire connectors

• 2 x 12 foot Neutrik cables

• 2 x Curve pole mount adapters with necessary hardware

• Impedance: 8 ohms

• Frequency Response: 120Hz-18kHz

• Power Handling: 200W(RMS)/600W(Peak)

• Sensitivity(1w/1m): LF 92dB/HF:102dB

• Nominal Coverage Angle(-6db): Horizontal: 60-degree /Vertical Splay: 20-degree

• Input Connectors: Speakon x2+Screw connect

• Low Frequency Driver: 5''(118mm), 1.0''(25.5mm) Voice coil x 4

• High Frequency Driver: 25mm voice coil, 1''(25mm) throat x 4

• Dimensions: 16 x 10 x 5.4 in. / 408 x 250 x 135mm

• Weight: 9 lbs / 4 kg.


3-Channel Amplifier:

• Output Power: 1 x Subwoofer: 450W (RMS) +2 x Arrays: 150W (RMS)

• Input Connectors: 2x LR

• Output Connectors: 2xLR+2 Speakon

• Controls: 2-Band EQ: Subwoofer, Level, Master
