JBL Pack 1

Overview

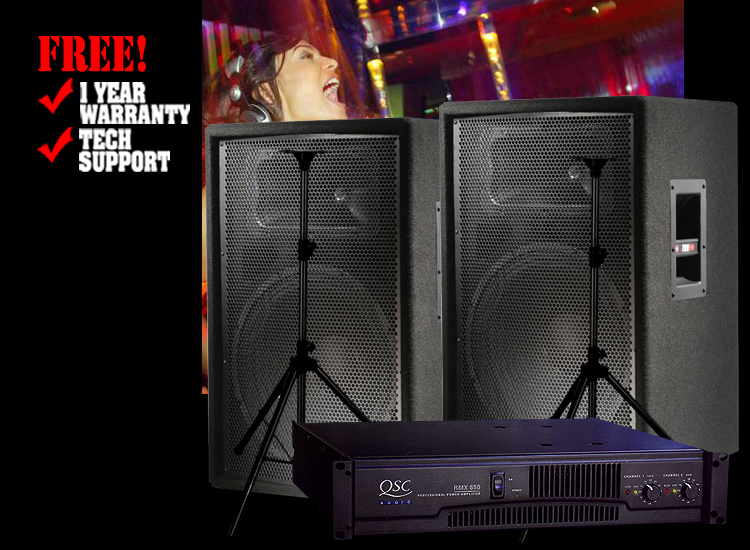

• Two JBL JRX-115 2 way loudspeakers
  • System Type: 15" 2-way, sound reinforcement speaker.
  • Sensitivity (1w/1m): 98 dB SPL
  • Nominal Impedance: 8
  • Peak Power Capacity:1 1000 watts
  • Maximum SPL: 128 dB
  • Nominal Dispersion: 90° x 50°
  • Crossover Frequency: 1.6 kHz
  • Dimensions (H x W x D):3 699 mm x 460 mm x 432 mm (27.5 in x 18.1 in x 17 in)
  • High Frequency Driver: JBL 2412, 1" exit compression driver mounted on Progressive
  • Transition™ Waveguide
  • Low Frequency Driver: JBL M115-8A
  • Input Connectors: Parallel Neutrik® Speakon® NL-4 (x1); ¼" TS phone jack (x1)
  • Enclosure Construction: 19 mm (¾ in) MDF (Medium Density Fiberboard); with glued and mechanically fastened joint detail; covered in black carpet.
  • Grille: 18-gauge, powder-coated steel
  • Mounting & Suspension: 35 mm, cast aluminum pole-mount socket
• One QSC RMX-850 amplifier
• All cables included
