JBL VRX928LA+VRX915S Bundle

JBL VRX928LA

The VRX928LA is a lightweight, compact 8" two-way line-array speaker system designed for use in arrays of up to six units. VRX928LA is the ideal choice when line-array performance is needed but the venue size doesn't call for the very long-throw characteristics of larger line-arrays such as JBL's VERTECor VRX932LA.

The Constant Curvature waveguide mounts two compression drivers on a continuous arc. When additional VRX928LA speakers are added to the array the uninterrupted arc continues. In effect, all the drivers work together as if they were a single driver on a very long waveguide. Since there are two HF drivers in each VRX928LA speaker, the combined power handling and acoustic output of the system is far greater than a single driver could achieve.

VRX928LA uses "amplitude shading" to shape the coverage of the array. Switches on the input plate allow, for example, the upper box in an array to reach the distant rear of a room while the lower box is shaded back to reduce excessive level at the front of the listening area.
One or two VRX928LAs may also be used on a tripod or over the VRX915S subwoofer. The integral rigging hardware is used to securely lock the array together.

As many as six VRX928LA speaker systems may be suspended in a single array for a nominal vertical coverage of up to 90°. Suspended applications require the JBL VRX928LA-SMAF array frame (available separately). For applications in which the array must be aimed sharply down, a second Array Frame may be installed to the bottom of the array serving as a pull-back.

Applications:

• Music playback and sound reinforcement in small to mid-size venues
• Entertainers, corporate A/V professionals and sound system hire companies
• Permanent installations

Specifications:

• Power Rating : Passive1600 W Peak; Bi-amp Low Frequency: 1600 W Peak; Bi-amp High Frequency: 120 W Peak
• JBL's exclusive neodymium magnet Differential Drive woofer for high power capacity and lightweight
• Two patent-pending neodymium HFcompression drivers
• Constant Curvature waveguide forunprecedented array coherence
• Fly combinations of VRX928LA and Subwoofers (VRX915S) with optional array frame (VRX-SMAF)
• Integral rigging hardware for simple connection of enclosures and optional array frame. Arrays of up to six enclosures may be flown
• Dual angle pole socket for aiming flexibility. One or two speakers may be mounted to a 35 mm pole or tripod stand
• Array Configuration Selector permits "array shading" in passive mode.
• Frequency Range: 70 Hz -20 kHz (-10 dB)
• Frequency Response: 87 Hz - 19 kHz (+/-3db)
• Coverage Pattern: 100 degree x 15 degree nominal (horizontal x vertical), single unit
• Crossover Modes: Bi-amp / passive, externally switchable
• Crossover Frequency: 2.0 kHz
• System Maximum SPL: Passive - 122 dB SPL peak; Low Frequency - 122 dB (bi-amp mode); HF - 128 dB (bi-amp mode)
• System Sensitivity (1w @ 1m: Passive - 90 dB SPL; Low Frequency: 90 dB (bi-amp mode)
• High Frequency: 108 dB (bi-amp mode)
• Low Frequency Driver: 1 x JBL 2168H-1, 8 in (200 mm) Differential Drive woofer
• High Frequency Driver: 2 x JBL 2414H, 1.0 in (25 mm) neodymium compression driver
• Nominal Impedance: Passive - 8 ohm; Bi-amp Low Frequency - 8 ohm; Bi-amp High Frequency: 16 ohm
• Active Tunings: Tunings available at www.jblpro.com
• Enclosure: .59" - .98" (15 mm - 25 mm), multi-ply birch plywood
• Suspension / Mounting: Dual 1.42" (36) mm pole socket included. (Suspension requires optional VRX-SMAF line array frame kit or M10 eyebolts.)
• Finish: Black DuraFlex finish
• Grille: Powder coated, black, 18 gauge perforated steel with acoustically 59 transparent black foam backing
• Input Connectors: Neutrik Speakon NL-4 (x2)
• Dimensions (H x W x D): 9.0 in x 16.5 in x 10.5 in
• Net Weight: 28 lb

JBL VRX915S Description

While intended for smaller venues than the VerTec series, the VRX915S is designed and built to the same high standards and uses the same advanced, concert-proven drivers. The VRX932LA delivers extraordinary power handling, clarity, flexibility and, of course, stunning JBL sound in an attractive, easy to handle and affordable package. The VRX915S is a perfect fit for medium-sized venues that don't want to sacrifice sound quality just because they're not as big as other professional facilities. For compact power, it's the VRX915S. Lightweight and built for smaller venues
The VRX915S is a compact, high power suspendable subwoofer system containing a 2265G-1 neodymium magnet, patented Differential Drive, 15" woofer in a front-loaded, vented enclosure. The VRX915S was designed specifically for use in arrays with the VRX928LA Line Array speaker and VRX-SMAF Array Frame. In addition it may also be used in arrays consisting entirely of VRX915S subwoofers.

Flexible mounting options
The system offers complete input connection flexibility for compatibility with a variety of cabling schemes. A recessed, external switch allows selection of either contacts +1/-1 or +2/-2 to be routed to the woofer. Equally at home in ground stacked applications, the VRX915S is equipped with a top-mounted, threaded, 20 mm socket that can receive the optional SS4-BK pole. This adjustable height pole can be used to mount speakers equipped with standard 36 mm pole sockets. The threaded socket minimizes buzzing and rattling and assures that the pole will be secure and straight.

Enclosure built for optimum performance
The enclosure is constructed of top quality birch plywood, coated in JBL's rugged DuraFlex finish and is heavily braced to maximize low frequency performance. The attractive CNC-machined, 16-gauge steel grille is internally lined with acoustically transparent foam to provide additional driver protection and give a very professional appearance. The rear of the enclosure is fitted with T-nuts which may be used to attach the optional WK-4 caster kit.

Specifications:

• Power Rating1: 3200 W Peak
• System Type: 15" bass reflex subwoofer

• Frequency Range (-10 dB): 35 Hz - 250 Hz

• Frequency Response (±3 dB): 40 Hz - 250 Hz

• Recommended Hi-Pass Filter: High-pass: Butterworth 24 dB/oct, 45 Hz

• Low-pass: Linkwitz-Riley 48 dB/oct, 80 - 120 Hz
• Maximum Peak SPL2: 126 dB SPL

• Sensitivity (1w @ 1m): 91 dB SPL

• LF Driver: 1 x JBL 2265G-1, 15 in Differential Drive woofer

• Nominal Impedance: 4 Ohms

• Active Tunings: Tunings available at www.jblpro.com

• Enclosure: 15 mm - 18 mm, multi ply birch plywood

• Suspension / Mounting: Top mounted M20 threaded socket for optional pole SS4-BK

• Integrated flying hardware for use with array frame VRX-SMAF 8 M10 fittings

• Transport: Integrated steel handle with backing cup

• Finish: Black DuraFlex finish

• Grille: Powder coated, black, 16 gauge perforated steel with acoustically transparent black foam backing.

• Input Connectors: Neutrik Speakon NL-4 (x2)

• Input connection modes: Switchable, +1/-1 or +2/-2

• Dimensions (H x W x D): 19.5 in x 16.5 in x 23.5 in

• Net Weight: 57 lb
• PDF Manual

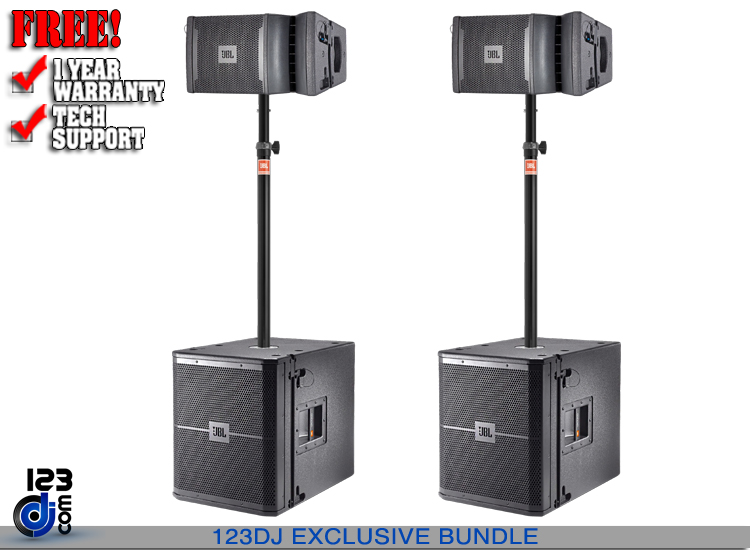

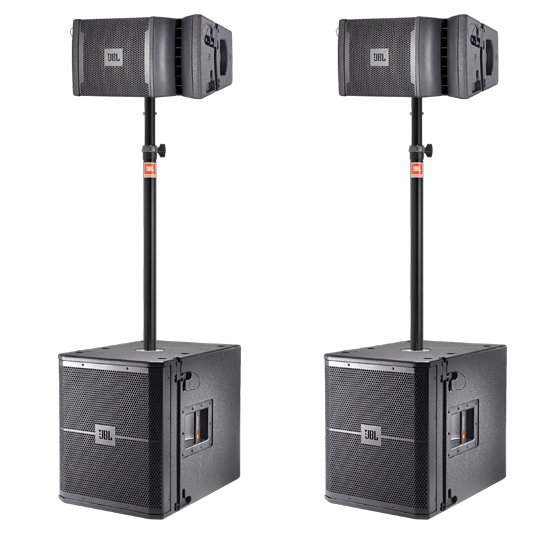

This Package Includes:

• (2) JBL VRX928LA
• (2) JBL VRX915S
• (2) JBL Speaker Pole (Manual Assist)
