JBL EON712 Powered Speaker Package

Indexed feet molded into enclosures, enable a range of acoustic configurations and secure stacking for traditional stand-up configurations and convenient storage and transport. (Companion EON718S subwoofers feature a threaded pole mount for full-range speakers and are easily stacked for cardioid configurations.)

Rugged and Reliable

All audio products have useful lives, and JBL engineers are committed to making that lifespan as long as possible—not only in terms of reliability, but in terms of how good the system sounds, every time it's turned on.

The EON712 is housed in an FEA-optimized composite enclosure, taking advantage of injection-molding and mechanical-shaping techniques for added durability without sacrificing cabinet size or performance. Computer-optimized ergonomic handles make moving boxes a breeze.

Like every JBL Professional product, the EON712 undergoes stringent testing that goes above and beyond any conditions the product would face in the real world. Our industry-leading 100-hour power test ensures longevity so musicians and audio engineers can rely on JBL components in any scenario.

Features:

• Custom-designed 12-inch woofer
• 2414H compression driver
• Redesigned high-frequency horn
• Power: 1,300W Peak / 650W RMS
• Frequency response: 50 Hz–20 kHz (-10 dB); 60 Hz–20 kHz (-3 dB)
• Max SPL: 127 dB
• Dispersion: 100° H x 60° V
• Audio I/Os: 2 XLR Combo, 1 XLR passthrough
• Advanced dbx DSP: Automatic Feedback Suppression, ducking, 100ms speaker delay, parametric EQ
• Built-in 3-channel digital mixer
• Backlit color LCD screen provides easy access to functions
• Universal JBL Pro Connect app control
• Bluetooth 5.0 streaming and control
• Durable polypropylene cabinet and metal grille
• Two ergonomic handles simplify transport
• Built-in pole mount and optional EON700 Universal Yoke Mount expand system configuration options
• Stackable cabinets allow easy storage
• Dimensions: 26.3 x 15 x 12.75 in (669 x 382 x 324 mm) (HxWxD)
• Weight: 32 pounds (14.5 kg)
• Shipping dimensions: 27.8 x 19.64 x 17.28 in (706 x 499 x 439 mm) (HxWxD)
• Shipping weight: 40.1 pounds (18.2 kg)

Specifications:

• System Type : 12IN Powered Loudspeaker
• Woofer Model : 712G
• Woofer Size : 12"
• Woofer Magnet : Ferrite
• Woofer Voice Coil : 2"
• Tweeter Model : 2414H Compression Driver
• Tweeter Size : 1"
• Tweeter Magnet : Neodymium
• Transducer Impedence : LF 4ohm rated, HF 8ohm rated
• Max SPL : 127dB @1m/4Pi
• Freq Range -10 : 50Hz - 20kHz
• Freq Range -3 : 60Hz - 20kHz
• Hor Dispersion : 100°
• Vert Dispersion : 60°
• Power Rating : 1300W peak / 650 RMS
• AC power input : 100V-120V or 220V-240V
• Cooling : Passive
• LED indicators : 1 Power LED, 1 Limit LED, 1 Front LED, 2 Signal/SSM LEDs
• Input Impedance : 50k/100k un-balanced/balanced
• Input Gain : -8to +36db
• Crossover Frequency : 2 kHz
• I/O : 2 XLR Combo Jacks / BT, 1 XLR M Thru
• Cabinet : PP+10% Talc
• Grille : 16GA perforated steel with acoustically transparent black cloth backing
• Suspension / Mounting : 4 M10 Suspension points, 36mm Pole Socket, universal yoke bracket holes
• Handles : 1, cable channel on bottom
• Net Weight : 12kg (26.46 lbs.)
• Gross Weight : 15.2kg (33.51 lbs.)
• Product Dims : HxWxL 587x332x305mm (23.11x13.07x12 in.)
• Shipping Dims : HxWxL 606x439x407mm (23.86x17.28x16.02 in.)

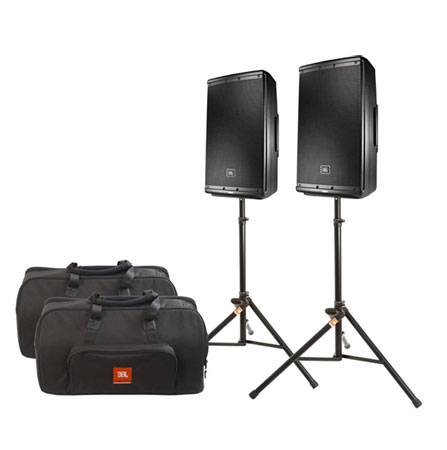

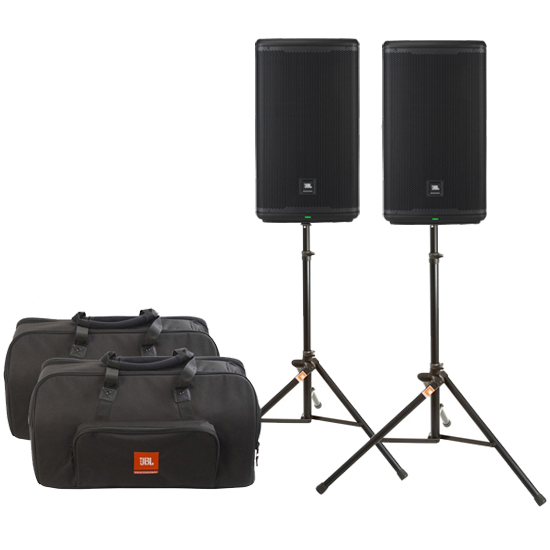

This Package Includes

• (2) JBL EON712
• (2) Speaker Stands
• (2) Bags
