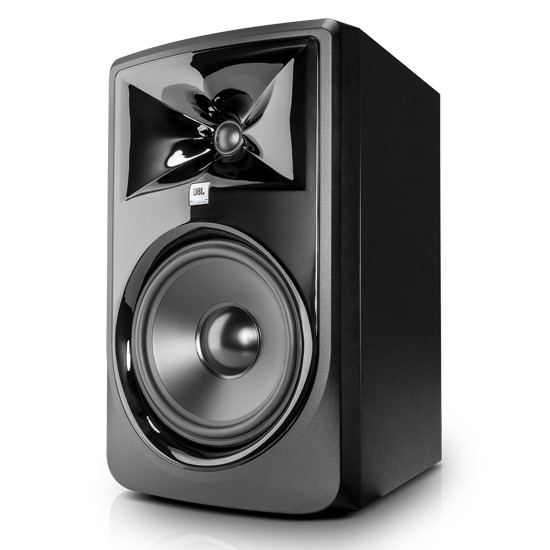

The next-generation JBL 306P MkII powered studio monitor makes legendary JBL performance available to every studio. With the revolutionary JBL Image Control Waveguide and refined transducers, JBL 306P MkII offers stunning detail, precise imaging, a wide sweet spot and impressive dynamic range that enhances the mix capabilities of any modern workspace. Leveraging patented technologies derived from the JBL 7 Series and M2 Master Reference Monitors and sporting a sleek, modern design, JBL 306P MkII delivers outstanding performance and an enjoyable mix experience at an accessible price.FEATURES
Since their release, word has spread on the quality and value found in the original JBL 3 Series, resulting in wide adoption from hobbyists to high-end professionals working in music, film, post, and broadcast production worldwide. With such an obvious hit, you might ask, "Why update now?" On every project at JBL, there's always a handful of features or improvements that the engineering team can't squeeze in before going to production. 3 Series was no different. When the opportunity presented itself, we decided to make those final improvements to the transducers, add a frequently-requested feature, and apply the latest manufacturing learnings. The result—a new edition of this popular studio monitor that retains the best qualities of the original, but now looks better, sounds better, and provides transparent sound in even more production environments.
Patented Image Control Waveguide
Reveal impressive detail, ambience and depth in your mixes thanks to the groundbreaking JBL Image Control Waveguide. Originally developed for JBL's flagship M2 Master Reference Monitor, this patented innovation ensures an acoustically seamless transition between the low- and high-frequency transducers and provides an immersive soundstage with precise imaging. Offering a broad sweet spot and neutral frequency response, JBL 306P MkII delivers a crystal-clear representation of your mix—revealing subtle details, even when listening off-axis.
Your Mix is Only as Good as Your Monitors
To help you make the best mix decisions, JBL equipped the 306P MkII with acclaimed 3 Series transducers that now perform even better. Hear deep, accurate and tightly controlled bass thanks to a long-throw 6.5" woofer and the patented JBL Slip Stream™ low-frequency port. Enjoy soaring, immaculately detailed highs via the woven-composite 1" Neodymium tweeter. JBL engineers took things to the next level with faster HF transient response through fine-tuned ferrofluid damping, and greater low frequency linearity and lower harmonic distortion courtesy of an enhanced woofer design. The result is a studio monitor you can trust—with unmatched peak handling, stunning dynamics and neutral frequency response that's unbeatable in its class.
Big Sound Out of the Box
JBL 306P MkII is ready for the most demanding production styles right out of the box. Dual integrated Class D power amplifiers, custom designed by JBL for each transducer, give you generous dynamic range for any project. From music production and podcasting to cinematic sound design or daily vlogging, enjoy the output and power you need to hear exceptional detail at any volume—even at peak SPLs. Simply plug in, power on, and start creating.
Tailored Sound to Fit Your Studio
The dimensions and acoustics of a room can have a major effect on sonic accuracy, and that's why JBL 306P MkII lets you adjust the response to fit your studio. The new Boundary EQ attenuates the low-end boost that can occur when you place monitors directly on the desktop or near walls. The 3-position HF Trim switch allows you to adjust the high-frequency response of the 306P MkII to tailor it to room acoustics or personal tastes.
Offering both balanced XLR and 1/4" TRS inputs, and adjustable +4dBu/-10dBV input sensitivity, the 306P MkII offers flexible, professional connectivity options to provide easy setup while maintaining your signal integrity.
70 Years of Expertise
The design of the 306P MkII leverages over 70 years of JBL acoustic expertise to create a refined studio monitor at an outstanding value. While other manufacturers use off-the-shelf components and make subjective decisions about the sound, JBL builds speakers that squeeze every ounce of performance from each component to deliver efficient, accurate sound reproduction. 306P MkII is designed to JBL's Linear Spatial Reference criteria—a series of 72 individual measurements taken 360 degrees around the speaker to ensure a faithful reproduction of your mix, whatever your listening environment.
JBL Professional Reliability
JBL Professional studio monitors are designed for reliable performance, even when projects push your gear to the limit. Before being approved for production, 3 Series monitors must first pass JBL's strenuous Power Test. Each model is required to perform flawlessly at maximum volume for an unheard-of 100 hours—without failure. As a result, you can depend on 306P MkII monitors to deliver consistently excellent sound reproduction for years to come.
|LF DRIVER SIZE||165mm (6.5")|
|HF DRIVER SIZE||25mm (1")|
|HF DRIVER TYPE||Soft dome|
|CROSSOVER||1425Hz 4th order acoustic Linkwitz-Riley|
|OK FOR USE NEAR MAGNETICALLY SENSITIVE EQUIPMENT||Yes|
|INPUT SENSITIVITY (-10dBV INPUT)||92dB / 1m|
|HF DRIVER POWER AMP||56W, Class-D|
|LF DRIVER POWER AMP||56W, Class-D|
|FREQUENCY RESPONSE (±3dB)||47Hz – 20kHz|
|FREQUENCY RANGE (-10dB)||39Hz – 24kHz|
|LOW FREQUENCY EXTENSION (-10dB)||39Hz|
|MAXIMUM CONTINUOUS SPL||92dB|
|MAXIMUM PEAK SPL||110dB|
|MAXIMUM PEAK INPUT LEVEL (-10dBV / +4dBu)||+6dBV / +20.3dBu|
|SYSTEM DISTORTION CRITERIA||<10% THD at maximum output with full compressor / limiter engagement|
|ELECTRICAL DISTORTION CRITERIA||0.2% THD @ 1kHz / 2.83VRMS output; <1% THD @ 1kHz, full rated output|
|SIGNAL TO NOISE RATIO||75dBA (A-Weighted), 70dBr (unweighted), relative to 2.83VRMS output|
|COVERAGE HORIZONTAL x VERTICAL||120° x 90°|
|ANALOG INPUT TYPES||1 x XLR female, 1 x TRS female, balanced|
|HF TRIM CONTROL||-2dB, 0dB, +2dB|
|BOUNDARY EQ||LF Shelf @ 50Hz: -3dB, -1.5dB, 0dB|
|AC INPUT VOLTAGE||100 – 240VAC (±10%), 50 / 60Hz|
|ENCLOSURE CONSTRUCTION||15mm MDF|
|ENCLOSURE FINISH||Matte black PVC|
|BAFFLE CONSTRUCTION||Injection-molded structural ABS|
|CABINET DIMENSIONS (H x W x D)||361 x 224 x 282mm (14.2" x 8.8" x 11.1")|
|DISPLAY CARTON (H x W x D)||408 x 285 x 328mm (16.1" x 11.2" x 12.9")|
|SHIPPING CARTON (H x W x D)||418 x 292 x 338mm (16.5" x 11.5" x 13.3")|
|NET WEIGHT||6.1 kg (13.42 lbs)|
|SHIPPING GROSS WEIGHT||7.25 kg (15.95 lbs)|

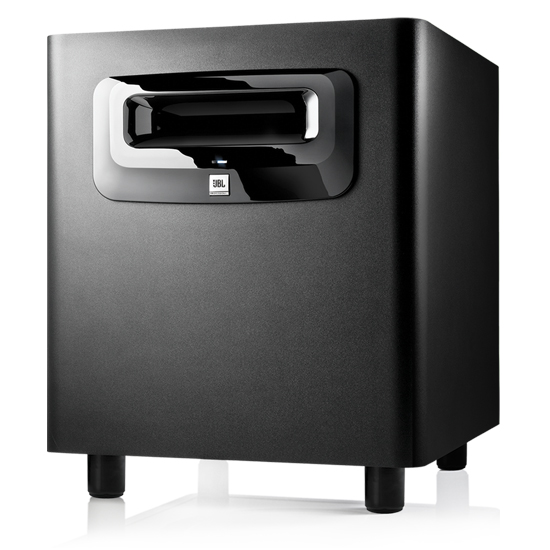

Extend your system LF all the way down! The LSR310S subwoofer incorporates JBL's patented Slip Stream Port working in concert with a custom 10" down-firing driver and a 200 Watt amplifier to add deep, powerful bass to any studio monitor system. A JBL first, the XLF Extended Low Frequency setting lets you hear your tracks with the augmented bass tuning used in today's dance clubs.
JBL Patented Slip Stream Port
This patented JBL port design works in concert with the LSR310S low frequency driver for deep, dynamic bass response at all playback levels. The double-flared shape of the port is precisely calculated to optimize low-frequency extension.
XLF Extended Low Frequency Setting
A JBL first, the XLF setting activates a specially-engineered tuning that emulates the ample bass tuning used in today's dance clubs. When producing a dance track, the XLF setting will inspire you and bring a bit of the club to your control from. For inspiration to the max, position the LSR310S in the nearest corner of your room and activate the XLF setting.
Custom 10" Down-Firing High Excursion Low Frequency Driver
JBL Transducers are legendary for their performance. The custom-designed driver in the LSR310S exemplifies JBL engineering prowess, delivering deep low frequency response into the 20 Hz region, and 113 dB peak output, for long periods at full rated power with no risk of failure.
Professional Balanced Inputs and Outputs
With balanced XLR and 1/4" inputs and XLR outpus you can add the LSR310S to any studio monitor system to extend its low frequency performance or use it as the ".1" LFE Channel in a surround sound system.
Selectable Input Sensitivity
The -10dBV/+4 dBu sensitivity switch ensures compatibility with a broad range of signal sources, allowing you to connect the LSR310S to high-output professional equipment without any danger of input overload.
Three Crossover Settings
The 80 Hz setting is recommended for use with the LSR305, LSR308 or any studio monitors. The External setting allows use of an outboard crossover.
Simple and effective, the LSR310S volume control has detents that make it easy to balance the LSR310S in your studio monitor system.
