Electro-Voice ZLX-12BT 12" & ZXA1-Sub Package

What is in the Box?

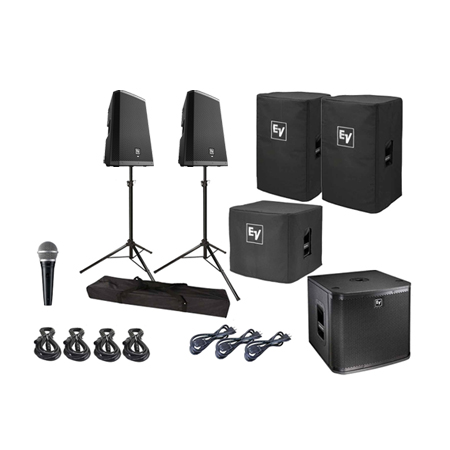

The ZLX12PSub1Pack Package Includes:

• (2) Electro-Voice ZLX-12BT 12" Powered Loudspeaker with Bluetooth
• (1) Electro-Voice ZXA1-Sub 12" Powered Subwoofer
• (2) Electro-Voice ZLX-12BT Protective Speaker Covers [ZLX-12-CVR]
• (1) Electro-Voice ZXA1 Padded Subwoofer Cover [ZXA1-SUB-CVR]
• (3) 20FT XLR Connecting Cables
• (3) Black 10FT 16 Gauge AC Extension Cords
• (2) Ultimate Support JS-TS50-2 – Pair of Tripod Speaker Stands
• (1) Durable Carry Bag (For the TS-100B speaker stands)
• (1) Shure PGA48-XLR Cardioid Dynamic Vocal Microphone

Each Electro-Voice ZLX-12BT Box Includes:

• (1) Electro-Voice ZLX-12BT 12" Two-Way Powered PA Loudspeaker
• (1) Power Cord
• (1) User Guide

The Electro-Voice ZXA1-Sub Box Includes:

• (1) Electro-Voice ZXA1-Sub 12" Powered Subwoofer
• (1) Power Cord
• (1) User Guide

The PGA48-XLR Box Includes:

• (1) Shure PGA48 Cardioid Dynamic Vocal Microphone
• (1) Microphone Clip
• (1) Zipper Carry Pouch
• (1) XLR-to-XLR Cable
• (1) User Guide

Electro Voice ZLX-12BT

12" Powered Loudspeaker with Bluetooth® Audio*

High-quality Bluetooth® audio streaming for background music or musical accompaniment.

QuickSmartDSP features best-in-class processing. Easy setup via four presets, sub/top system-match, two-band EQ, five user-programmable presets, visual monitoring of limiter status, input level control and meters, and master volume control to optimize gain structure, all via LCD.

High-efficiency 1000 W Class-D power amplifier delivers up to 126 dB peak SPL utilizing transducers designed and engineered by EV.

EV-patented Signal Synchronized Transducers (SST) waveguide design provides precise and consistent coverage, minimal distortion, and maximized acoustical loading.

Three optimally located handles combined with a rugged composite structure provides the most portable professional sound speaker on the market.

NOW STREAMING: Electro-Voice ZLX best-selling speaker family adds Bluetooth audio streaming models

ZLX portable loudspeakers offer the best performance and reliability in their class - with components and engineering that work together to make it quicker and easier than ever to take control of your sound, whatever the gig. Now with Bluetooth® enabled wireless audio streaming, legendary ZLX performance becomes even more convenient with the ability to connect to any mobile device for streaming your music library.

Featuring custom drivers housed in an innovative cabinet design, the two new wireless, compact, and versatile ZLX models make EV's renowned sound quality and rugged reliability more accessible than ever before.

Specification

• Frequency Response (-3 dB)1 65 Hz - 18 kHz
• Frequency Range (-10 dB) 50 Hz - 20 kHz
• Maximum SPL2 126 dB
• Coverage (H x V) 90° x 60°
• Power Rating 1000 W
• LF Transducer EVS-12K, 300 mm (12 in) woofer
• HF Transducer DH-1K
• Connectors (2) XLR/TRS Combo Jack (1) 3.5 mm Input and (1) XLR link Output
• Enclosure Polypropylene
• Grille 18 Gauge steel with black powder coat
• Color Black
• Dimensions (H x W x D) 610 mm x 356 mm x 356 mm (24 in x 14 in x 14 in)
• Net Weight 15.6 kg (34.3 lb)
• Shipping Weight 19.0 kg (41.8 lb)
• Power Consumption3 100 - 240 V~, 50 - 60 Hz, 0.8 - 0.5 A

Electro-Voice ZXA1-Sub 12" Powered Subwoofer

Extending the ZXA1's size-defying performance and sleek styling into the low-end realm, the ZXA1-Sub packs 700 W of self-powered punch into a low-profile wood enclosure. Match ZXA1 with ZXA1-Sub and hear just how big a small rig can sound, whether you want to add a tight thump to a DJ set or give the highs and mids some breathing room in a live performance.

Electro-Voice ZXA1-Sub Features:

• Integrated 800 watt power amplifier
• Bi-amplified design with transducer protection
• EV8L 8" high-output LF transducer
• Dh3005 1" exit true compression driver
• 90° x 50° coverage pattern
• Rotatable horn design
• 126 dB maximum SPL
• Selectable high-pass filter for use with subwoofers
• Line and microphone inputs
• Integral monitor angle on enclosure
• Built-in pole mount
• Lightweight (< 20 lbs) with integral handle for easy carrying

Ultimate Support JS-TS50-2 – Pair of Tripod Speaker Stands with FREE Carry Bag

Speaker stands need to be both sturdy and easy to move. The Speaker Stand (Pair) fits on both accounts, giving you a stable environment in which to elevate your speakers to optimum height. Crafted from aluminum and powder-coated for finish durability, these stands will give you years of service. Each stand can hold up to 120 lbs. The strong telescoping and leg collars provide a stable stand for your speakers. The height adjustment collar has a safety pin for extra security. The JS-TS50-2 also includes a handy carry bag for FREE!

JS-TS50-2 Features:

• Part Name: JS-TS50-2
• Long-lasting aluminum construction
• Durable powder-coated finish
• Tripod base is very stable and sturdy
• Stand is height-adjustable
• Carrying bag included for FREE!
• Holds up to 120 lbs.
• Height 46.5" – 81.5"

Shure PGA48 Cardioid Dynamic Vocal Microphone

The PGA48 is a professional quality vocal microphone with an updated industrial design that features a black metallic finish and classic silver ball grille. Legendary Shure quality construction ensures exceptional performance in rigorous environments.

Shure PGA48 Features:

• Tailored cartridge design for clear reproduction of speech.
• Handheld microphone for spoken word and karaoke performance.
• Dynamic cartridge (does not require phantom power) with cardioid polar pattern.

Specifications

Electro-Voice ZLX-12BT Specifications

• Frequency Range 50 Hz – 20 kHz
• Maximum SPL 126 dB
• Power Rating 1000 W
• Frequency Response 65 Hz – 18 kHz
• Coverage (Nominal -6 dB) H 90 °
• Coverage (Nominal -6 dB) V 60 °
• LF Transducer EVS-12K, 300 mm (12 in) Woofer
• HF Transducer DH-1K
• Connector Type (2) XLR/TRS Combo Jack, (1) 3.5 mm Input, and (1) XLR link Output
• Enclosure Material Polypropylene
• Grill 18 Gauge Steel with Black Powder Coat
• Height 610 mm (24.02")
• Width 356 mm (14.02")
• Depth 356 mm (14.02")
• Weight Net 15.6 kg (34.39 lbs)
• Shipping Weight 19 kg (41.89 lbs)
• Electro-Voice ZXA1-Sub 12" Powered Subwoofer
• Amplifier Power 800 Watts (RMS)
• Color Black
• Coverage (Nominal -6 dB) Omnidirectional
• Input Connections (2) XLR Stereo Input, (2) XLR Stereo Output
• Power Requirement 120V: 90V-132v, 1.0 A, 50-60Hz 230V: 190V-264V, 0.6A, 50-60Hz
• Speaker Type Powered Subwoofer
• Frequency Response (-3 dB) 53–93 Hz Half Space
• Frequency Response (-10 dB) 44–118 Hz Half Space
• Max. SPL/1m (calc) 126 dB Half Space
• System Power Handling (Continuous/Program/Peak) 700 Watts
• LF Transducer (1) EVS-12S, 305mm (12") Woofer
• Crossover Frequency 100 Hz
• Enclosure Material 9-ply, 15mm Plywood, Internally Braced, with Textured Paint
• Outdoor No
• Grill 16GA Steel with Black Powdercoat
• Height 400 mm (15.75")
• Width 444.5 mm (17.5")
• Depth 457.2 mm (18")
• Weight Net 20.9 kg (46.08 lbs)
• Shipping Weight 26.5 kg (58.42 lbs)

Shure PGA48 Specifications

• Frequency Response 70–15,000 Hz
• Phantom power required? No
• Polar Pattern Cardioid
• Type Dynamic
