Electro-Voice ETX-15P 15" Powered Speaker & Subwoofer Duo Package

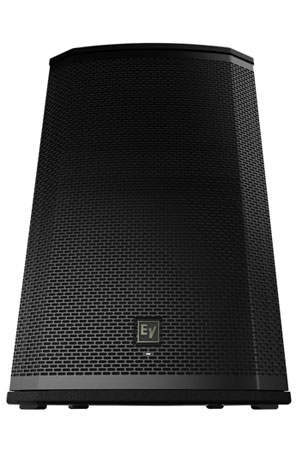

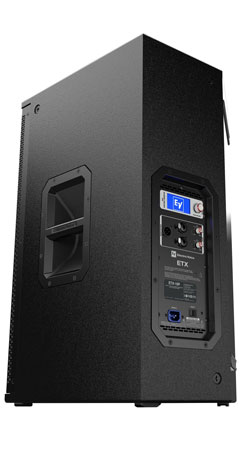

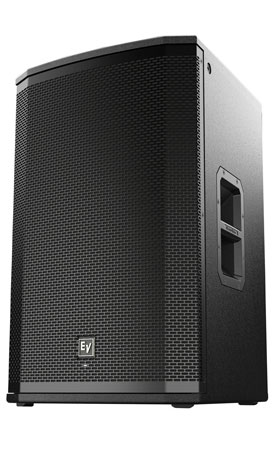

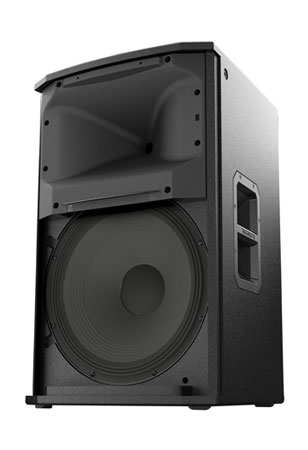

Electro-Voice ETX-15P 15" Two Way Powered Loudspeaker

Inside each low-profile, tour-grade wood enclosure are a range of unique new features that set ETX apart, combining intelligent technology and innovative industrial design for spectacular results across all applications. EV-engineered high-efficiency transducers and high-powered Class-D amplifiers, Signal Synchronized Transducers (SST) waveguide design and smart FIR-Drive DSP all work together to provide peerless EV sound quality and precise coverage at the highest SPLs.

Electro-Voice ETX-15P Features

• 15-inch LF SMX woofer
• 1.25-inch HF titanium compression driver
• 2000 W Class-D power amplifier with integrated FIR-Drive DSP
• 135 dB peak SPL

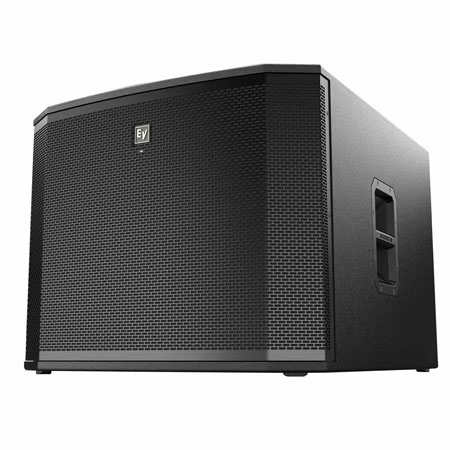

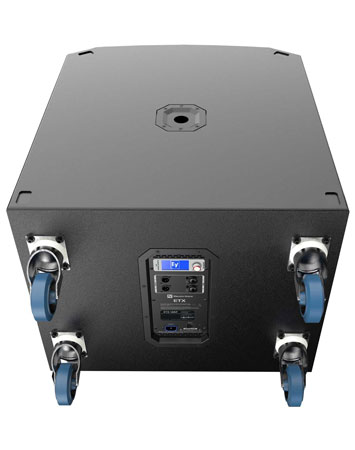

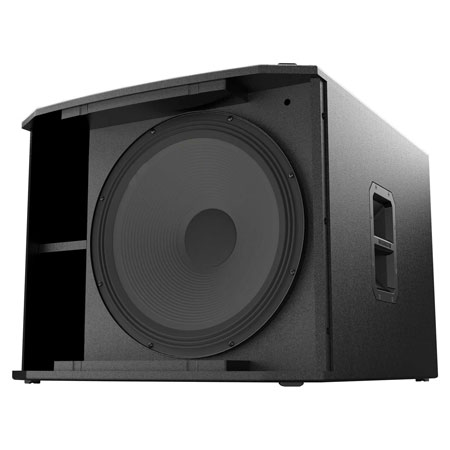

Electro-Voice ETX-18SP 18" Powered Subwoofer

Inside each low-profile, tour-grade wood enclosure are a range of unique new features that set ETX apart, combining intelligent technology and innovative industrial design for spectacular results across all applications. EV-engineered high-efficiency transducers and high-powered Class-D amplifiers, Signal Synchronized Transducers (SST) waveguide design and smart FIR-Drive DSP all work together to provide peerless EV sound quality and precise coverage at the highest SPLs.

Electro-Voice ETX-18SP Features:

• 18-inch DVX woofer for extended low-frequency response
• 1800 W Class-D power amplifier with integrated FIR-Drive DSP
• 135 dB peak SPL
• Combo pole cup (insert and threaded)

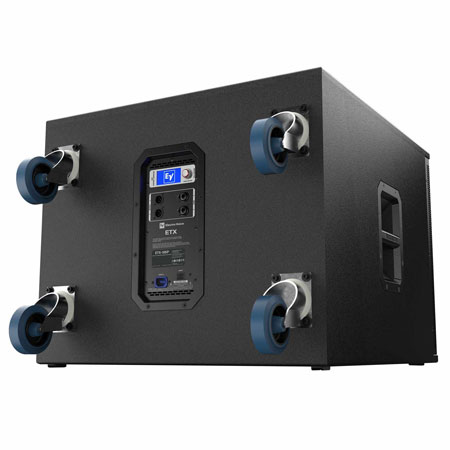

• Removable casters
• Special DSP preset for true cardioid performance across the full operating bandwidth

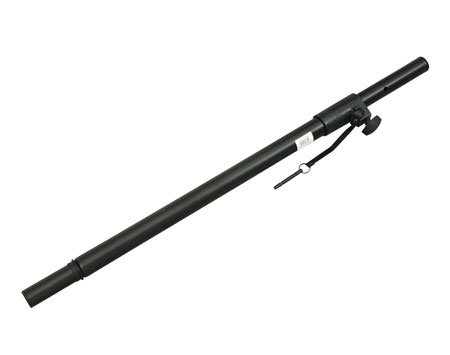

Electro-Voice ASP-1 Height Adjustable Steel Subwoofer Stand

• 914.4mm to 1524 mm (36 in to 60 in).
• 36.3kg (80lbs) maximum weight capacity.
• black powdercoat finish.

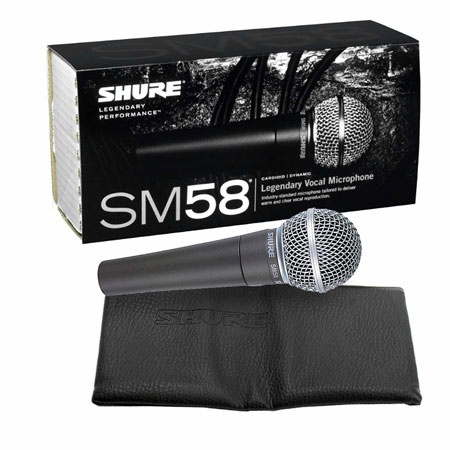

Shure SM58 Vocal Microphone

Legendary vocal microphone, tuned to accentuate the warmth and clarity of lead and back-up vocals.

The legendary Shure SM58 vocal microphone is designed for professional vocal use in live performance, sound reinforcement, and studio recording. Its tailored vocal response for sound is a world standard for singing or speech. A highly effective, built-in spherical filter minimizes wind and breath "pop" noise. A unidirectional (cardioid) pickup pattern isolates the main sound source while minimizing unwanted background noise.

Rugged construction, a proven shock-mount system, and a steel mesh grille ensure that even with rough handling, the SM58 will perform consistently, outdoors or indoors.

SM58 Features:

• Frequency response tailored for vocals, with brightened midrange & bass rolloff
• Pneumatic shock-mount system cuts down handling noise
• Effective, built-in spherical wind and pop filter
• Supplied with break-resistant stand adapter which rotates 180 degrees
• Legendary Shure quality, ruggedness and reliability
• Cardioid (unidirectional) dynamic
• Frequency response: 50 to 15,000 Hz
• Replacement cartridge: R59
• Uniform cardioid pickup pattern isolates the main sound source and minimizes background noise

Technical Specification:

Electro-Voice ETX-15P Specifications

• Frequency Range 40 Hz – 20 kHz
• Maximum SPL 135 dB peak dB
• Power Consumption 100 – 240 V~, 50 – 60 Hz, 1.6 – 0.8 A
• Power Rating 2000 W
• Frequency Response 48 Hz – 20 kHz
• Coverage (Nominal -6 dB) H 90 °
• Coverage (Nominal -6 dB) V 60 °
• LF Transducer SMX2150 380 mm (15 in)
• HF Transducer DH3-B 1.25-in titanium compression driver
• Crossover Frequency 1500 Hz
• Connector Type (2) XLR/TRS combo jack and (1) XLR link output
• Enclosure Material 18-mm, 13-ply birch plywood with EVCoat
• Grill 16AWG steel with powdercoat
• Suspension (8) M10 suspension points
• Height 691 mm (27.2")
• Width 431 mm (16.97")
• Depth 447 mm (17.6")
• Weight Net 27.7 kg (61.07 lbs)
• Shipping Weight 31.5 kg (69.45 lbs)

Electro-Voice ETX-18SP Specifications

• Frequency Range 28 Hz – 180 Hz
• Low Pass Frequency Adjustable: 80 Hz, 100 Hz, 120 Hz, 150 Hz
• Maximum SPL 135 dB peak dB
• Power Consumption 100 – 240 V~, 50 – 60 Hz, 1.6 – 0.8 A
• Power Rating 1800 W
• Frequency Response 33 Hz – 150 Hz
• LF Transducer DVX3180A 457 mm (18 in)
• Connector Type (2) XLR/TRS Combo Jack and (2) XLR link Output
• Height 550 mm (21.65")
• Width 675 mm (26.57")
• Depth 910 mm (35.83")
• Weight Net 51.8 kg (114.2 lbs)
• Shipping Weight 58.9 kg (129.85 lbs)

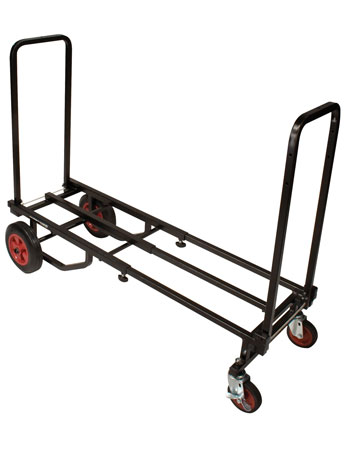

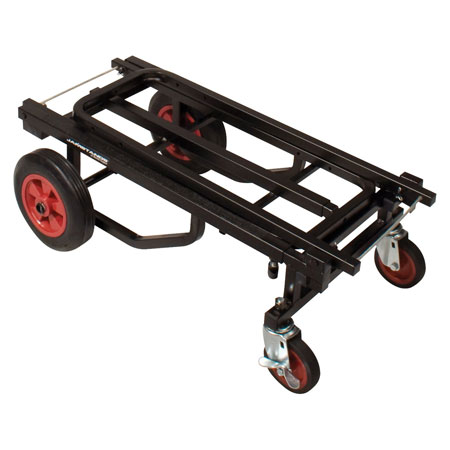

Ultimate Support JS-KC90 Specifications

• Product Name: JS-KC90
• Part Number: 17436
• Capacity: 300 lbs. (136 kg)
• Configurations: 8 Variations
• Finish: Powder Coat, Black
• Length: 27.5" - 44.25" (699mm - 1124mm)
• Width: 17" (432mm)
• Height: 24" (610mm)
• Weight: 26 lbs. (11.8 kg)

Shure SM58 Specifications

• Type Dynamic (moving coil)
• Frequency Response 50 to 15.000 Hz
• Polar Pattern Unidirectional (cardioid), rotationally symmetrical about microphone axis, uniform with frequency

WHAT'S IN THE BOX

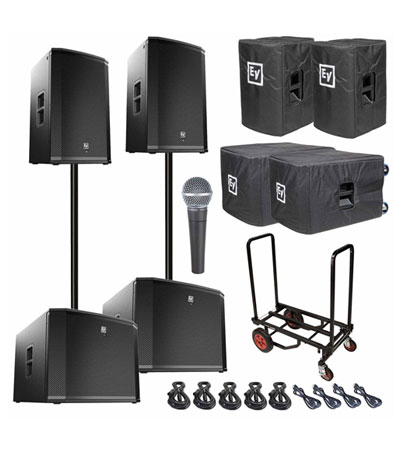

The ETX15PSub2Pack Package Includes:

• (2) Electro-Voice ETX-15P 15" Two Way Powered Loudspeakers

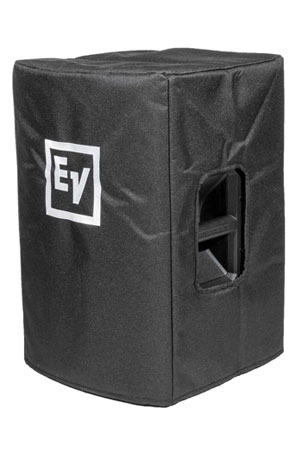

• (2) Electro-Voice ETX-15P Padded Speaker Covers [ETX-15P-CVR]
• (2) Electro-Voice ETX-18SP 18" Powered Subwoofer

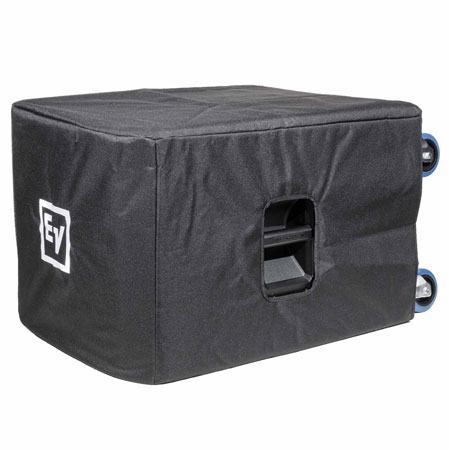

• (2) Electro-Voice ETX-18SP Padded Subwoofer Cover [ETX-18SP-CVR]
• (5) 20FT Sure-Fit XLR Connecting Cables
• (4) Black 10FT 16 Gauge AC Extension Cords
• (2) Electro-Voice ASP-1 Height Adjustable Steel Subwoofer Stands
• (1) Ultimate Support JS-KC90 Karma Cart Series Adjustable Professional Equipment Cart
• (1) Shure SM58 Vocal Microphone

Each Electro-Voice ETX-12P Box Includes:

• (1) Electro-Voice ETX-12P Powered Loudspeaker
• (1) Power Cord
• (1) Owner's Manual

Each Electro-Voice ETX-18SP Box Includes:

• (1) Electro-Voice ETX-18SP 18" Powered Subwoofer
• (1) Power Cord
• (1) User Guide

The Ultimate Support JS-KC90 Box Includes:

• (1) Ultimate Support JS-KC90 Karma Cart

The Shure SM58 Box Includes:

• (1) Shure SM58 Vocal Microphone
• (1) Swivel Stand Adapter
• (1) Storage Bag
• (1) Microphone Clip
• (1) User Guide
