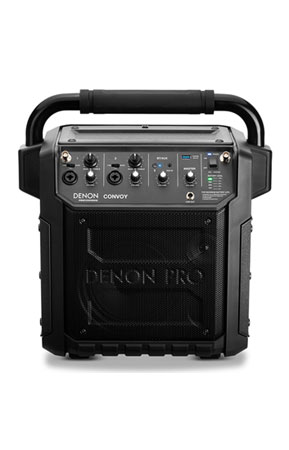

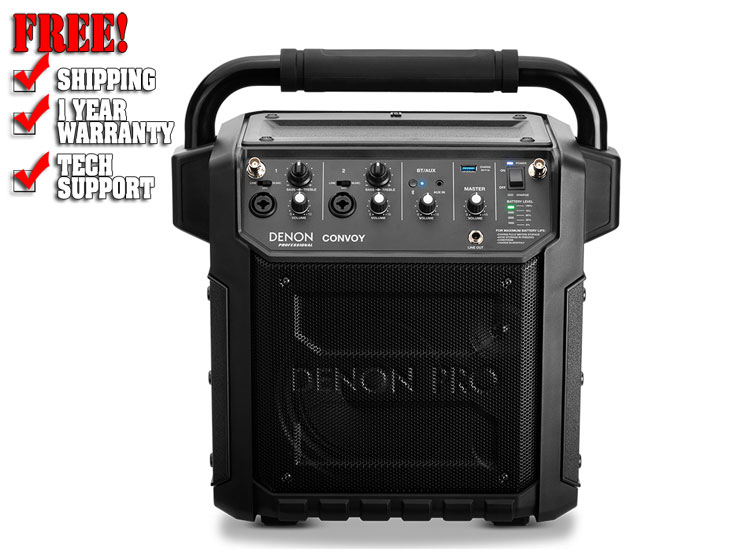

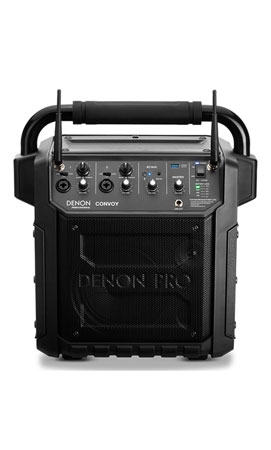

Denon Convoy

Professional Mobile PA / Diversity RF System / Bluetooth® Technology

The Denon Professional Convoy expands on the line of Denon powered speakers with a small, compact model designed for portabiity, and features the added flexibility of a two-channel, UHF diversity wireless system for presentations and other applications requiring two microphones. The Convoy also employs Bluetooth® technology for content playback from any Bluetooth-enabled device.

Features:

• Portable self-powered PA system
• 40 watts (RMS) drives high-quality 6.5-inch woofer, 2-inch tweeter
• Two Wireless Diversity UHF channels with included handheld microphones
• Two Line/Mic channel with XLR/1/4" (6.35 mm) combo input
• Streams music wirelessly from any Bluetooth-enabled device
• NFC pairing and 1/8" stereo line input
• Built-in rechargeable battery delivers up to 50 hours continuous use
• USB charging port for phone, tablet or other device
• Rugged design with built-in top handle for easy transport

Specification:

• Output Power: 80W peak

Drivers

• Low-frequency: 6.5" (165mm) woofer
• High-frequency: 2.0" (51mm) tweeter
• Frequency Response: 90 Hz - 20 kHz

Connectors

• (2) Line/Mic channels with XLR-1/4" (6.35mm) TRS combination input
• (1) 1/8" (3.5mm) TRS/stereo AUX input
• (1) 1/4" (6.35mm) line output
• (1) IEC AC power connection with Mains fuse
• Charge Port: USB +5 V, 1 A

Controls

• (2) Volume controls for Line/Mic/Wireless Mic channels
• (2) Line/Mic/Wireless Mic selectors
• (1) Volume control for Bluetooth and AUX channels
• (1) Master volume
• (1) Bluetooth pairing button
• (1) power on/off switch
• Indicators: Power on, battery level, Bluetooth pairing status

Wireless Specifications

• System Type: Dual-channel diversity UHF
• Analog/Digital: Analog
• Frequency Range: 584 - 594.85 MHz
• Operating Range: 100 ft (31m) line-of-sight
• Channel Selection: Manual
• Form Factor: Handheld
• Type: Dynamic
• Polar Pattern: Cardioid
• Frequency Response: 50 Hz - 15 kHz
• Battery Type: 2 x AA
• Battery Life: Up to (14) hours

Bluetooth Specifications

• Profile: A2DP, AVRCP
• Range: Up to 100 ft (31m) *
• Connections: Manual pairing or NFC

Battery

• Type: 12 V, 5.0 Ah SLA
• Life: Up to (50) hours **

Power

• Connection: IEC
• Voltage: 100 - 240 VAC, 50/60 Hz
• AC Voltage Input/Fuse: 100, 110 - 120, 220 - 240 / T2AL AC250V

Dimensions (height x width x depth): 16.5" x 15.7" x 9.4" (420 x 398 x 238mm)
• Weight: 20.4 lbs (9.27 kg)
• *Bluetooth and wireless reception and range are affected by walls, obstructions and movement. For optimal performance, place the product in the center of the room so it is unobstructed by walls, furniture, etc.
• **Battery life may vary based on temperature, age, and volume usage of product.
