DAS Audio Event 26a & 115a Line Array System

Line Array System, Designed to deliver stunning performance!

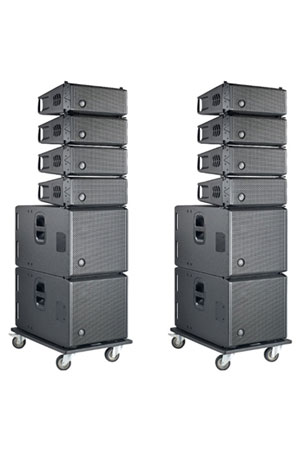

The DAS Audio Event 26a & DAS 115a Line Array System Consist of 8 D.A.S Audio Event 26A Tops & 4 D.A.S Audio Event 115a Subs. Guaranteed Quick deployment, High-efficiency Audio and User Friendly System configuration!

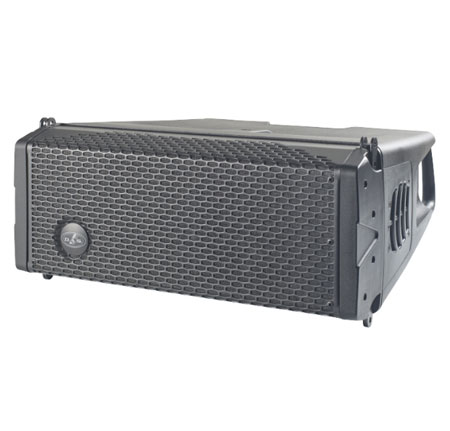

The EVENT-26A is a symmetrical, ultra-compact, two-way powered line array system. Designed by DAS engineers to deliver stunning performance and exceptional ease-of-use, the stylish polypropylene cabinet design makes this performance speaker system highly portable and road-worthy. A comprehensive range of accessories makes the EVENT-26A ideal for small to mid-size rental and installation applications.

The EVENT-26A combines two 6.5 Inch transducers and a single M-60 compression driver in a rugged yet lightweight polymer cabinet. The symmetric "V" shaped configuration of the cone transducers provides consistent 100º of horizontal coverage down to 200 Hz. The M-60 compression driver is coupled to an advanced waveguide design that provides control of the vertical dispersion as well as precise coupling between units when used in vertical arrays.

Powered by a two-channel Class D amplifier providing 800 Wpeak power, the amp´s rear panel includes quality Neutrik® XLR and powerCON connectors. The DAScontrolTM interface makes the preset selection for the number of units in the array both fast and simple. An onboard DSP featuring a 24-bit high-end processor handles X-over, EQ, delay, and limiter functions. The powerful FIR filtering technology incorporated in the EVENT-26A offers constant phase response which translates to transparent sound and exceptional clarity, improving the listening experience.

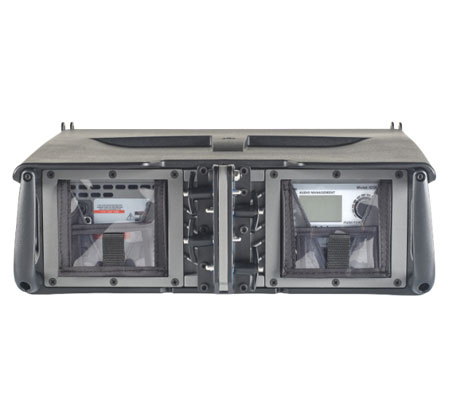

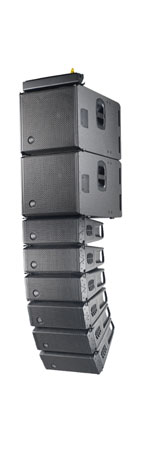

Streamlined deployment of EVENT-26A arrays is possible thanks to the innovative FSSTM (Fast Set Splay) rigging system developed to permit angle selection while stacked on dollies. The stainless-steel rigging hardware allows flown arrays of up to 16 units in 1º steps from 0º to 10º.

Low-frequency reinforcement for the EVENT-26A is provided by its flyable companion subwoofer the EVENT-115A.

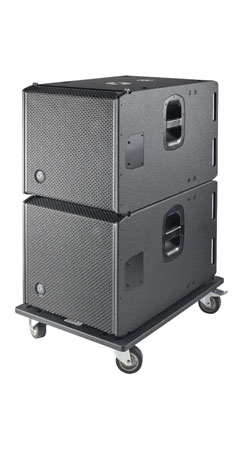

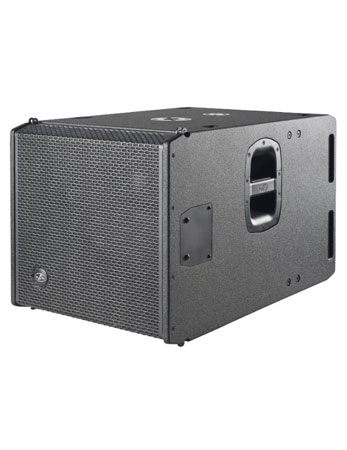

The DAS 115A is a compact powered subwoofer system which uses a front-loaded 15" low frequency transducer developed by DAS. Designed as the companion subwoofer for the EVENT-26A, they share a compatible rigging system which allows the EVENT-26A to be flown from or stacked above the DAS 115A.

The 15FW4 15 Inch loudspeaker used in the DAS 115A has been engineered by DAS to provide outstanding performance and reliability. The 15FW4 speaker design has been optimized using Finite Element Analysis (FEA) and incorporates an extended 3 Inch voice coil for high-efficiency and long excursion offering a power handling capacity of 1200 Wprogram. Efficient cooling is assured thanks to the 15FW4´s vented pole piece and abundant apertures in the speaker´s back plate keeping power compression to a minimum while providing high acoustic output over extended periods.

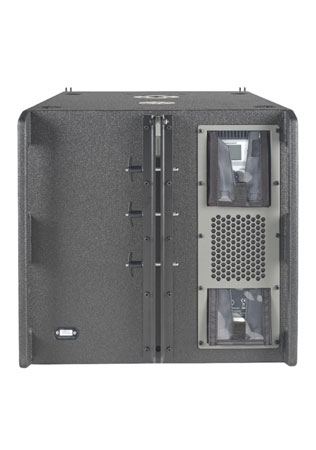

Driving the DAS 15FW4 loudspeaker is a cutting-edge 1200 Wpeak Class D amplifier. On the rear panel, quality Neutrik® XLR input connectors and stereo "loop thru" output connections are available to provide signal for the EVENT-26A systems. Thanks to the digital presets accessible by way of the DAScontrol™ interface on the rear of the cabinet, set-up of a complete systems is extremely easy.

The DAS 115A cabinet is constructed from Birch plywood using a robust enclosure design and finished with the DAS ISO-flex protective coating for extended durability. The rigging hardware is compatible with the EVENT-26A allowing it to be flown directly below or stacked above the subwoofer unit. A top located pole mount socket is available allowing the EVENT-26A to be used in a combo configuration.

Features:

Event 26a

• Ultra-compact, lightweight powered line array
• High-efficiency Class D amplifier with SMPS
• Dual voltage mains for use anywhere in the world
• Easy system configuration thanks to DAScontrolTM
• High-end 24-bit DSP with LCD screen
• FIR processing for constant phase response
• FSSTM Fast Set Splay rigging for quick deployment

Event 115a

• Active front-loaded subwoofer system
• 1 x 15 Inch DAS 15FW4 loudspeaker
• High-efficiency Class D amplifier with SMPS
• Dual voltage mains for use anywhere in the world
• Easy system configuration thanks to DAScontrolTM
• High-end 24-bit DSP with LCD screen
• EVENT-26A compatible rigging hardware

Applications

• House of worship
• Theatres, auditoria and performing arts centers
• Live music clubs
• Corporate A/V
• Live sound touring/Rental services

Specification:

Event 26a

• Frequency Range (-10 dB) 76 Hz – 19 kHz
• Horizontal Coverage (-6 dB) 100º
• Vertical Coverage Splay Dependent
• Maximum Peak SPL at 1 m 131 dB
• Electronics and Connectors
• Nominal Amplifier Power (continuous) 400 W
• Nominal Amplifier Power (peak) 800 W
• Input Type Balanced
• Input Impeadance 20 kohms
• Input Sensitivity 6.2 V (+18 dBu)
• Audio Signal Input Connector 1 x Female XLR
• Audio Signal Loop Thru Connector 1 x Male XLR
• AC Input Connector powerCON NAC3MPA
• AC Output Connector powerCON NAC3MPB
• Operating Range 90-127/180-250 VAC
• Current Draw 115 V 1.6 A
• Current Draw 230 V 0.8 A
• Enclosure
• Enclosure Construction Polypropylene
• Enclosure Geometry Trapezoidal
• Rigging Captive Rigging System
• Color Black
• IP Rating IP43
• Dimensions ( H x W x D ) 225 x 480 x 485 mm
• 8,9 x 18,9 x 19,1 in
• Net Weight 16,5 kg ( 36,4 lb )
• Components
• LF Driver 6MI
• HF Driver M-60

Event 115-A Sub

• Frequency Range (-10 dB) 40 Hz – 125 Hz
• Maximum Peak SPL at 1 m 131 dB
• Electronics and Connectors
• Nominal Amplifier Power (continuous) 600 W
• Nominal Amplifier Power (peak) 1200 W
• Input Type Balanced
• Input Impeadance 20 kohms
• Input Sensitivity 1.95 V (+8 dBu)
• Audio Signal Input Connector 2 x Female XLR
• Audio Signal Loop Thru Connector 2 x Male XLR
• Control DAScontrol™
• AC Input Connector powerCON NAC3MPA
• AC Output Connector powerCON NAC3MPB
• Operating Range 90-250 VAC
• Current Draw 115 V 2.8 A
• Current Draw 230 V 1.4 A
• Enclosure
• Enclosure Construction Birch Plywood
• Enclosure Geometry Rectangular
• Rigging Captive Rigging System
• Finish ISO-flex Paint
• Color Black
• IP Rating IP43
• Dimensions ( H x W x D ) 481 x 485 x 770 mm
• 18,9 x 19,1 x 30,3 in
• Net Weight 37,0 kg ( 81,5 lb )
• Components
• LF Driver 15FW4
• Shipping
• Carton Dimensions ( H x W x D ) 530 x 550 x 860 mm
• 20,9 x 21,7 x 33,9 in
• Shipping Weight 40,5 kg ( 89,1 lb )
