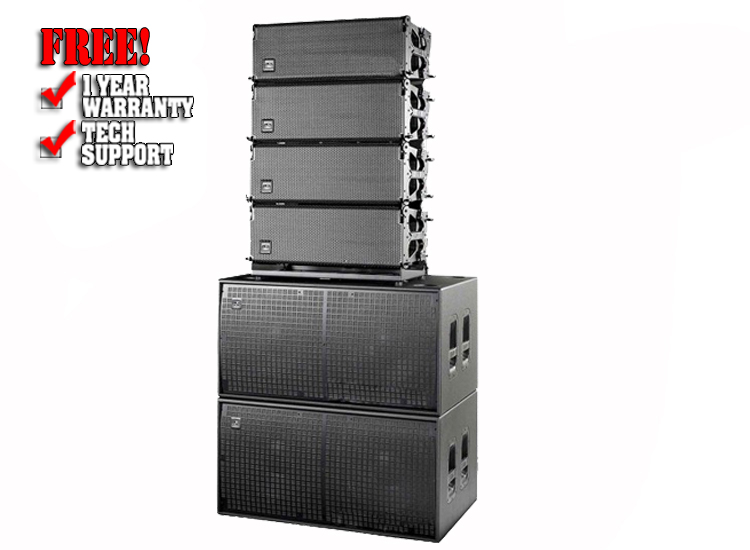

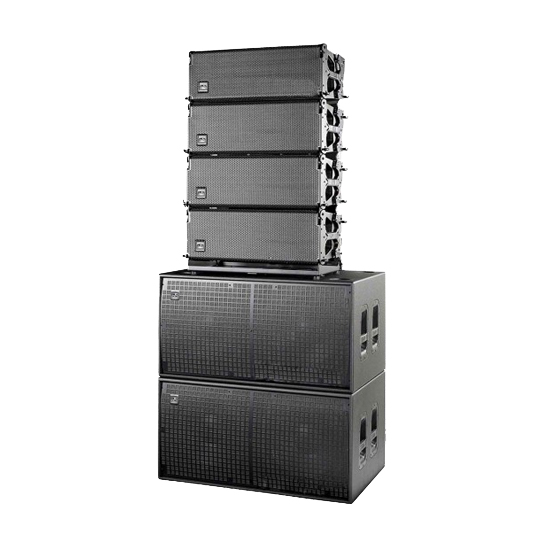

DAS Audio Event 208 218 Pack

Includes:

• 4 DAS Audio Event 208a
• 2 DAS Audio Event 218a
• 2 DAS Audio AXS Bracket
• 4 ilumenatrix DATA/Jumper Cables
• 1 ilumenatrix Cover For Event 208a
• 1 ilumenatrix Cover For Event 218a
• 1 ilumenatrix Dolly For Event 218a

DAS Event-208A Overview

The Event 208A Line is a three-way powered line array in a double 8" configuration. The D.A.S. loudspeaker units have been teamed up with a single M-75 compression driver and purpose-designed injected aluminum high frequency waveguide. The Event 208A line array is powered by a three channel Class D amplifier which provides 360 Wpeak per channel. The amp?s rear panel includes quality Neutrik® XLR and powerCON connectors, status LEDS to facilitate setup and D.A.S.'s Easy-DSP™ interface which simplifies preset selection for the number of units and throw depth.

DAS Event 208A Features:

• Powered 3-way system.
• Light-weight Class D amplifier topology.
• High-end DSP chipsets.
• Easy-DSP™ Interface.
• Quality Neutrik® connectors.
• Top grade Birch cabinet construction.
• Durable ISO-flex finish.
• Robust "quick-rig" professional rigging hardware.
• Proprietary injected aluminium HF waveguide (not plastic).
• D.A.S. M-75 compression driver and cone transducers

DAS Event 218A Dual 18" Powered Subwoofer

The Event 218A dual 18" powered subwoofer makes use of one of D.A.S.'s most acclaimed loudspeakers, the LX series long excursion transducers which were introduced in the high-level LX-218. The enclosure is designed for horizontal use, built using quality Birch plywood, finished with the ISO-flex coating and has a pole mount socket on the upper panel.

The power amplifier provides 3600 Wpeak power and offers features found on the more expensive LX subwoofers such as the Cardioid Preset mode switch which offers specific signal treatment for easy set-up of pairs of systems in cardioid subwoofer applications. The system includes two balanced inputs (A-B) with stereo HPF (100 Hz) filtered output connections for satellite systems. Defeating the HPF filter offers stereo "loop thru" connections. The variable LPF crossover ranges from 80 Hz-125 Hz. A gain control and polarity reverse feature increase user control over the system.

Event 218A Features:

• Powered high performance subwoofer system.
• 3600 Wpeak Class "D" amplifier.
• Two 18LX loudspeakers with 4" voice coils.
• Front loaded bass-reflex configuration.
• Durable ISO-flex finish.

Technical specification

DAS Event 208A Specifications

• Nominal HF Amplifier Power 360 Wpeak
• Nominal MF Amplifier Power 360 Wpeak
• LF Amplifier Power 360 Wpeak
• Range (-10 dB) 75 Hz -20 kHz
• Rated Peak SPL at 1 m 132 dB
• Horizontal Coverage (-6 dB) 90° Nominal
• Vertical Coverage Splay Dependent
• Enclosure Material Birch Plywood
• Color/Finish Black ISO-flex Paint
• Connectors INPUT: Female XLR
• LOOP THRU: Male XLR
• AC INPUT: powerCON
• AC OUTPUT: powerCON
• AC Requirements 115 V, 2.4A, 50 Hz/60 Hz
• 230 V, 1.2A, 50 Hz/60 Hz
• Dimensions (H x W x D) 27 x 67 x 36.6 cm
• 10.6 x 26.4 x 14.4 in
• Weight 30 kg (66 lb)

DAS Event 218A Specifications

• Nominal LF Amplifier Power 3600 Wpeak-1800 Wcontinuous
• Frequency Range (-10 dB) 32 Hz - 125 Hz
• Rated Peak SPL at 1 m 140 dB
• Internal Crossover 100 Hz
• Connectors IN: Female XLR
• LOOP THRU: Male XLR
• AC IN:powerCON
• AC OUT: powerCON
• AC Requirements 6. 0A, 115 V, 50 Hz/60 Hz
• 3.0 A, 230 V, 50 Hz/60 Hz
• Enclosure Material Birch Plywood
• Color/Finish Black ISO-flex Paint
• Dimensions (H x W x D) 54 x 106 x 67 cm
• 21.3 x 41.7 x 26.4 in
• Weight 70 kg (154 lb)
