Alto TX315 750-WATT 12-INCH 2-WAY POWERED LOUDSPEAKER Pair with MG10XU Mixer pack

Alto TX315 750-WATT 12-INCH 2-WAY POWERED LOUDSPEAKER Pair with MG10XU Mixer pack

Regular Price $1597.99

Our Price $798.99

WARRANTY SPECIAL
TWO YEAR FULL WARRANTY. ONLY $27.5 A YEAR FOR FULL PIECE OF MIND. ENJOY YOUR EQUIPMENT WITHOUT WORRY. PLAY WITH IT AND IF ANYTHING IS WRONG, IT WILL BE FIXED. Details

Regular Price $99.99

Full Protection Only $55.00

Regular Price $1597.99

Our Price $798.99
WARRANTY SPECIAL
TWO YEAR FULL WARRANTY. ONLY $27.5 A YEAR FOR FULL PIECE OF MIND. ENJOY YOUR EQUIPMENT WITHOUT WORRY. PLAY WITH IT AND IF ANYTHING IS WRONG, IT WILL BE FIXED. Details

Regular Price $99.99

Full Protection Only $55.00

We'll beat any price!

Alto TX315 750-WATT 12-INCH 2-WAY POWERED LOUDSPEAKER Pair with MG06X Mixer

Alto TX315 750-WATT 12-INCH 2-WAY POWERED LOUDSPEAKER

Features:

  • 700 Watts peak (350 Watts continuous) Class D power
  • The 90 H x 60 V horn delivers greater coverage
  • The full grille delivers style and provides protection for your investment.
  • 15-inch (381 mm) LF driver, 2-inch (51 mm) voice coil
  • 1-inch (25.4 mm) titanium HF compression driver
  • Lightweight, portable design for main or wedge monitor operation
  • Standard speaker pole socket
  • Bi-amplified design with precision active crossover and EQ
  • Balanced XLR Mic/Line input, Link Output and Volume control
  • Integrated analog limiter and overload protection circuitry
  • Contour switch with low- and high-frequency +3dB boost
  • Ground-lift switch removes unwanted hum or buzz
  • Designed and tuned in the USA

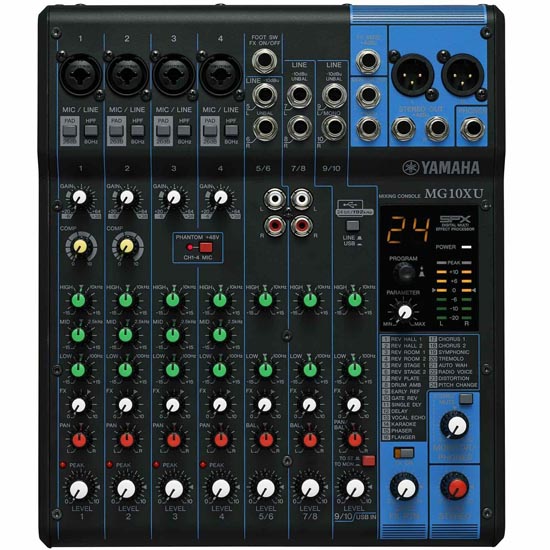

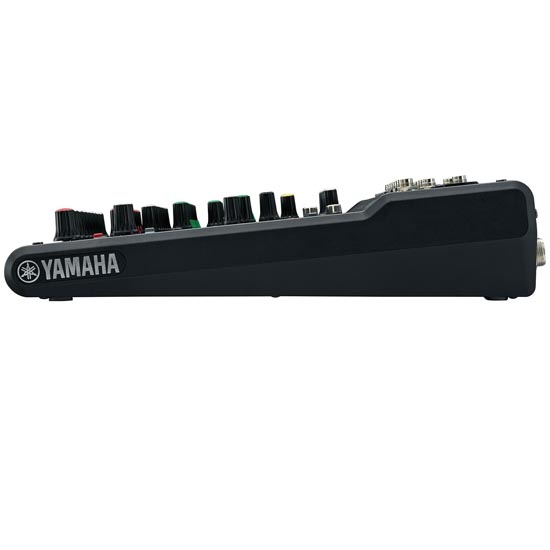

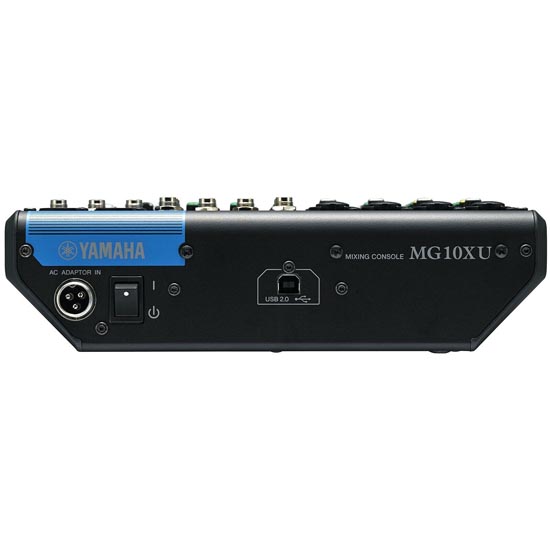

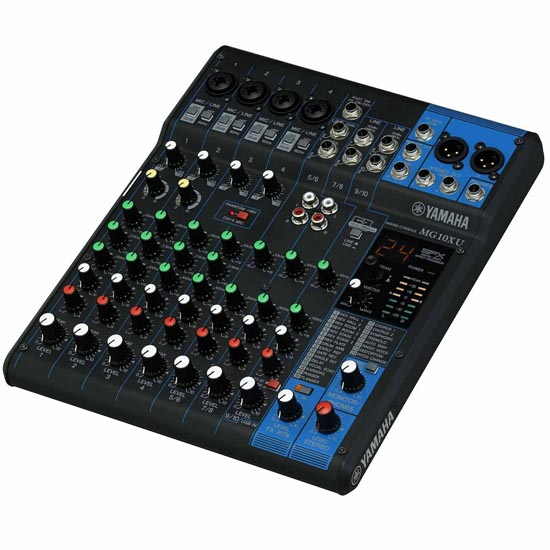

Yamaha MG10XU

For more than a century, Yamaha has been building a legacy of superior craftsmanship and innovation exemplified in all of their products, from an unrivaled catalog of world-class musical instruments to touring-grade professional audio. Now in its third incarnation, the MG Series embodies this pursuit of design excellence, and incorporates some of the same technologies developed for use in high-end professional consoles, including studio-quality preamps, powerful digital processing, and a rugged, reliable construction. With an intuitive, easy-to-use interface, the MG Series boasts an extensive lineup of compact mixing consoles with models ranging from six to twenty channels, suitable for a diverse range of users and applications. For installed, recording, or live music settings, the solid construction and flexible design of these consoles lets you shape your sound with confidence, continually delivering peak performance and a level of sound quality and reliability unrivaled in its class.

Yamaha has always striven to provide sound engineers with the purest possible signal instead of added processing or color to give it a "signature" sound, and the MG Series is no exception. Embracing this philosophy of transparent sound, these mixing consoles deliver a level of sonic purity and sound quality that is unmatched in their class. The MG10XU features high-quality built-in signal processing effects that are in the same league as the famed SPX effect processor series. Applying effects allows you to simulate the acoustics of different performance environments.

Yamaha MG10XU 10-Input Stereo Mixer with Effects and USB Features:

  • 10-Channel Mixing Console.
  • Max. 4 Mic / 10 Line Inputs (4 mono + 3 stereo.)
  • 1 Stereo Bus.
  • 1 AUX.
  • "D-PRE" mic preamps with an inverted Darlington circuit.
  • 1-Knob compressors.
  • PAD switch on mono inputs.
  • +48V phantom power.
  • XLR balanced outputs.
  • Metal chassis.
  • Dimensions(WxHxD): 244 mm x 71 mm x 294 mm (9.6"x 2.8"x 11.6".)
  • Net Weight: 1.9 kg (4.19 lbs.)

Alto TX315 Specifications:

Specifications:

  • System Type: 2-way active ported loudspeaker
  • Drivers:
    • Low-Frequency: 15.0" (381 mm) driver, 2.0" (51 mm) voice coil
    • High-Frequency: 1.0" (25 mm) titanium-diaphragm compression driver, 1.0" (25 mm) voice coil
  • Amplifier: 700 watts (peak), 350 (continuous), Class D power
  • Horn Coverage: 90º horizontal x 60º vertical (nominal)
  • Frequency Response: 65 Hz – 20 kHz (-3 dB)
  • Crossover Frequency: 2.2 kHz
  • Max SPL: 121 dB @ 1 m
  • Equalization: Contour switch with low- and high-frequency +3 dB boost
  • Connectors:
    • (1) XLR/TRS 1/4" (6.35 mm) balanced input (Line/Mic)
    • (1) XLR output (Link)
    • (1) IEC power cable input
  • Controls: Power switch, volume control knob, contour switch, ground-lift switch
  • Indicators: (2) power LEDs (1 front panel, 1 rear panel), clip limiter LED
  • Power:
    • Connection: IEC
    • Voltage: 100–120 V~, or 220–240 V~; 50/60 Hz
    • Fuse: 100–120V T6.3AL AC250V or 220–240V T3.15AL AC250V
    • Consumption: 350 W
  • Protection: Thermal, overload analog limiter/compressor
  • Enclosure: Injection-molded polypropylene, multi-angle for main or monitor applications, metal grille, rubber feet, 2 handles (both sides)
  • Mounting/Installation: Standard 36 mm pole socket, wedge monitor
  • Dimensions (height x width x depth):
    • 24.9" x 15.2" x 14.6"
    • 634 x 386 x 371 mm
  • Weight:
    • 31.7 lb
    • 14.4 kg

Yamaha MG10XU Specifications:

OutlineMG10XU
I/OPhantom power+48 V
Input ChannelsMono[MIC/LINE]4
Stereo[LINE]3
Output ChannelsSTEREO OUT2
MONITOR OUT1
PHONES1
AUX SEND1
BusStereo: 1, AUX: 1
Input Channel FunctionPAD26 dB (Mono)
HPF80 Hz, 12 dB/oct (Mono)
COMP1-knob compressor Threshold: +22 dBu to -8 dBu, Ratio: 1:1 to 4:1, Output level: 0 dB to 7 dB, Attack time: approx. 25 msec, Release time: approx. 300 msec
EQ HIGHGain: +15 dB/-15 dB, Frequency: 10 kHz shelving
EQ MIDGain: +15 dB/-15 dB, Frequency: 2.5kHz peaking
EQ LOWGain: +15 dB/-15 dB, Frequency: 100 Hz shelving
PEAK LEDLED turns on when post EQ signal reaches 3 dB below clipping
Level Meter2 x 7 -segment LED meter [PEAK, +10, +6, 0, -6, -10, -20 dB]
General specificationsMG10
Total harmonic distortion0.02 % @ +14dBu (20 Hz to 20kHz), GAIN knob: Min, 0.003 % @ +24dBu (1kHz), GAIN knob: Min
Frequency response+0.5 dB/-1.0 dB (20 Hz to 48 kHz) , refer to the nominal output level @ 1 kHz, GAIN knob: Min
Hum & noise levelEquivalent input noise-128 dBu (Mono Input Channel, Rs: 150O, GAIN knob: Max)
Residual output noise-102 dBu (STEREO OUT, STEREO LEVEL knob: Min)
Crosstalk-83 dB
Power requirementsPA-10 (AC 38 VCT, 0.62A, Cable length = 3.6 m) or equivalent recommended by Yamaha
Power consumption22.9 W
DimensionsW244 mm (9.6")
H71 mm (2.8")
D294 mm (11.6")
Net weight1.9 kg (4.19 lbs.)
AccessoriesIncluded Accessory: AC Adaptor, Owner's Manual, Technical Specifications, Optional Accessory: Mic Stand Adaptor BMS-10A
OthersOperating Temperature: 0 to +40°C
MG10XU Analog Input Characteristics
Input terminalPAD
26 dB
GAIN Trim
Position
Actual Load
Impedance
For Use With
Nominal
Input levelConnector
Sensitivity *1NominalMax. before clip
MIC/LINE
1 – 4
OFF+64 dB3kO50-600O
Mics/Lines
-72 dBu
(0.195 mV)
-60 dBu
(0.775 mV)
-40 dBu
(7.75 mV)
Combo
jack *2
(Balanced)
+20 dB-28 dBu
(30.9 mV)
-16 dBu
(122.8 mV)
+4 dBu
(1.228V)
ON+38 dB-46 dBu
(3.884 mV)
-34 dBu
(15.46 mV)
-14 dBu
(154.6 mV)
-6 dB-2 dBu
(615.6 mV)
+10 dBu
(2.451 V)
+30 dBu
(24.51 V)
LINE
5/6, 7/8
10kO600O
Lines
-22 dBu
(61.56 mV)
-10 dBu
(245.1 mV)
+10 dBu
(2.451 V)
Phone jack *5 RCA Pin
(Unbalanced)
LINE 9/10Phone jack *5
(Unbalanced)
MG10XU Analog Output Characteristics
Output TerminalsActual source
impedance
For Use With
Nominal
Output levelConnector
NominalMax. before clip
STEREO OUT [L, R]75O600O Lines
+20 dB
+4 dBu
(1.228 V)
+24 dBu
(12.28 V)
XLR-3-32 *3
Phone jack *5
(Balanced)
MONITOR OUT [L, R]
AUX SEND
150O10kO Lines+4 dBu
(1.228 V)
+20 dBu
(7.750 V)
Phone jack *4
(Impedance Balanced)
PHONES110O40O Phones3mW + 3mW100mW + 100mWStereo phone jack

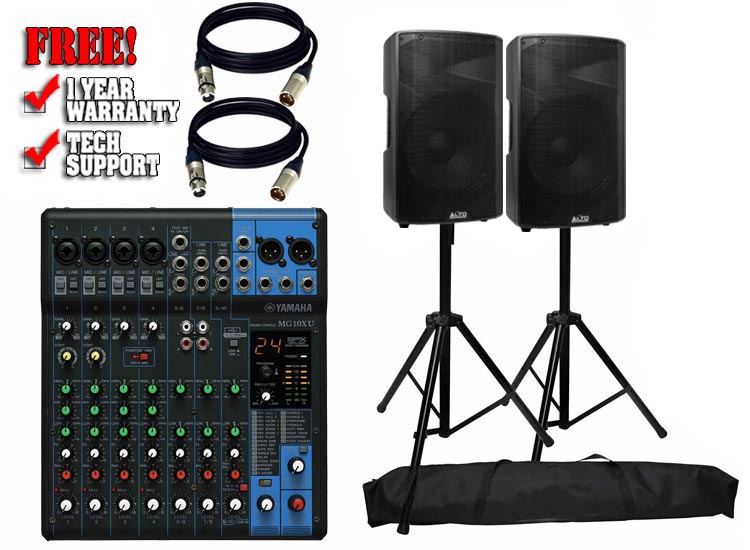

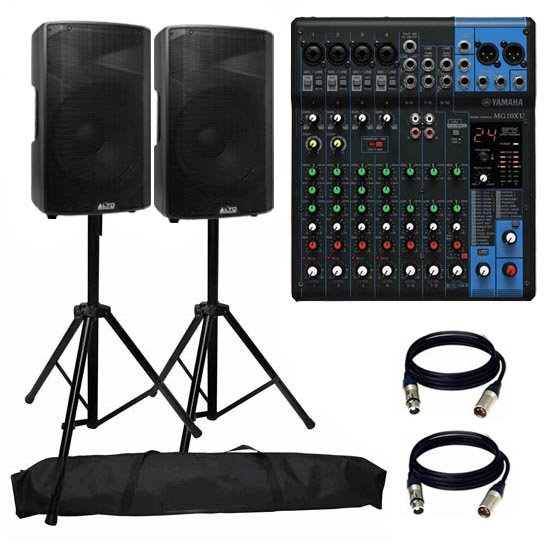

This Package Includes:

  • (2) Alto TX315 750-WATT 12-INCH 2-WAY POWERED LOUDSPEAKER
  • (2) Power Cables
  • (1) Yamaha MG10XU 10-Input Stereo Mixer with Effects and UBS
  • (1) AC Power Adaptor
  • (2) Tripod Speaker Stands
  • (1) Tripod Speaker Stand Set Carry Bag

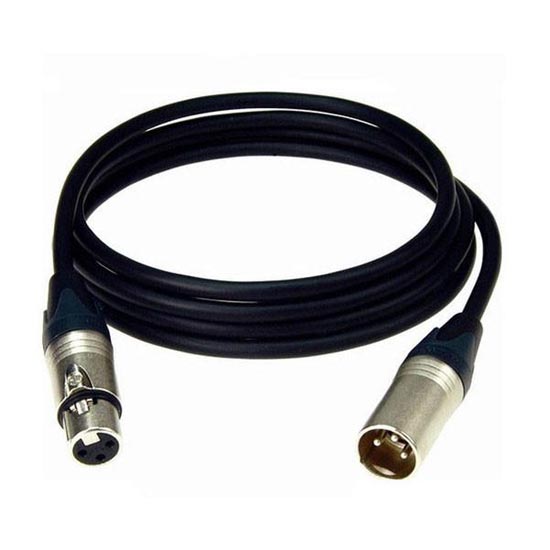

  • (1) XLR Female to XLR Male Microphone / Speaker Cables
