(4) DAS Event 208A Dual 8" Multipurpose Powered Line Array Speaker

Overview

The Event 208A Line is a three-way powered line array in a double 8" configuration. The D.A.S. loudspeaker units have been teamed up with a single M-75 compression driver and purpose-designed injected aluminum high frequency waveguide. The Event 208A line array is powered by a three channel Class D amplifier which provides 360 Wpeak per channel. The amp?s rear panel includes quality Neutrik® XLR and powerCON connectors, status LEDS to facilitate setup and D.A.S.'s Easy-DSP™ interface which simplifies preset selection for the number of units and throw depth.

DAS Event 208A Features:

• Powered 3-way system.
• Light-weight Class D amplifier topology.
• High-end DSP chipsets.
• Easy-DSP™ Interface.
• Quality Neutrik® connectors.
• Top grade Birch cabinet construction.
• Durable ISO-flex finish.
• Robust "quick-rig" professional rigging hardware.
• Proprietary injected aluminium HF waveguide (not plastic).
• D.A.S. M-75 compression driver and cone transducers

DAS AXS-Event 208A Rigging system for Event 208A

Rigging system for DAS Event 208A Line Array Speakers

Technical specification

DAS Event 208A Specifications

• Nominal HF Amplifier Power 360 Wpeak
• Nominal MF Amplifier Power 360 Wpeak
• LF Amplifier Power 360 Wpeak
• Range (-10 dB) 75 Hz -20 kHz
• Rated Peak SPL at 1 m 132 dB
• Horizontal Coverage (-6 dB) 90° Nominal
• Vertical Coverage Splay Dependent
• Enclosure Material Birch Plywood
• Color/Finish Black ISO-flex Paint
• Connectors INPUT: Female XLR
• LOOP THRU: Male XLR
• AC INPUT: powerCON
• AC OUTPUT: powerCON
• AC Requirements 115 V, 2.4A, 50 Hz/60 Hz
• 230 V, 1.2A, 50 Hz/60 Hz
• Dimensions (H x W x D) 27 x 67 x 36.6 cm
• 10.6 x 26.4 x 14.4 in
• Weight 30 kg (66 lb)

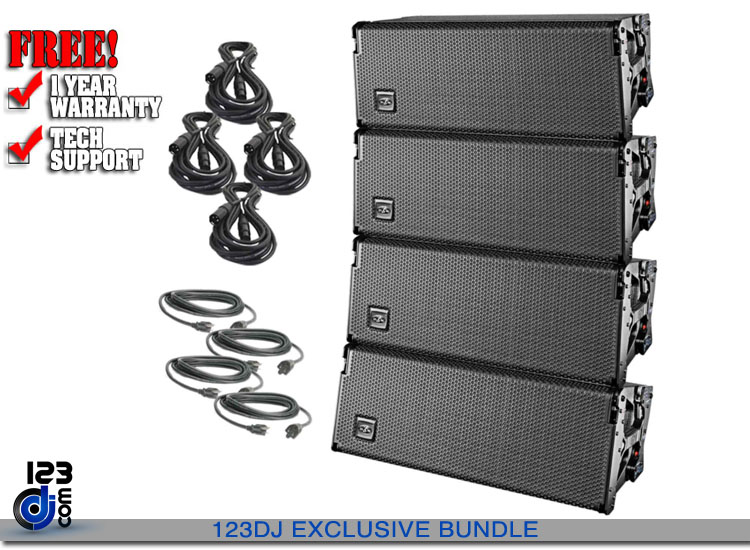

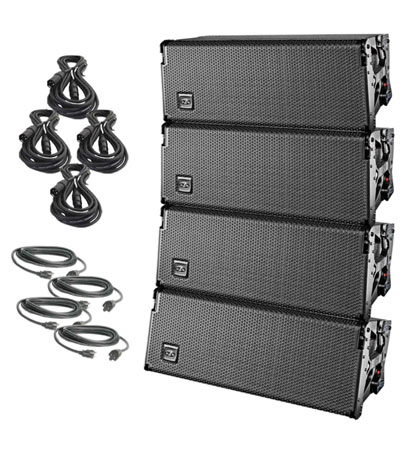

WHAT'S IN THE BOX

This Package Includes:

• (4) DAS Event 208A Dual 8" Multipurpose Powered Line Array Speakers
• (2) DAS AXS-Event 208A Rigging systems for Event 208A
• (4) Black 10FT 16 Gauge AC Extension Cords
• (4) 20FT Sure-Fit XLR Connecting Cables

Each DAS Event 208A Box Includes:

• (1) DAS Event 208A Dual 8" Multipurpose Powered Line Array Speaker
• 1) Power Cord
• (1) User Manual

Each AXS-Event 208A Box Includes:

• (1) Pick-up Bar
• (1) Attachment Parts Kit
• (2) Safety Pins
