Features

• Compact LED barrel scanner with a 60 W light source that shines through any environment
• Split the beam and cover larger areas with the crisp, 3-facet prism
• Convenient, wireless non-DMX control using the optional IRC-6 remote
• Link up to 4 fixtures to create eye-catching synchronized shows in Automated, Sound or Master/Slave modes
• Works in master/slave with the Intimidator Scan 305 IRC
• Minimize programming time using built-in movement macros and move-in-black features
• Achieve flicker-free video operation with high-frequency LED dimming
• Save time running cables and extension cords by power linking multiple units
• Fits best in the CHS-40 VIP Gear Bag
• Beam Angle: 15°
• Illuminance: 9,110 lux @ 2 m
• Power Linking: 5 units @ 120 V; 10 units @ 230 V
• Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
• Power and Current: 104 W, 1.5 A @ 120 V, 60 Hz
• Power and Current: 102 W, 0.8 A @ 230 V, 50 Hz
• Weight: 10 lb (4.6 kg)
• Size: 16.9 x 10 x 5.7 in (430 x 255 x 147 mm)
• Optional Controllers: IRC-6
• Approvals: CE

Specifications

• DMX Channels: 7 or 11
• DMX Connectors: 3-pin XLR
• Pan and Tilt: 180°/360° (continuous)
• Colors: 8 + white, split colors, continuous scroll at variable speeds
• Gobos: 7 + open (5 metal + 2 glass), rotating, interchangeable, slot-n-lock, continuous scroll at variable speeds
• Light Source: 1 (white) 60 W (2.3 A), 50,000 hours life expectancy
• Strobe Rate: 0 to 35 Hz
• PWM Frequency: 600 Hz
• Beam Angle: 12°
• Illuminance: 1,630 lux @ 2 m (per beam)
• Power Linking: 5 units @ 120 V; 10 units @ 230 V
• Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
• Power and Current: 104 W, 1.5 A @ 120 V, 60 Hz
• 102 W, 0.8 A @ 230 V, 50 Hz
• Gobo Size: 23.9mm outside, 20.5 mm image, 1 mm max thickness
• Weight: 10.4 lb (4.8 kg)
• Size: 6.7 x 10 x 18.9 in (171 x 255 x 480 mm)
• Approvals: CE
• Series: Intimidator
• Primary Use: DJ/Mobile, Bands/Stages, Events, Clubs, Party
• Optional Controllers: IRC-6

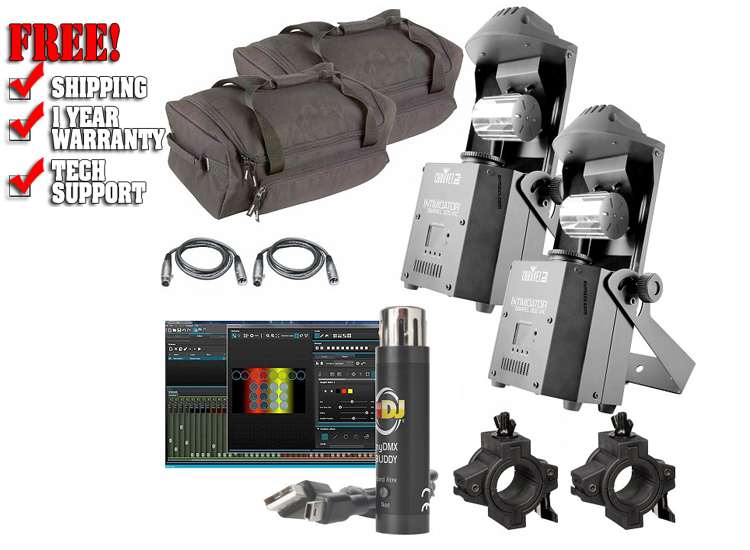

What's Include

• (2) Chauvet DJ Intimidator Barrel 305 IRC

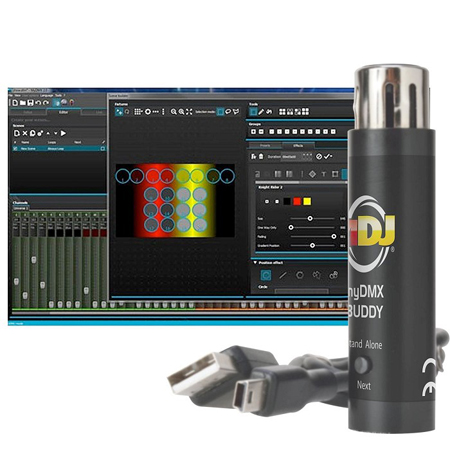

• (1) ADJ myDMX Buddy USB/DMX Dongle & DMX Software
• (1) 5FT DMX Cable
• (1) 25ft DMX Cable
• (2) Universal C-Clamps
• (2) Protective Transport Cases
