JMAZ Professional JP1001 2-Pack with Bags Package

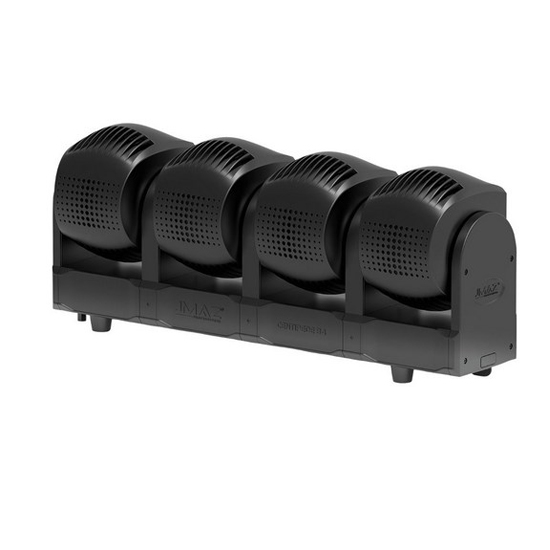

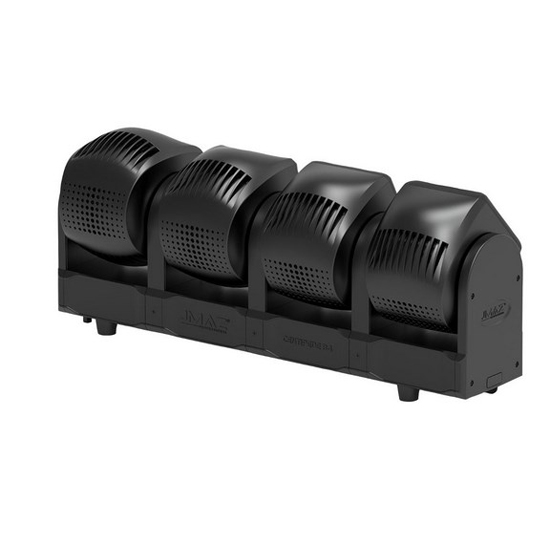

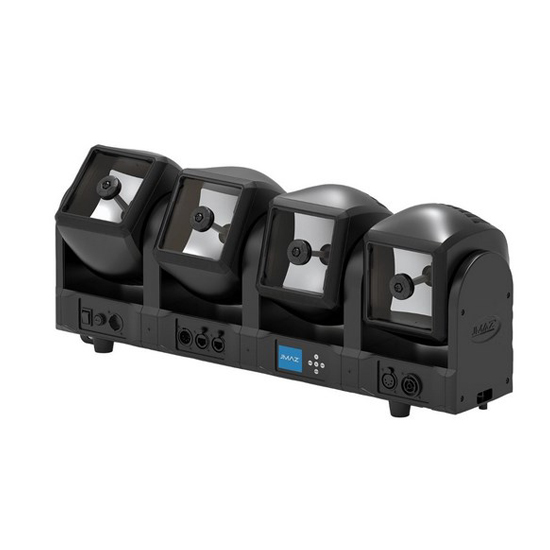

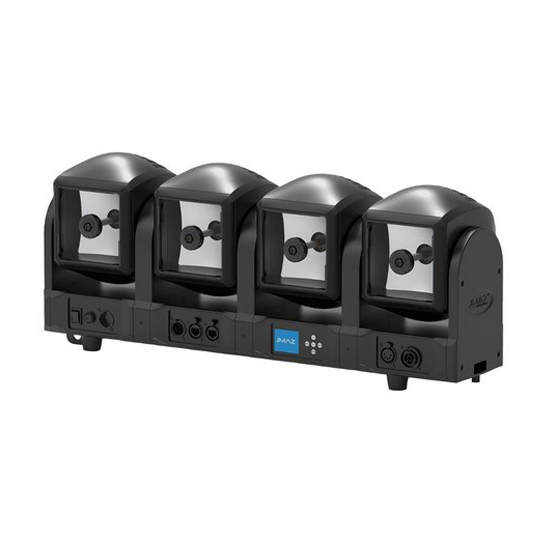

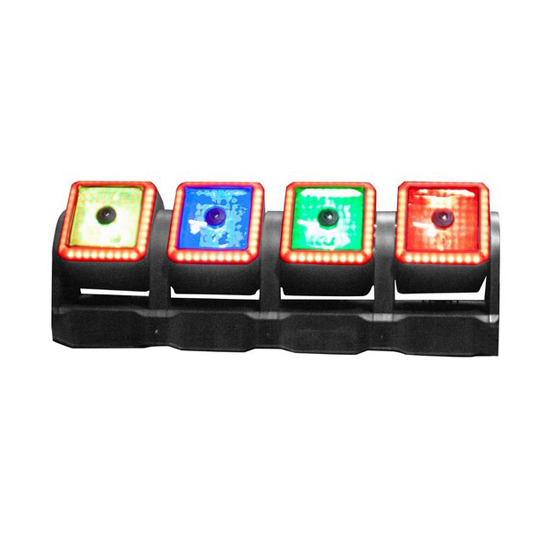

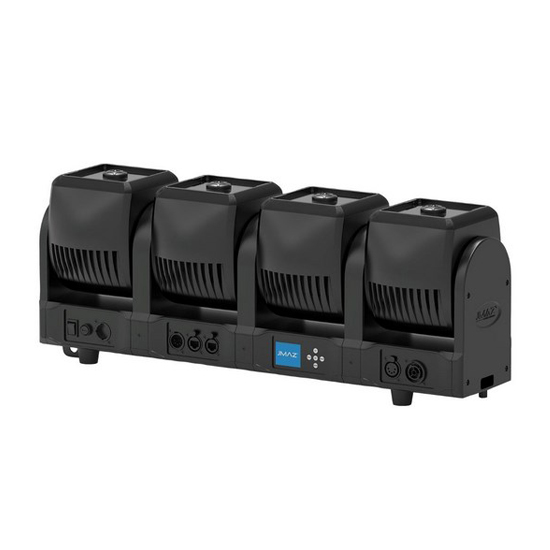

The JMAZ Professional Centipede B4 270W LED features 240W RGBW LEDs, 24W RGB SMD ring effects, and 360° infinite tilt control. With individual pixel and ring control, dynamic color macros, and CTC (2500K-8000K), it offers vibrant and versatile lighting. A 3.5° beam angle and advanced protocols (DMX512, Art-Net, Kling-Net) ensure professional-grade performance, making it ideal for captivating light displays.

Features:

• 240W (4 x 60W) RGBW LED.
• Ring Effect: 24W (120 x 0.2W) RGB SMD LEDs.
• Individual Head 360° Infinite Tilt Control.
• Individual Head Pixel Control.
• Individual Dynamic Ring Color And Effect Macro.
• Built-In Virtual Colors And Movement Macros with Foreground.
• Background Color Control.
• Beam Angle: 3.5°.
• 16 bit RGBW Color Mixing, CTO: 2500K - 8000K.
• Personalities: 4 Modes 24/55/66/86.
• Protocol: 5-Pin DMX512, Art-Net, RDM, sACN, Kling-Net.
• Power Connection: TRUE1 In/Out.
• CE, cETL, FCC, Rohs Certified.
• Includes: TRUE1 Power Cable, 5-Pin DMX Cable, 2 Omega Bracket, 2 Safety Cable, and Manual.

Specifications:

• Light Source
  • 4 x 60W RGBW LED Engine
  • 120 x 0.2W RGB SMD LED (30 LEDs per Head)
  • LED Life Expectancy: 50,000 Hours
• Color System
  • RGBW color mixing 16 bit
  • Linear 16bit color temperature (range) 2500 -8000K
  • Pixel Mapping capability with individual pixel control on each LED
  • Dynamic RBG color Marcos for Eye-candy (Outer Ring)
• Optics
  • Beam Angle: 3.5°
• Dynamic Effect
  • Movement:
  • Tilt: 2 modes
  • 360-degree continuous movement
  • 240-degree ( 8 bit and 16 bit)
  • Selectable preset home position Macros by DMX function channel for fast and easy programming
  • Selectable fast and precise movement speed by DMX function channel
  • Scan position memory with automatic tilt position correction
  • Dimmer: 0 - 100% smooth linear electronic dimming
  • Shutter/ Strobe
  • High speed electronic shutter and strobe
  • 0-25Hz shutter/ strobe effect with variable speed
  • Preset pulse strobe effect with variable speed
  • Random strobe effect with variable speed
  • Sharp Beam Effect
  • Dynamic Ring Effect with built-in Macros with variable speed
• Control
  • Control Protocol: DMX, Art-Net, RDM, sACN
  • Personalities: 3 modes: 21/39/61 Control Channels
• Electronics
  • Linear LED Dimmer: 0-100% Smooth
  • Linear CTO: 2500-8000K
  • Strobe Shutter: 1-25 Hz Variable
• Body
  • Die-cast Aluminum and Steel structure with high impact flame retardant PA6 GF 30 (Polyamide 6) with 30% glass fiber
  • Exterior finish: Black
• Physical
  • IP Rating: 20
  • Cooling: Fan
  • Power Connection: US Edison (UL listed) plug to Seetronic Powercon IP65 True1
  • Power Input: Seetronic Powercon IP65 True1
  • Power Output: Seetronic Powercon IP65 True1
  • Data Connectors: Seetronic 5pin XLR; Seetronic etherCON
  • Cable Length: Power 5 feet (1.5 meter); DMX 5 feet (1.5 meter)
  • Dimensions: 23.7" x 9.3" x 6.6"
  • Weight: 22 lbs.
• Electrical
  • Input Voltage: 100 - 240V AC, 50/60Hz (Auto ranging with active PFC)
  • Power Consumption: 320W
  • Power Linking for connecting fixture in daisy-chain
  • Up to 6 units @110V with a 20A circuit
  • Up to 12 units @208V with a 20A circuit
  • Up to 12 units @230V with a 20A circuit
  • Fuse: F12A, 250V
• Certification / Qualifications
  • cETLus Listed, CE, FCC
  • IP Rating: IP 20
  • Operating Temperature: 40 ° C ( 104 °F)
  • Minimum Temperature: - 10 ° C ( 14 ° F)
  • Maximum Temperature: 60 ° C ( 140 ° F)

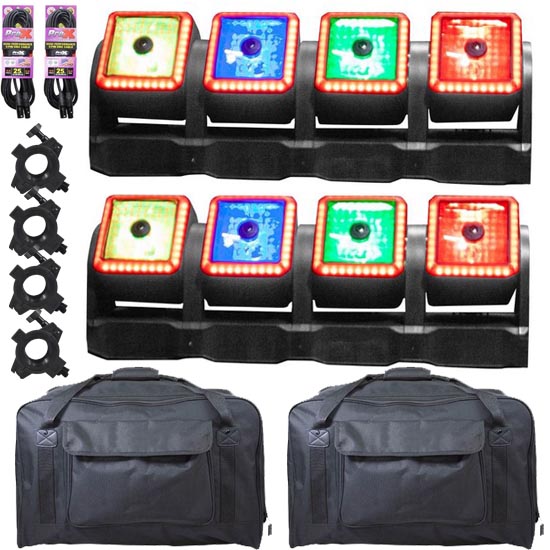

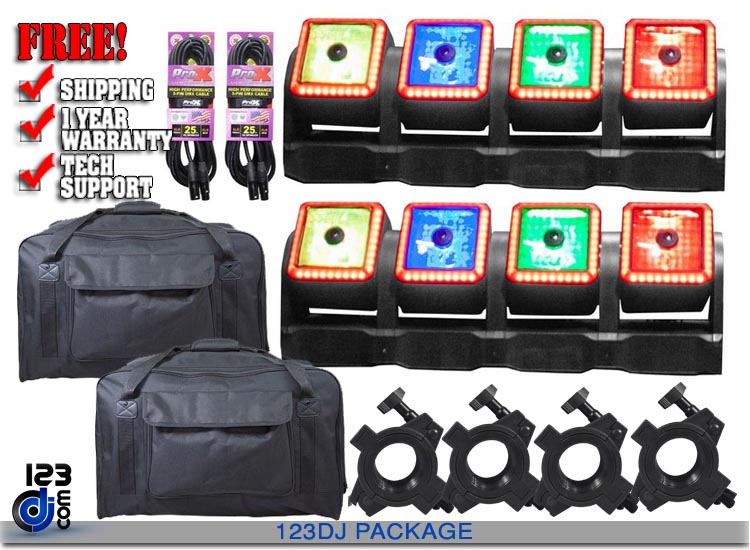

This Package Includes:

• (2) JMAZ Professional JP1001 Centipede B4 270W LED Intelligent Bars RGBW LED
• (2) Powercon IP65 TRUE1 Power cables
• (2) 5 pin DMX Cables
• (2) User Manuals
• (4) Omega Brackets
• (2) Safety Cables
• (2) Properly Fitting & Durable Protective Transport Cases

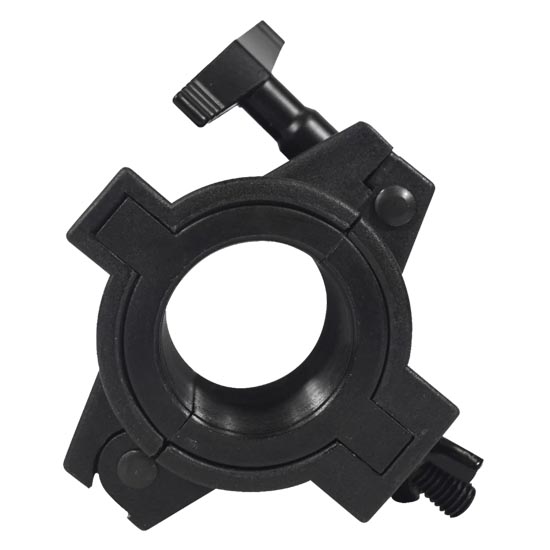

• (4) Universal O-Clamps with Snug-Fit 360 Degree Wraps in black
• (2) ProX XC-5PDMX25 High Performance 25' 5PIN DMX Cables
