Antari M-9 RGBAW LED Upright High Output Fogger Fog Machines Pair w Fluid & Case

Overview

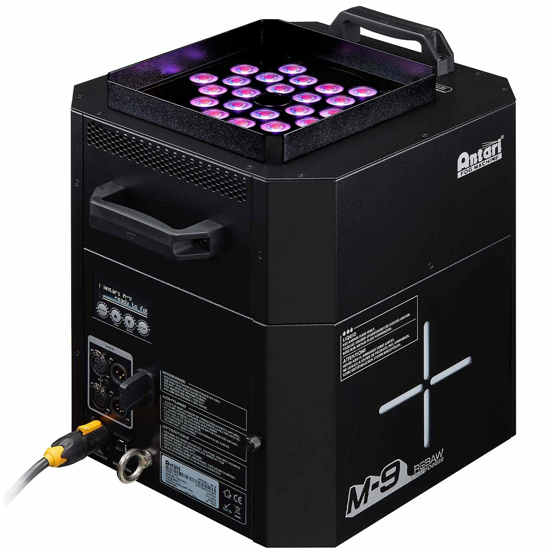

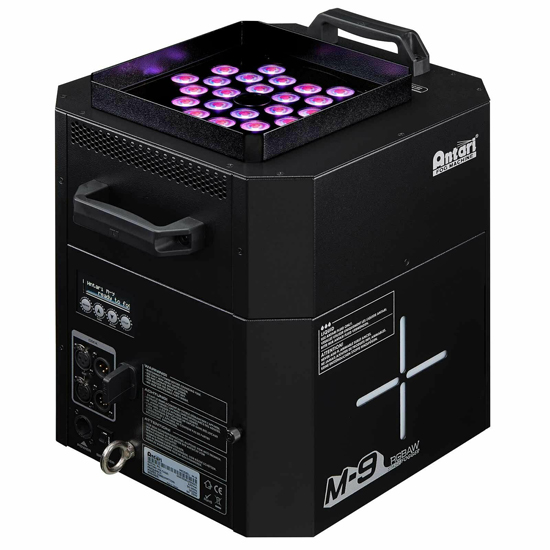

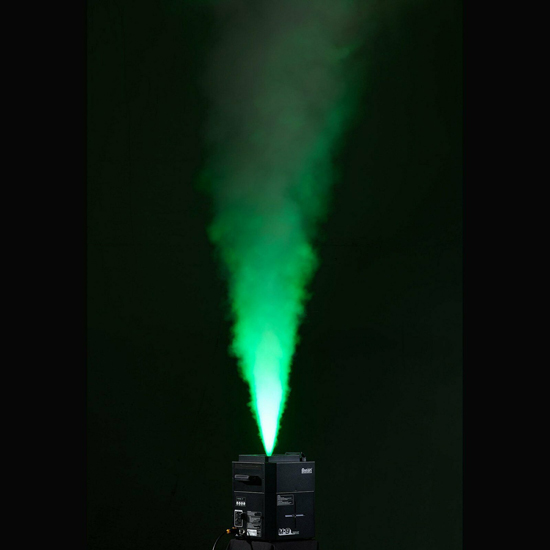

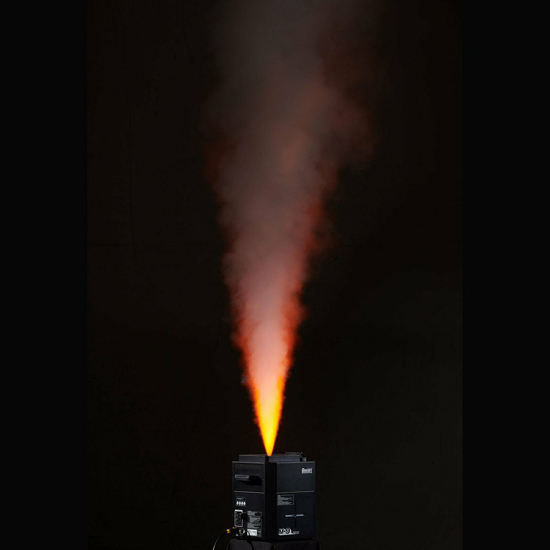

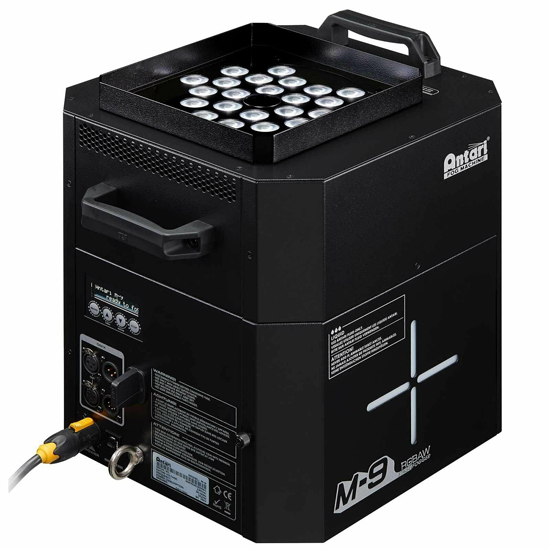

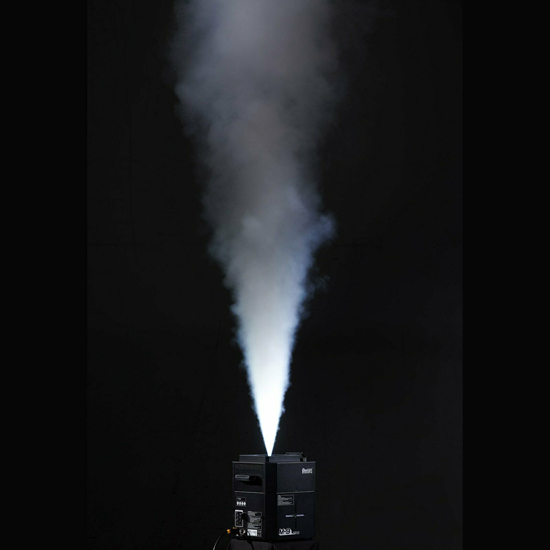

The M-9 RGBAW is Antari's most advanced CO2 effect simulator ever produced. A new specially designed and patented high pressure heater block allow the M-9 to produce a CO2 simulated blast as high as 10 meters (over 30 feet), without the need of dangerous and cumbersome CO2 tanks.

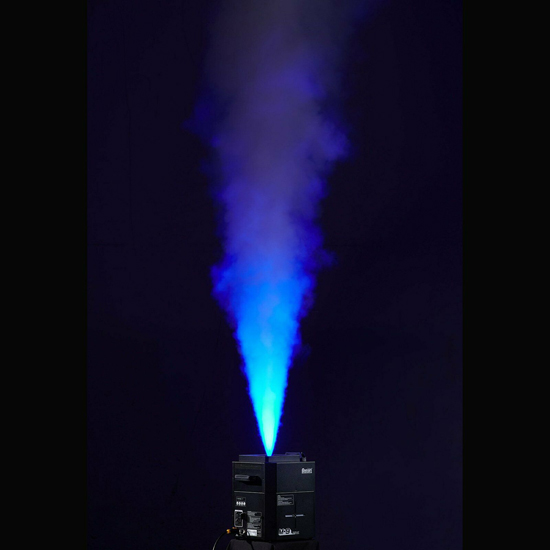

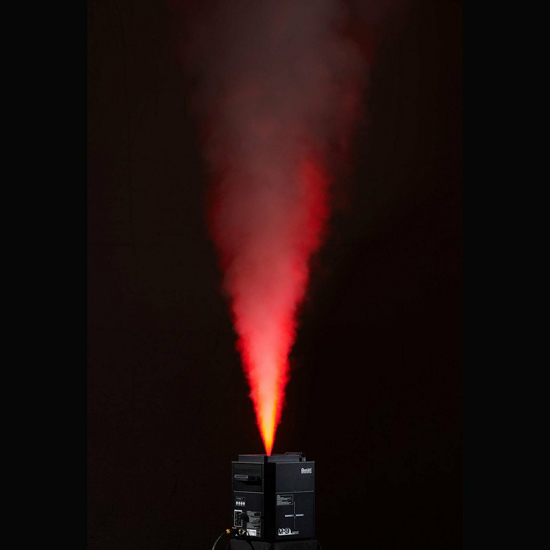

The M-9 comes equipped with high-powered 5-in-1 RGBAW LEDs to create a colorful cloud in the widest color spectrum possible. Versatile case design allow the unit to be mounted vertically, horizontally, or inverted without fear of leaking or dripping thanks to Antari's specially designed fluid transfer system. The M-9's versatile control options include built-in electronic timer, DMX with RDM, stand alone operation, and built-in wireless remote. The units also comes with 8 preprogramed colored chase effects and 25 color macros for quick and easy programming.

Antari M-9 RGBAW LED Multi-Position Fogger Features:

• The machine can be operated with an onboard digital control interface.
• The machine provides 3 or 5 pin XLR connector for DMX connection.
• Connect the machine to a DMX controller or to another machine in any DMX chain.
• The M-9 RGBAW is RDM enabled, allowing the control system to configure, monitor, and manage.
• Wireless remote control consists of a transmitter equipped with four buttons to activate four user configurable LED setting and fog.
• In an open unobstructed space, the effective distance is 50 meters.
• The effective distance depending on obstacle level is 10 - 25 meters.
• The transmitter can be paired or deleted from the receiver.
• Each receiver can pair up to 10 transmitters.

Antari M-9 RGBAW Specifications:

• Rated power: 1820 W
• Light source: 27 X 8W LED ( 5-in-1 LED)
• Warm-up time: 14 minutes (approx)
• Fluid consumption: 400 ml/min
• Fluid tank capacity: 6 Liters (1.59 gallon)
• Compatible fluid: Antari FLC-6 Super Light Fog Fluid
• Ambient temp.range: 0°C - 40°C (32°F - 104°F)
• Output: 10 metrers height
• DMX channels: 10 / 15 / 25 channel
• Optional Accessories: WTR-90 Wireless DMX

Input voltage:

• US model: AC 100-120V, 50/60Hz 15.2A
• EU model: AC 220-240V, 50/60Hz 7.6A

Control:

• Manual, Timer, DMX 512
• Master / Slave, Wireless
• Wireless DMX (Optional)

Connection:

• Neutrik TRUE 1 Connector(Power)
• XLR 3-pin and 5-pin (DMX)

Dimensions:

• L 393 x W 321 x H 420 mm
• L 15.47 x W 12.63 x H 16.53 inch
• Weight: 25 kg (55.1 lbs)

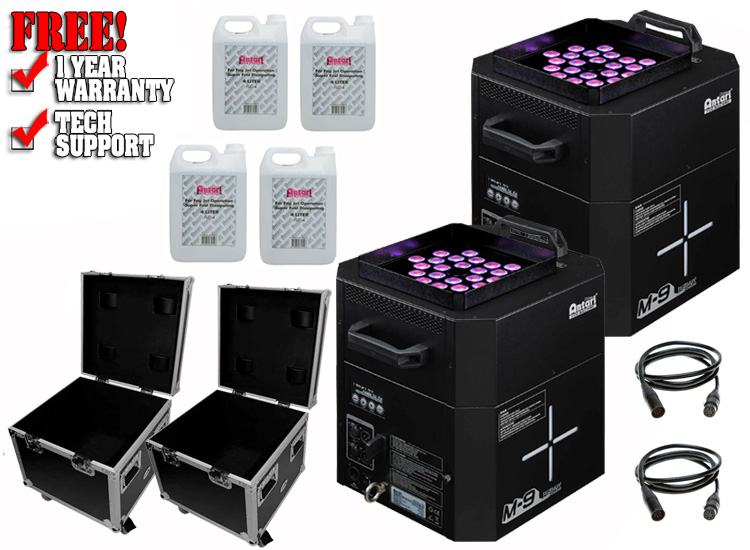

What's in the box

• (2) Antari M-9 RGBAW LED Multi-Position Fogger with Powerful 50FT Upshot Burst
• (2) W-2 Wireless Remote
• (2) Power Cord

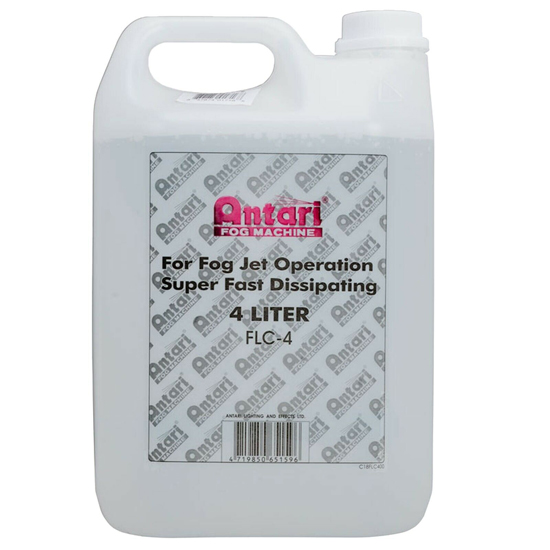

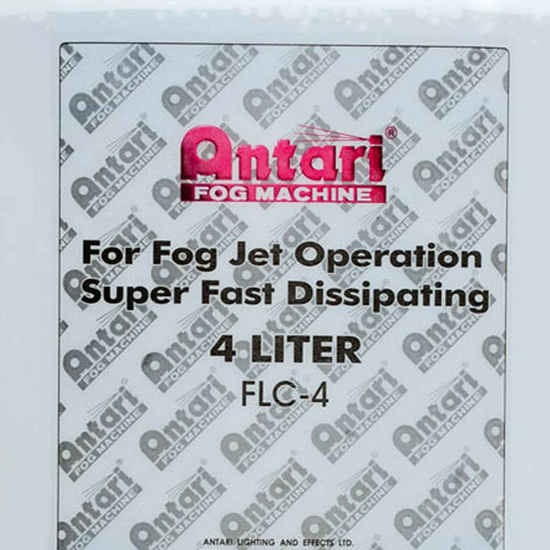

• (4) 4 Liter bottles of Fog Fluid
• (2) ProX XS-UTL9W Heavy Duty Utility Flight Case with Casters
• (2) 5FT 5-Pin DMX Cable
