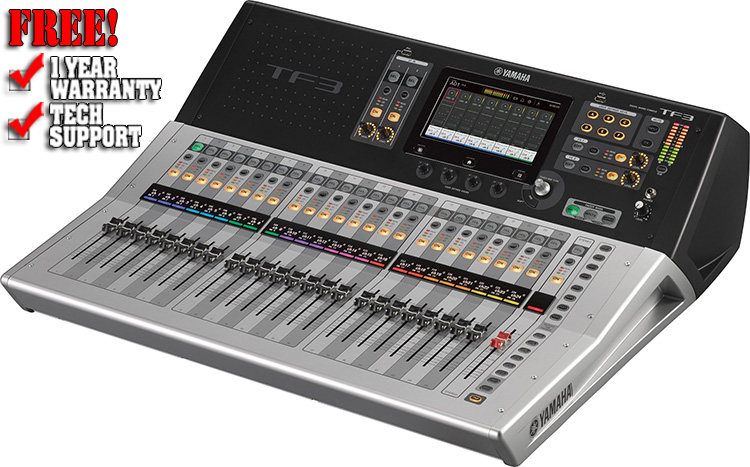

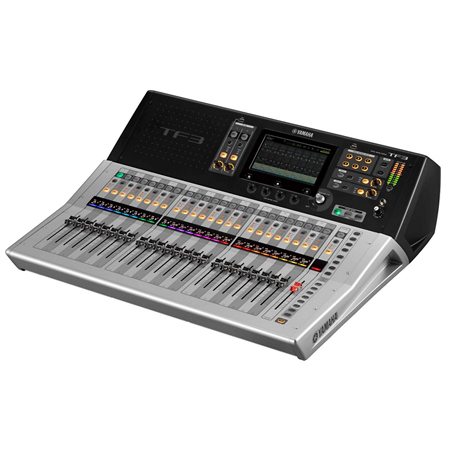

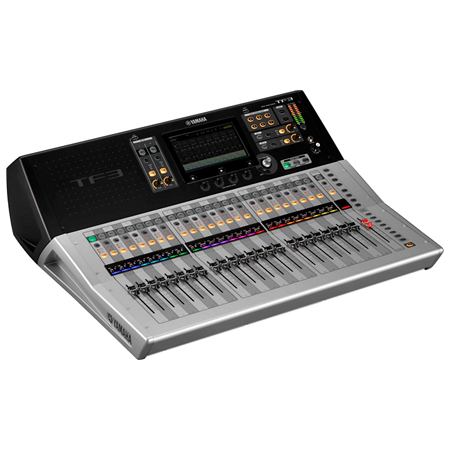

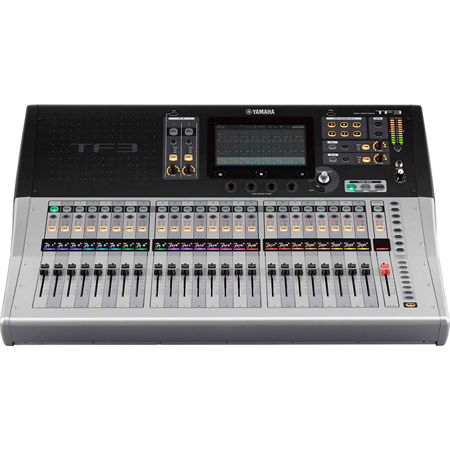

Yamaha TF3 24 Channel Digital Mixer

Description

The Yamaha TF series Digital mixing consoles represent years of continuous development. Yamaha is among the world's most experienced designers of digital consoles, but for the TF project, engineers started from scratch, rethinking the way people approach mixing sound, and careful not to get caught up in any conventions or presupposed best practices without a thorough reaxamination. The team that created this console have more than 70 years of aggregated experience mixing shows of all genres, so they have firsthand experience with the chief concerns musicians have with regard to mixing. The Yamaha TF3 is the Mama Bear of the three available versions of the TF mixer series, situated nicely in the middle in terms of feature set. It may be the perfect thing for your stage or studio.

Based around an intuitive multi-touch screen and a simple touch and turn knob getting around and making adjustments is simple and fast. Simple swipe, pinch and pull gestures and double touches invite the user to make adjustments, and the always available Touch and Turn control makes precise adjustments a breeze. The TF3 boasts the following primary features:

25 motor faders (24 channels + 1 master)

48 input mixing channels (40 mono + 2 stereo + 2 return)

20 AUX (8 mono + 6 stereo) + stereo + sub buses

24 analog XLR/TRS combo mic/line inputs + 2 analog RCA pin stereo line analog inputs

16 analog XLR outputs

34 x 34 digital record/playback channels via USB 2.0 + 2 x 2 via a USB storage device

1 expansion slot for NV64-D audio interface cards

Features:

Format

• Analog/digital: Digital
• Powered: No
• Output (8 ohms): Not applicable

Analog inputs

• Total: 24
• Mic preamps: 24
• XLR/TRS combo jacks: 24
• XLR only jacks: Not applicable
• 1/4" TRS only jacks: Not applicable
• RCA (stereo pair): 2
• Phantom power: Yes (+48V)

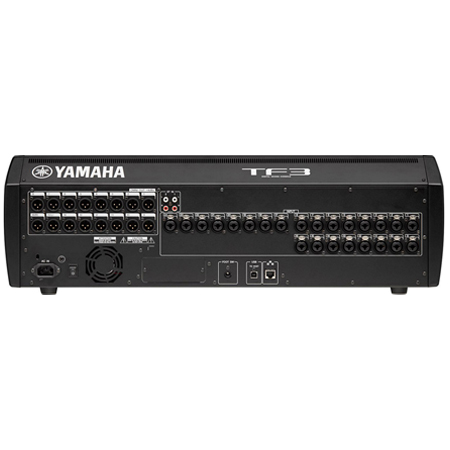

Analog outputs

• Main XLR out: 2
• Main 1/4" out: Not applicable
• Aux XLR: 14
• Aux 1/4": Not applicable
• RCA (stereo pair): Not applicable/li>
• Headphone: 1

Onboard effects

• Compression: Yes, all inputs
• Reverb: Yes
• Delay: Yes
• Chorus/flange: Yes

Equalization

• Type: Fully parametric
• Bands per channel: 4
• Treble: Adjustable
• High midrange: Adjustable
• Sweep high midrange: Adjustable
• Midrange: Adjustable
• Sweep midrange: Adjustable
• Low midrange: Adjustable
• Sweep Low midrange: Adjustable
• Low: Adjustable
• Q: Adjustable
• Low cut: Adjustable
• Master graphic: Yes

Inserts/buses

• Inserts (channel): Not applicable
• Inserts (master): Not applicable
• Buses: Not applicable
• Sub groups: Not applicable

Connectivity

• USB: Yes
• FireWire: Not applicable
• Wi-Fi: Not applicable
• ADAT: Not applicable
• Thunderbolt: Not applicable
• S/PDIF Not applicable
• MIDI: Not applicable

Others

• Width: 28.2"
• Height: 8.9"
• Depth: 23.6"
• Weight: 37.4 lb.
• Automation: Snapshot Memory
• Fader type: 100mm
• Motorized faders: Yes
• Bundled software: Cubase AI
