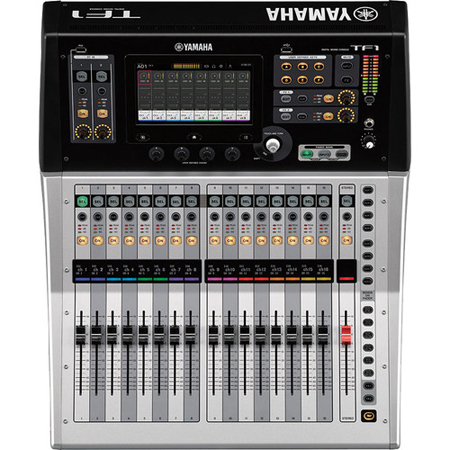

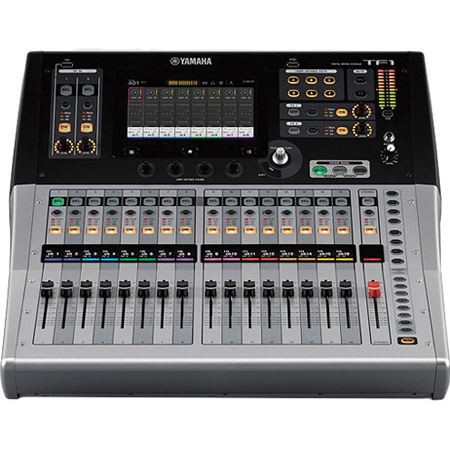

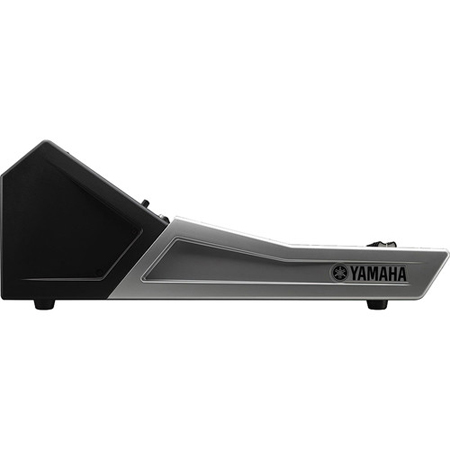

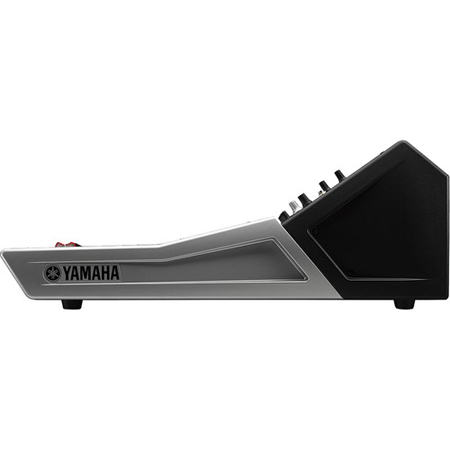

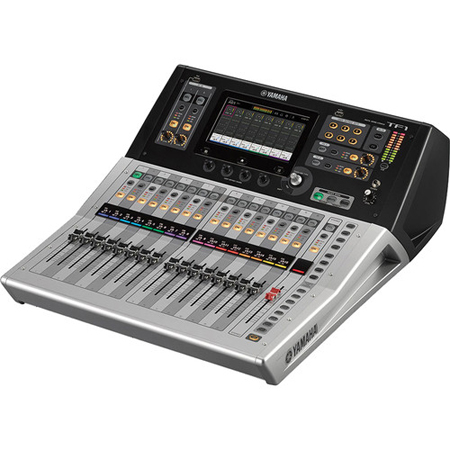

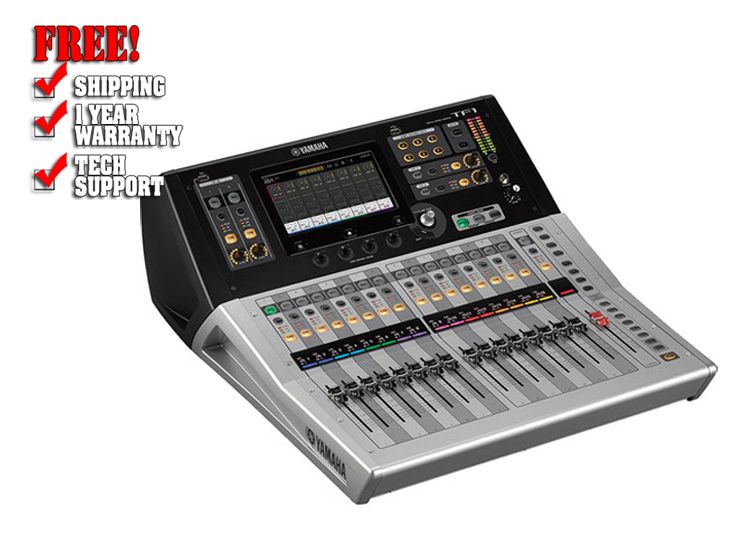

Yamaha TF1 Digital Mixing Console

Description

The Yamaha TF1 is a rack-mountable digital audio mixing console that features a touchscreen display, 17 motorized faders, and is expandable up to 40 input channels by adding the optional Tio1608-D I/O rack. Ideal for a multitude of live sound reinforcement scenarios, the TF1 can also be used for live recording, offering 34 x 34 channel digital recording and playback via USB 2.0 using a computer and your preferred DAW software, and 2 x 2 channel recording and playback using any USB storage device.

The TF1 console itself provides 16 analog XLR/TRS combo mic/line inputs with 48V phantom power, as well as 2 analog RCA stereo line inputs, and 16 analog XLR outputs. Each combo input channel features a recallable D-PRE microphone preamp, as well EQ and two dynamics processors. In addition, the console offers eight powerful FX processors with patches ranging from reverb and delay, to modulation effects such as flanger and chorus, to utility processing like 3-band multi-band compression. The TF1 ships with Steinberg's Nuendo Live for advanced multi-tracking and virtual sound check capabilities.

Features:

• 17 motor faders (16 channels + 1 master)
• 40 input mixing channels (32 mono + 2 stereo + 2 return)
• 20 Aux buses (8 mono + 6 stereo) + Stereo + Sub
• 8 DCA groups with Roll-out
• 16 analog XLR/TRS combo mic/line inputs + 2 analog RCA pin stereo line inputs
• 16 analog XLR outputs
• 34 x 34 digital record/playback channels via USB 2.0 + 2 x 2 via a USB storage device
• Download information for CUBASE AI DAW software
• Optional rackmount kit
• 1 expansion slot for optional NY64-D Dante audio interface card
• Optional Tio1608-D Dante equipped I/O rack with 16 microphone/line inputs and 8 line outputs

Specifications:

• Faders: 17
• Mixer : Input Channels: 40 (32 mono + 2 stereo + 2 return) Aux Buses: 20 (8 mono + 6 stereo) Stereo Buses: 1 Sub Buses: 1 Input Channel Functions: 8 DCA Groups

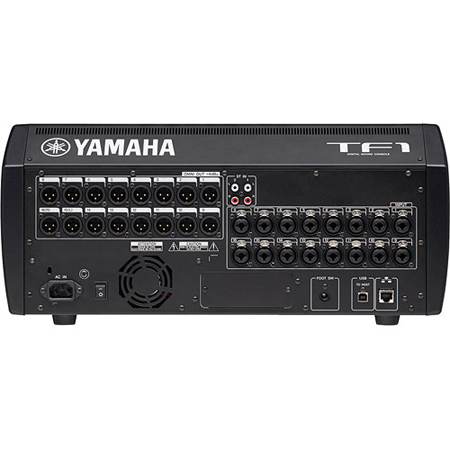

• I/O : Inputs: 16 mic/line (XLR/TRS combo) + 2 stereo line (RCA pin) Outputs: 16 (XLR) Expansion Slots: 1
• DSP:8 effects + 10 GEQ
• USB: 34 x 34 USB audio interface, 2-track recording via USB storage device
• Sampling Frequency : 48 kHz, internal
• Signal Delay: Less than 2.6 ms, INPUT to OMNI OUT, Fs=48 kHz
• Faders: 100 mm motorized, resolution = 10-bit, +10 to -138 dB, -8 dB all faders
• Total Harmonic Distortion: Less than 0.05% 20 Hz - 20 kHz @ +4 dBu into 600 ohms, INPUT to OMNI OUT, input gain = min. (measured with a -18 dB/octave filter @ 80 kHz)
• Frequency Response: +0.5, -1.5 dB 20 Hz - 20 kHz, refer to +4 dBu output @ 1 kHz, INPUT to OMNI OUT
• Dynamic Range :110 dB typ., DA converter, 107 dB typ., INPUT to OMNI OUT, input gain = min
• Noise:Equivalent Input Noise:-128 dBu typ., input gain = max. (measured with an A-weight filter) Residual output noise:-85 dBu, ST master off (measured with an A-weight filter)
• Crosstalk :-100 dB (measured with a -30 dB/octave filter @ 22 kHz), adjacent INPUT/OMNI OUT channels, input gain = min
• Power Requirements :100 - 240 V 50/60 Hz
• Power Consumption:100 W
• Analog Inputs:Input Terminals: INPUT 1-16, ST IN 1,2 GAIN: -6 dB / +66 dB (INPUT 1-16) Load Impedance: 7.5 kOhms (INPUT 1-16); 10 kOhms (ST IN 1,2) For Use With Nominal: 50 - 600 ohm mics or 600 ohm lines (INPUT 1-16); 600 ohm lines (ST IN 1,2) Sensitivity: -82 dBu (61.6 V), -10 dBu (245 mV) (INPUT 1-16); -30 dBV (31.6 V) (ST IN 1,2) Nominal: -62 dBu (0.616 mV), +10 dBu (2.45 V) (INPUT 1-16); -10 dBV (316 mV) (INPUT 1-16) Max. Before Clip: -42 dBu (6.16 mV), +30 dBu (24.5 V) (INPUT 1-16); +10 dBV (3.16 V) (ST IN 1,2) Connector: Combo Jack (XLR-3-31 type or TRS phone) balanced (INPUT 1-16); RCA pin jack unbalanced (ST IN 1,2)
• Analog Outputs:Output Terminals: OMNI OUT 1-16, PHONES Source Impedance: 75 ohms (OMNI OUT 1-16); 100 ohms (PHONES) For Use With Nominal: 600 ohm lines (OMNI OUT 1-16); 40 ohms (PHONES) GAIN SW: +24 dBu position (default) (OMNI OUT 1-16) Nominal Output Level: +4 dBu (1.23 V) (OMNI OUT 1-16); 3 mW (PHONES) Max. Output Level Before Clip: +24 dBu (12.3 V) (OMNI OUT 1-16); 75 mW (PHONES) Connector: XLR-3-32 type balanced (OMNI OUT 1-16); stereo phone jack (TRS) unbalanced (PHONES)
• Digital Input/Output :Terminals: USB (TO HOST), iPad Format: USB Data length 24-bit (USB TO HOST) Audio: 34 ch input / 34 ch output, PCM (USB TO HOST); Playback: MP3 or WAV file data / Record: WAV file data (iPad) Connector: USB (B type) (USB TO HOST); USB (A type) (iPad)
• Control I/O :Terminals: NETWORK, FOOT SW Format:IEEE802.3 (NETWORK) Level: 10BASE-T/100Base-TX (NETWORK) Connector: RJ-45 (NETWORK); TS Phone (FOOT SW )
• Dimensions :20.1 x 8.9 x 23.6" (510 x 225 x 599 mm)
• Net Weight :29.8 lb (13.5 kg)

Highlights:

• Touchscreen & 17 Motorized Faders
• 16 Analog XLR/TRS Combo Mic/Line Inputs
• 2 Analog RCA Pin Stereo Line Inputs
• 16 Analog XLR Outputs
• Per-Channel EQ /Comp & 8 FX Processors
• Recallable D-PRE Microphone Preamps
• Expandable Up to 40 Input Channels
• 34x34 Recording to Computer via USB 2.0
• Optional Tio1608-D I/O Rack
• Includes Steinberg's Nuendo Live
