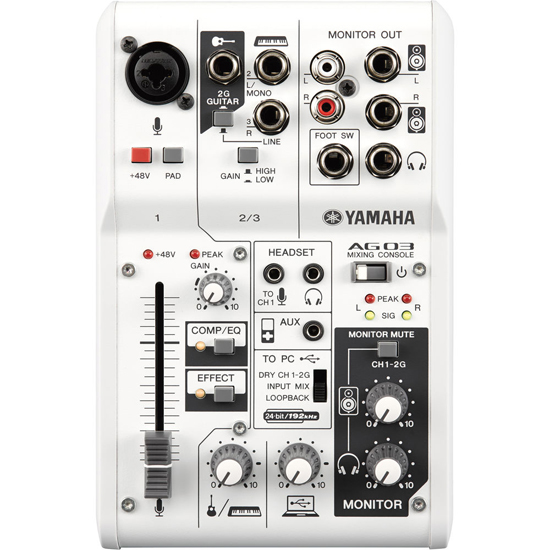

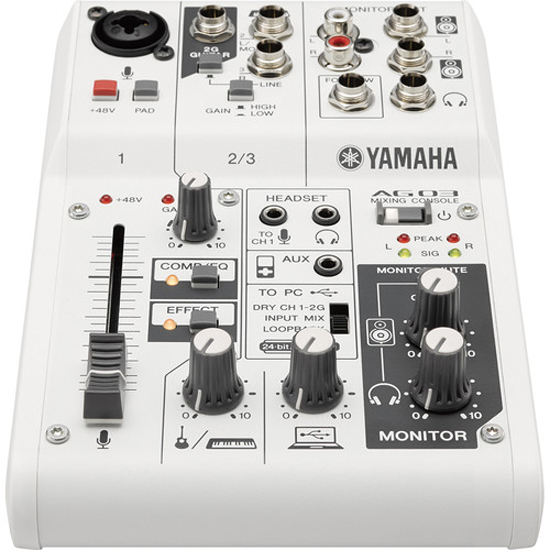

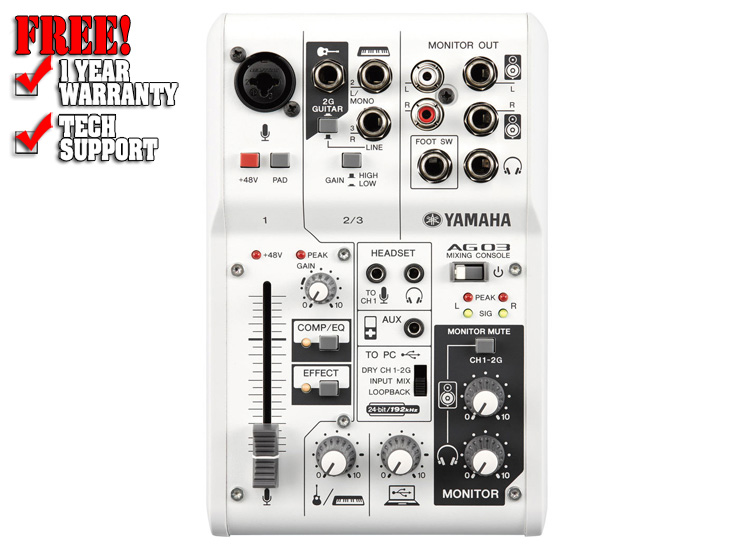

Yamaha AG03

The XLR/1/4" combo mic/line input is equipped with a D-PRE mic preamp that was originally designed by Yamaha for use in their high-end recording gear. This channel features switchable 48V phantom power for use with dynamic and condenser microphones, and also features a pad switch for recording loud sound sources such as guitar amplifiers.

The AG03 mixer has stereo 1/4" and stereo RCA outs for connecting to your PA system or monitor speakers. It also has a 1/4" headphone output with level control for personal monitoring, as well as an 1/8" aux input for monitoring portable devices and headset connectivity.

On-Board DSP

On-board 1-TOUCH DSP adds set COMP/EQ and EFFECT to signal path. For more precise control of these settings, the multi-platform AG DSP Controller software (download) allows users to access and edit the compressor, EQ, high-pass filter, and reverb

Perform and Broadcast Over Backing Tracks

LOOPBACK function allows users to broadcast their musical, or non-musical content live online along with backing tracks or additional audio from PC or Mac computers or an iPad

Specifications

• Type: Analog
• Channels: 3
• Computer Connectivity: 1 x USB
• Faders: 1 x 60mm
• Inputs - Mic Preamps: 1 x XLR/TRS Combo
• Phantom Power: Channel 1
• Inputs - Line: 3 x 1/4"
• Inputs - Other: 1 x 1/8" (Headset), 1 x 1/8" (Aux)
• Outputs - Main: 2 x 1/4", 1 x stereo RCA
• Headphones: 1 x 1/4", 1 x 1/8" (Headset)
• Effects: Yes
• Height: 2.5"
• Width: 5.1"
• Depth: 8"
• Weight: 1.8 lbs.
