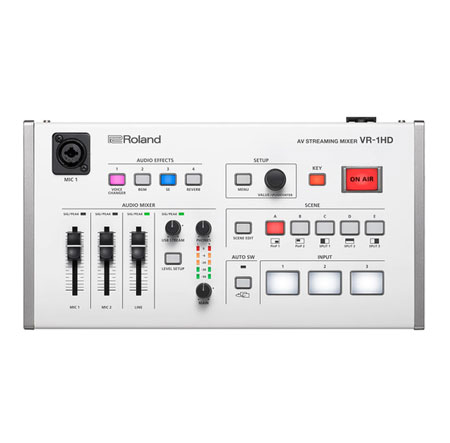

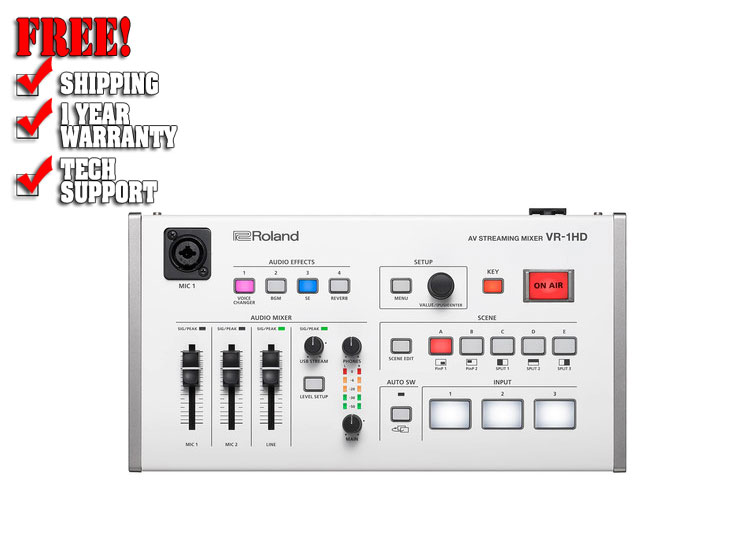

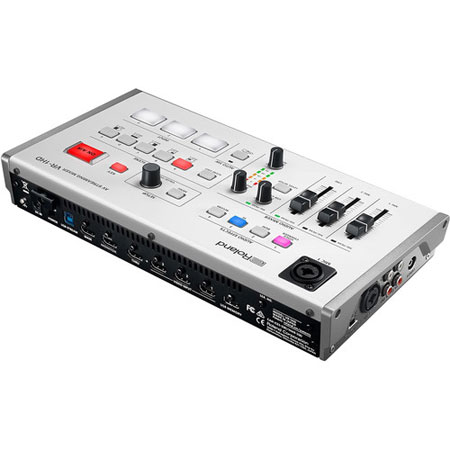

Roland VR-1HD AV Streaming Mixer

Engage your followers with pro-style switching of your live-streamed content using the VR-1HD AV Streaming Mixer from Roland. The VR-1HD AV mixer can switch up to three HDMI inputs and stream up to 1080p30 Full HD video.

Combine cameras, webcams, games, smartphones, and tablets. The VR-1HD AV mixer is compatible with multiple video formats and incorporates two XLR mic inputs and dedicated line inputs for adding professional audio to your stream.

Video Follows Audio, Beat Sync Switching, and Auto Scan modes provide three options for single-operator switching—no director is required. An Auto Mixing function enables you to preset audio preferences so your sound remains balanced with your selected channels receiving priority.

The VR-1HD AV Streaming Mixer features five Scene Presets that work with your editing software to create layered looks, a PiP (Picture-in-Picture) function, and a keying function. Control the mixer using your computer and pair it with a separately available top-mounted gooseneck mic for hands-free performing when using Auto Switching.

Features

• Real-Time Engagement: Command your audience's attention with live-switched content
• Plug-and-Play Broadcast Studio: Mix and match a variety of video and audio inputs via three HDMI ports and two XLR/TRS combo inputs
• Scene Switching & Effects: PiP (Picture in Picture), keying, and five preset scene buttons work with your editing software to produce dynamic, layered video
• Three Auto Switching Modes: Video Follows Audio, Beat Sync, and Auto Scan switching modes enable you to concentrate on your performance, even without a director
• Auto Mixing Audio Mode: Preset input priorities, eliminate input competition, and balance audio with the Auto Mixing function
• Audio Controls & Effects: Equalizers, Gate Settings, Compressors, Stingers, and Voice Transformers enable you to customize your audio output
• Full HD Broadcasting

Roland VR-1HD Specs

Video

• Video Processing 4:2:2 (YPbPr), 10-Bit

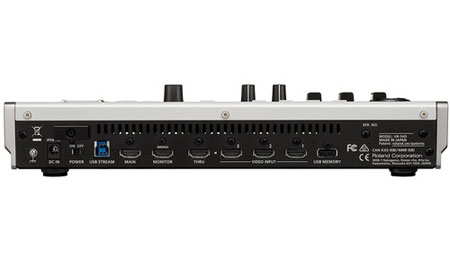

• Input Connectors HDMI: 3 x HDMI Type A (HDCP, Multi-Format Support)
• Output Connectors Main: 1 x HDMI Type A (HDCP Support)
• Monitor: 1 x HDMI Type A (HDCP Support)
• Thru: 1 x HDMI Type A (HDCP Support)
• Video Input Formats Input Conforms to SMPTE-296M/274M
• 1080p: 59.94/50
• 1080i: 59.94/50
• 720p: 59.94/50
• 576p: 50
• 576i: 50
• 480i: 59.94
• 60 Hz
• WUXGA (1920 x 1200)
• FHD (1920 x 1080)
• UXGA (1600 x 1200)
• SXGA+ (1400 x 1050)
• FWXGA (1366 x 768)
• (1280 x 1024)
• WXGA (1280 x 800
• HD (1280 x 720)
• XGA (1024 x 768)
• SVGA (800 x 600)
• VGA (640 x 480)
• Note: The Refresh Rate Is the Maximum Value of Each Resolution. Conforms to VESA DMT Version 1.0 Revision 11. 1920 x 1200, 60 Hz: Reduced Blanking. The Frame Rate Can Be Selected at the System Menu (59.94 or 50 Hz).
• Video Output Formats Main, Monitor
• 1080p: 59.94/50
• 1080i: 59.94/50
• 720p: 59.94/50
• 60 Hz
• WUXGA (1920 x 1200) *
• FHD (1920 x 1080) *
• UXGA (1600 x 1200) *
• SXGA+ (1400 x 1050) *
• FWXGA (1366 x 768) *
• SXGA (1280 x 1024) *
• WXGA (1280 x 8000) *
• XGA (1024 x 768) *
• VGA (640 x 480) *
• Note: The Video Signal Frame Rate Can Be Selected at the System Menu (59.94 or 50 Hz). * Output Refresh Rate Is 75 Hz When Frame Rate Is Set to 50 Hz.
• USB Stream
• 1080p: 29.97/25
• 720p: 59.94/50/29.97/25
• 854 x 480p: 59.94/50/29.97/25
• Note: The Video Signal Frame Rate Can Be Selected at the System Menu (59.94 or 50 Hz).
• Still Image Maximum Size: 1920 x 1200 Pixels
• Format: Windows Bitmap File (.bmp) 24-Bit per Pixel, Uncompressed
• Note: Up to Two Files from USB Can Be Loaded at Startup.
• Video Effects Scene: PiP, Split
• Transition: Black Fade, Mix Fade
• Key Composition: Luminance Key
• Other: Still Image Playback, Output Fade (Audio, Video: White or Black), Test Pattern Output

Audio

• Audio Processing 48 kHz, 24-Bit
• Audio Formats HDMI Inputs 1-3: Linear PCM, 48 kHz, 24-Bit, Stereo
• USB Stream: Linear PCM, 48 kHz, 16-Bit, Stereo
• Input Connectors Video Inputs 1-3: 3 x HDMI Type A

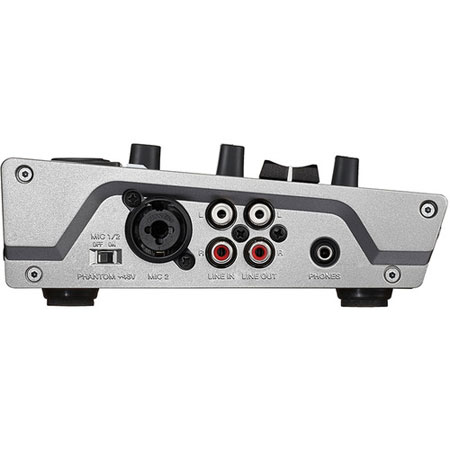

• Mic In 1-2: Combo 3-Pin XLR, 1/4" TRS Phone (+48 VDC, 10 mA Max. Phantom Power)
• Line In: 2 x Stereo RCA Phono
• USB Stream: USB Type-B
• Output Connectors Main: HDMI Type A
• Monitor: HDMI Type A
• Line Out: RCA Phono Type
• USB Stream: USB Type-B
• Headphones: Stereo Miniature Phone Type
• Nominal Input Level Mic In 1/2: -60 to +4 dBu (Maximum Input Level: +22 dBu)
• Line In: -10 dBu (Maximum Input Level: +8 dBu)
• Input Impedance Mic In 1/2: -Minimum 10 kOhms (Balanced, Head Amp Gain: 0 to +17 dBu), Minimum 5 kOhms
• Line In: -10 dBu (Maximum Input Level: +8 dBu)
• Nominal Output Level Line Out: -10 dBu (Maximum Input Level: +8 dBu)
• Headphones: 92 mW + 92 mW (32 Ohms)
• Output Impedance Line Out: 1 kOhms
• Headphones: 10 Ohms
• Audio Effects Auto Mixing, Echo Canceller, Howling Canceller
• EQ, Delay, Compressor, HPF, Gate
• Reverb, Limiter, Voice Changer
• Player 4 x Audio Players
• Data Format: WAV (Linear PCM, 48 kHz, 16-Bit Stereo/44.1 kHz, 16-Bit, Stereo)

General

• Other Connectors USB Memory: 1 x USB Type-A (For USB Flash Drive, Still Image, Audio Player, System Update)
• USB Stream: 1 x USB Type-B (For USB 3.0 Video, USB 2.0 Audio Stereo):
• 1 In/1 Out, Remote Control
• Input: 1 x Barrel
• Functions 5 x Scene Memory
• Panel Lock Function
• EDID Emulator
• Auto Switching (Auto Scan, Beat-Sync Switching, Video Follow Audio)
• AC Adapter Current Draw: 2 A
• Power Consumption: 24 W
• Operating Temperature 32 to 104°F / 0 to 40°C
• Dimensions (WxDxH) 12.4 x 6.7 x 2.6" / 31.4 x 16.9 x 6.6 cm
• Weight 3.5 lb / 1.6 kg

Packaging Info

• Package Weight 5.705 lb
• Box Dimensions (LxWxH) 19.3 x 16.6 x 11"
