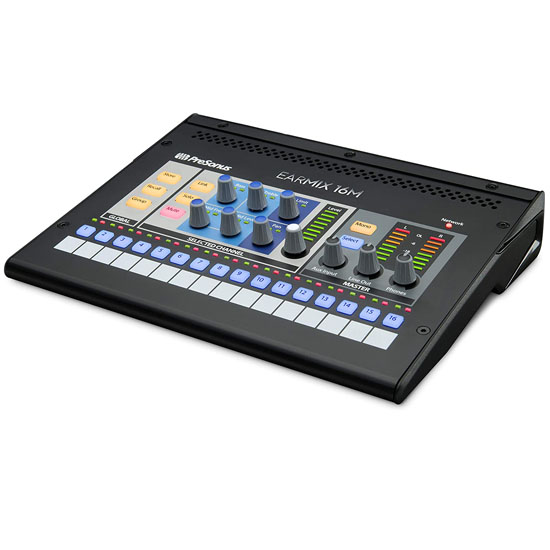

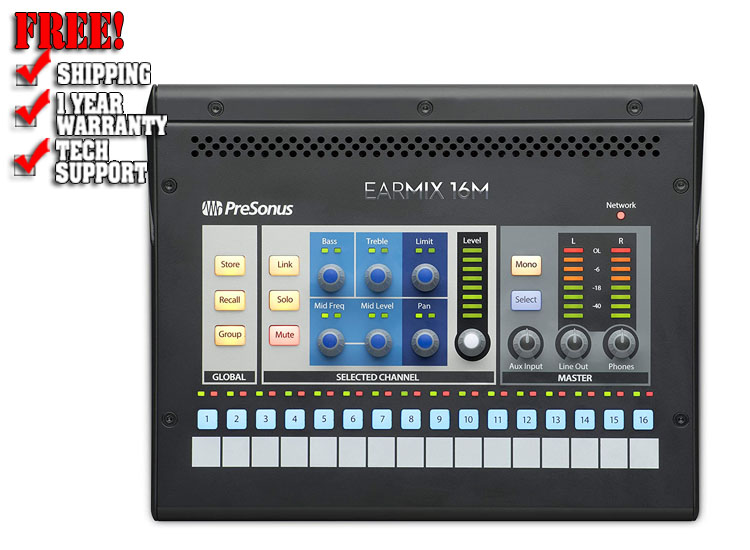

PreSonus EarMix 16M 16x2 AVB-Networked Personal Monitor Mixer

Features:

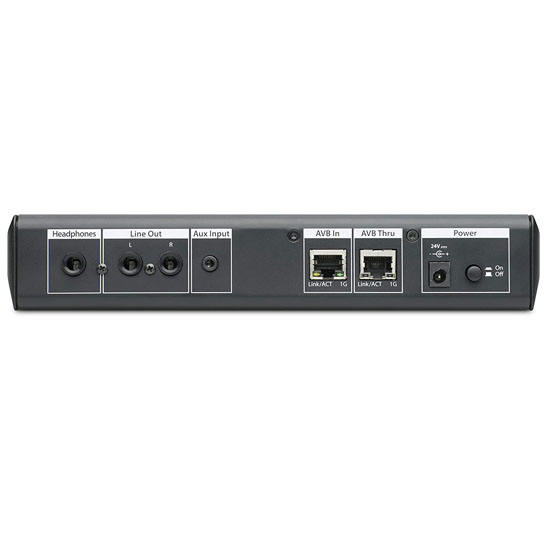

• Analog Input/Output
• 1/8" stereo aux input
• 2 x balanced 1/4" TRS line outputs
• 1/4" TRS stereo headphone output with loud, clear headphone amp that can drive low-impedance in-ear monitors

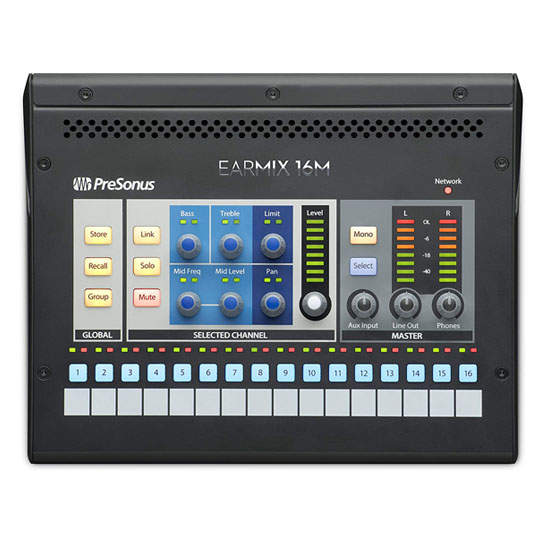

• Meters, Controls, and Processing
• 3-band EQ with sweepable mid frequency on all channels and main mix
• Limiter on all channels and main mix
• Stereo channel linking
• Channel grouping
• Solo and mute
• Mix scene Store and Recall; store up to 16 mix scenes locally
• 16 x signal present and clip LEDs (one for each input)
• 8-segment stereo output meter
• Channel Level rotary control with 8-segment level indicator
• Aux input level control
• Independent monitor (line out) and phones level controls
• Routing setup from StudioLive Series III consoles and UC Surface
• Digital
• 16 x mono channels of input via AVB networking
• 2 x AVB Ethernet ports
• 24-bit, up to 48 kHz operation
• Power
• External 24 VDC power supply (included)
• Support for PoE power
• Physical
• Optional mic stand mount (sold separately)

Specifications:

• Type: Personal Monitor Mixer
• Compatibility: StudioLive Series III
• Number of Ports: 1 x AVB In, 1 x AVB Thru
• Connection Type: Ethernet AVB network
• Input Channels: 16
• Output Channels: 2
• Analog Inputs: 1 x 1/8" (stereo aux in)
• Analog Outputs: 2 x 1/4" TRS (line out)
• Headphones: 1 x 1/4"
• Form Factor: Desktop
• Power Source: 24V DC power supply / PoE support
• Height: 1.8"
• Width: 9.4"
• Depth: 7.6"
• Weight: 1.2 lbs.
