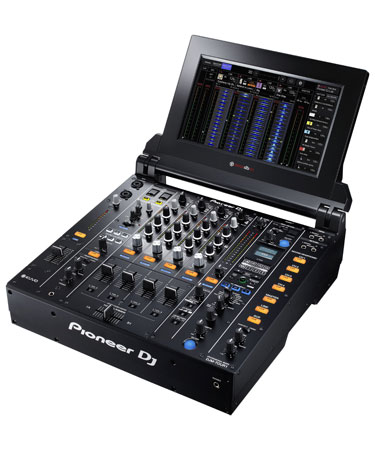

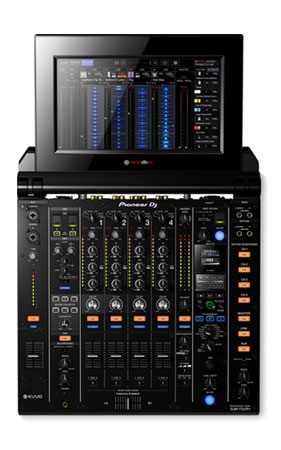

Pioneer DJM-TOUR1

Description

PLAY MAIN STAGE

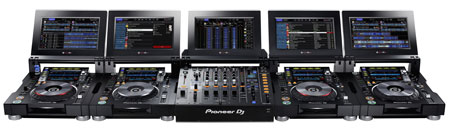

Tour from festival to arena with the DJM-TOUR1 and perform at the highest level. Connect up to 4 CDJ-TOUR1's via Pro DJ Link and enjoy a sturdy, reliable set-up every single performance.

The DJM-TOUR1 delivers the warm high-resolution sound you're used to, and adds pro-grade audio components to scale up for any size of event. It even features an AES/EBU digital output so you can connect directly to front of house with no loss of sound quality, and 2 independent headphone sections that let you monitor and cue tracks separately.

Plus with the same familiar layout and features as the DJM-900NXS2, and a large fold-out touch screen you get effortless control when it matters most.

Key Features:

WARM SOUND AT ANY VENUE

A 32-bit D/A convertor, made by ESS Technologies, delivers incredibly low noise and distortion even at super-high volumes. Additionally the 96 kHz/24-bit sound card, 64-bit floating point mixing processing, enhanced dithering technology and a low-jitter clock combine to provide an accurate, natural analogue sound.

CONNECT TO FRONT OF HOUSE

The AES/EBU digital output lets you connect directly to the PA, regardless of its positioning. Together with the word clock input it ensures high-grade digital audio signal transmission to front of house for precise synchronisation and the best possible sound quality.

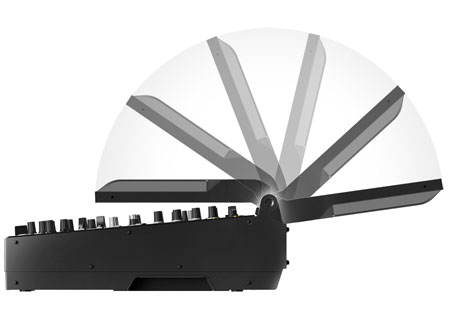

13-INCH FOLD-OUT TOUCH SCREEN

Use multicoloured touch display to browse and select tracks from up to 4 CDJs connected via Pro DJ Link. Choose between a horizontal multi-wave view or a vertical view that also includes an RMS meter so you can monitor and control the volume for each channel.

5-PORT LAN HUB

A 5-port LAN hub means you can connect up to 5 players or laptops to the DJM-TOUR1. Via Pro DJ Link you can share one source across up to 4 players - and if you're using rekordbox dj you get access to a host of advanced performance features on top.

EASY B2B CUEING

2 independent headphone sections let you and another DJ cue tracks at the same time without hearing each other's input. Each headphone also has its own volume control for ease and comfort.

FLEXIBLE CONNECTIVITY

Hook up your choice of external devices including drum machines, effectors, synths and samplers using XLR/TRS combination Aux-in.

Specifications:

Main Features:

• MIDI Control: Full assignable MIDI controls
• DVS Control: rekordbox dvs (not included)
• ProDJ Link: Yes
• P-LOCK Fader Caps: Yes
• Auto Standby: Yes

Specifications

• Dimensions (with fold-out screen): When upper display part is closed (W x D x H): 445.2 x 451.6 x 179.1 mm
  When upper display part is upright at 90 degrees (W x D x H): 445.2 x 457.8 x 418 mm
  When upper display part is fully open (W x D x H): 445.2 x 694.5 x 203.1 mm
• Weight: 35.49 lb
• Frequency Range: 20 - 40000 Hz
• Sampling Rate: 96 kHz
• A/D Converter: 24 bit
• D/A Converter: 32 bit
• S/N Ratio Line: 105 dB
• S/N Ratio Phono: 88 dB
• S/N Ratio Mic: 79 dB
• Distortion: < 0.005 % (LINE)
• Power Consumption: 66 W

Channels

• EQ/ISO: 3 band
• EQ/ISO Range: Built-in, switchable 3-band equaliser: -26 dB ~ +6 dB / 3-band isolator: -8 ~ +6 dB

Performance Control

• Channels: 4
• Sound Color FX: Crush
  Dub Echo
  Filter
  Noise
  Sweep
  Space
• Beat FX: Delay
  Echo
  Filter
  Helix
  Phaser
  Ping Pong
  Pitch
  Slip Roll
  Spiral
  Reverb
  Roll
  Trans
  Vinyl Brake
• FX Frequency: Yes
• X-PAD: Yes
• rekordbox Quantize: Yes

Crossfader

• Crossfader Type: Magvel Fader
• CURVE Assignable: Yes
• Fader Curve: 3

Mic

• Mic Connection: XLR / 1/4-inch Jack Combo
  1/4-inch TRS Jack
• Talkover: 3 Position Switch
• Talkover Attenuator: Yes

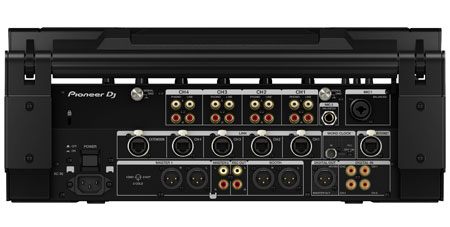

Terminals

• Inputs: 4 Digital (Coaxial)
  4 CD/LINE (RCA)
  4 PHONO (RCA)
  1 AUX (XLR, 1/4 inch TRS Jack)
  2 MIC (XLR/TRS Jack Combo, 1/4 inch TRS Jack)
  1 Word Clock (BNC)
• Send/Return: 1 SEND (1/4-inch TS jack)
  1 RETURN (1/4-inch TS jack)
• LAN: 6
• USB: 2 USB B ports
  1 USB A port
• Outputs: 2 MASTER (XLR, RCA)
  1 BOOTH (XLR)
  2 HEADPHONE MONITOR (1/4 inch Jack, mini-jack)
  1 HEADPHONE MONITOR (1/4 inch Jack)
  1 REC (RCA)
  1 Digital (XLR)
