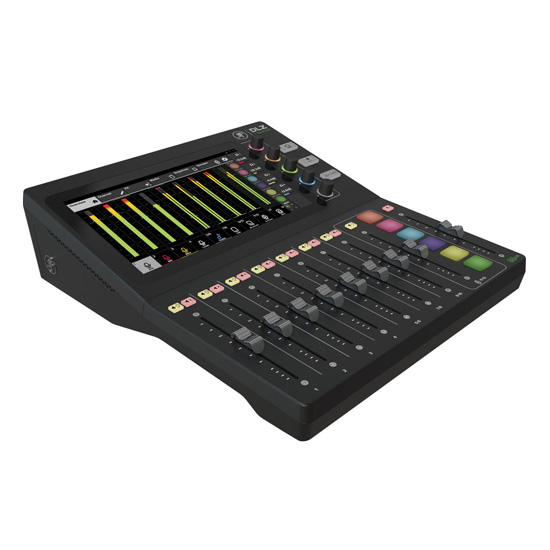

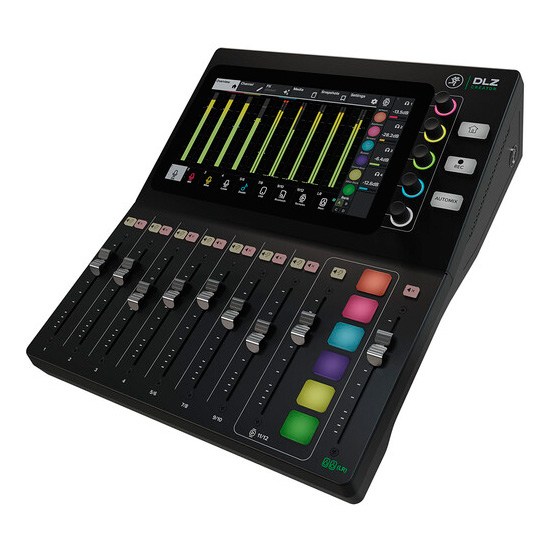

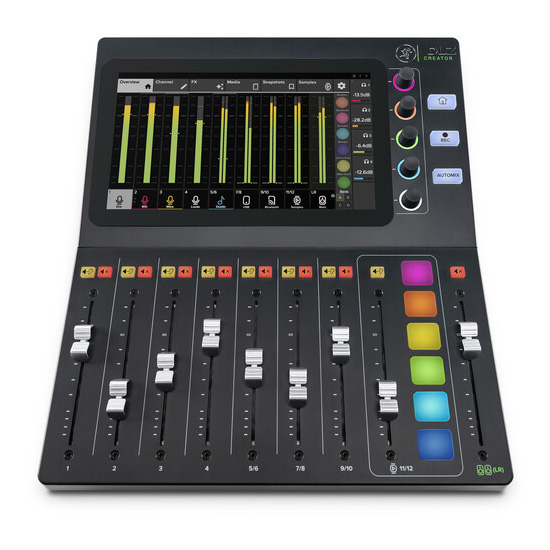

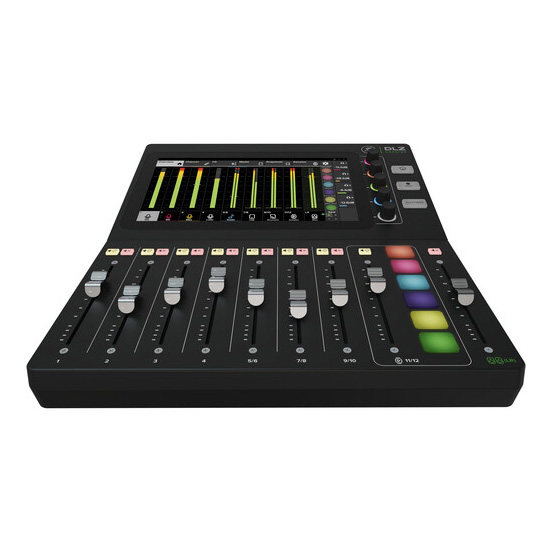

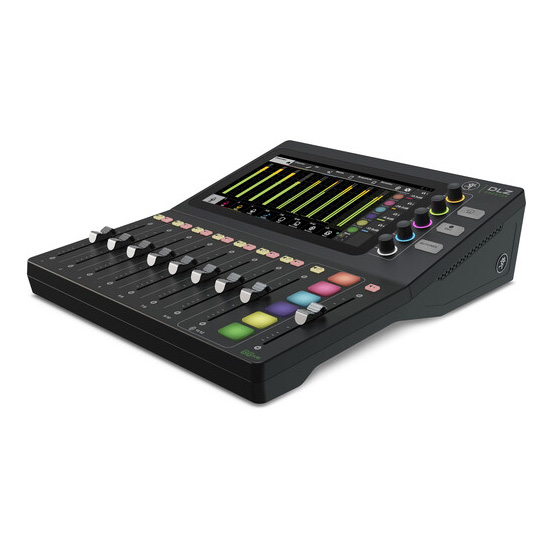

Mackie DLZ Creator

Adaptive Digital Mixer For Podcasting and Streaming, Featuring Mix Agent™ Technology

The DLZ Creator Adaptive Digital Mixer for Podcasting and Streaming enables you to get the results you want—faster than ever.Inspired in part by smartphone and DSLR cameras that make great results accessible to anyone, DLZ Creator transforms the on-screen controls to meet your creative style or skill level—without compromising processing power or sound quality. DLZ Creator is designed to make you a better content producer. Mix Agent™ is your personal audio assistant that guides you through setup, including setting your gain levels.

AutoMix manages levels for up to 4 mics, so everyone can always be heard. Using Mix Minus with your Bluetooth®-connected smartphone brings a caller into your mix with no audible echo. to computer, SD card, or USB flash drive.

Three Versatile Modes:

• Easy
  • A no-fuss user interface that offers the fastest path to recording your first podcast. For those who want to get great results without menu-diving.
• Enhanced
  • Expanded control over your sound and mix. For those who want some customization without an overwhelming number of options.
• Pro
  • Total control and fully customizable. For those who know what they want, and how to get it.

Features:

• Get pro results at any experience leve

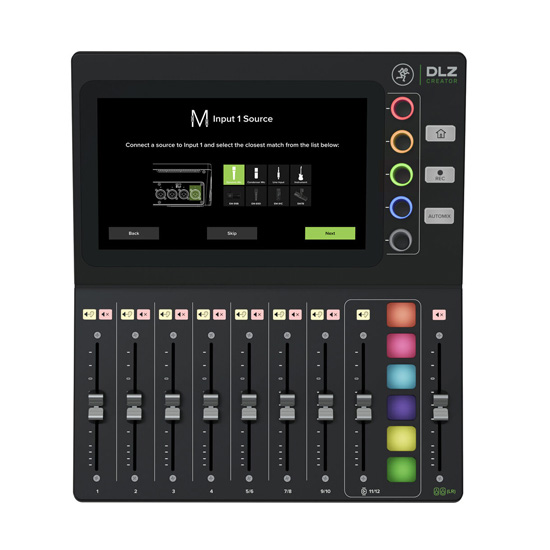

• Mix Agent™ assists in setup and more
• AutoMix manages levels for up to 4 voices
• Connect call-in guests via Bluetooth
• Record/stream to computer, flash drive or SD card
• 4 Onyx80 mic preamps
• 10.1" touchscreen

APPLICATIONS:

Podcasting, broadcasting, live streaming, and many, many more.

Specifications:

• General Digital
  • Sample Rate: 48 kHz
  • A/D/A Bit Depth: 24-bit
  • System Latency: ~3 ms
  • Equivalent Noise: –143.4 dBV (A-weighted]

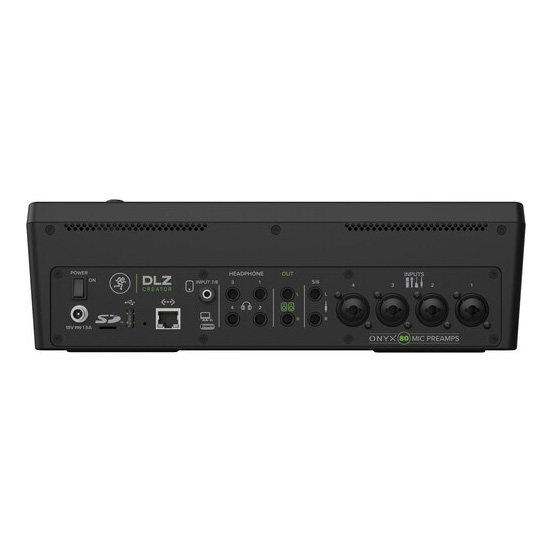

• Inputs
  • Inputs: 4x balanced/unbalanced combo jacks, 1/4" balanced/unbalanced stereo jack, 1/8" stereo jack
  • XLR Mic Pre: Onyx 80 mic preamps
  • Input Impedances: 4 kΩ balanced (microphone), 10 kΩ balanced (instrument), 5 kΩ unbalanced (instrument)
• Outputs
  • Outputs:Balanced/unbalanced, 4x stereo headphone jacks
  • Line Output Maximum Level: 14 dBu
  • System Latency: ~3 ms
  • Headphone Output Power: 30 mW
• Bluetooth • USB • SD
  • Bluetooth: 5.0
  • USB: Format: USB 2.0 HS (480Mb/s)
  • SD: Multitrack (12 chan + main mix) / 24-bit / 48kHz, SD speed class 10 or speed class UHS recommended
• Recording / Networking
  • Recording Storage: microSDHC, microSDXC, USB-A removable drive (FAT32 – minimum 100MB/s)
  • Data Transfer: Integrated SD 3.0 104 MB/s
  • Network Connectivity: Ethernet 10/100
• Power Requirements
  • Line Input Power: 18V 1.5A

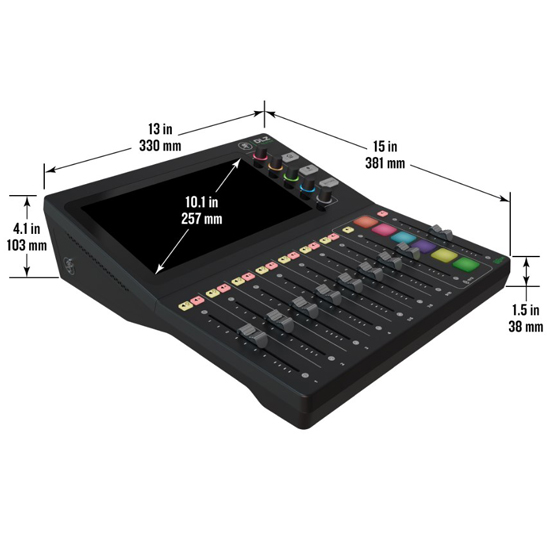

• Physical Properties (product)
  • Height : 4.1 in / 103 mm
  • Width : 13.0 in / 330 mm
  • Depth : 15.0 in / 381 mm
  • Weight : 6.1 lb / 2.8 kg
• Physical Properties (packaged product)
  • Height : 8.5 in / 216 mm
  • Width : 15.2 in / 386 mm
  • Depth : 15.7 in / 399 mm
  • Weight : 10.9 lb / 4.9 kg
• Options
  • DLZ Creator Backpack P/N 2056135
