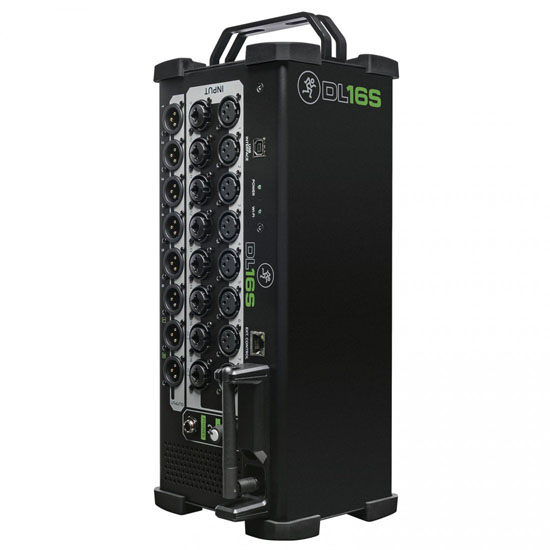

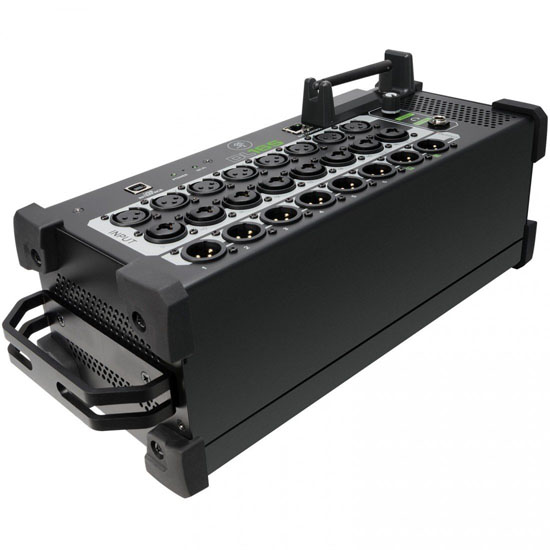

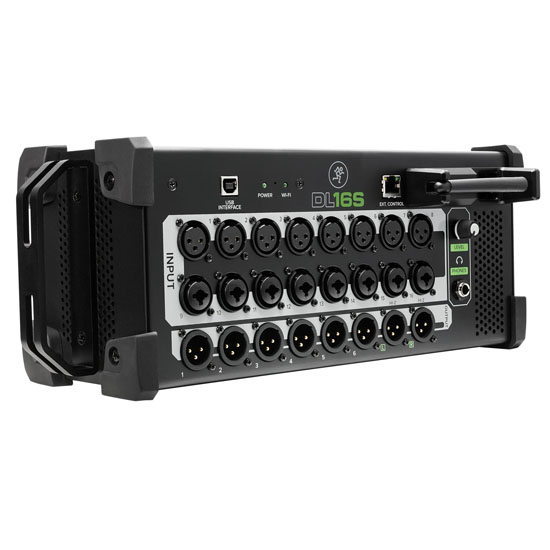

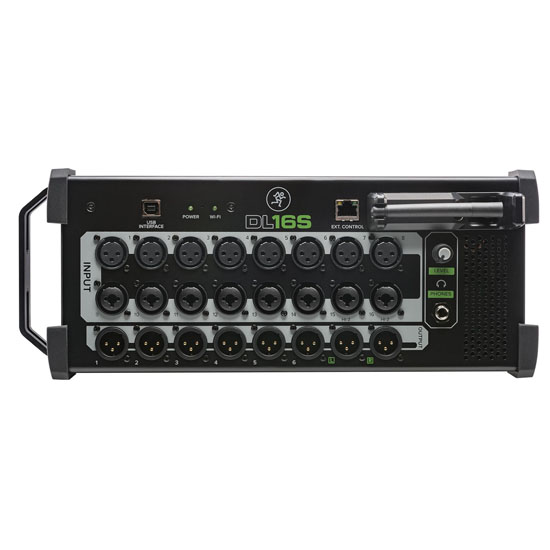

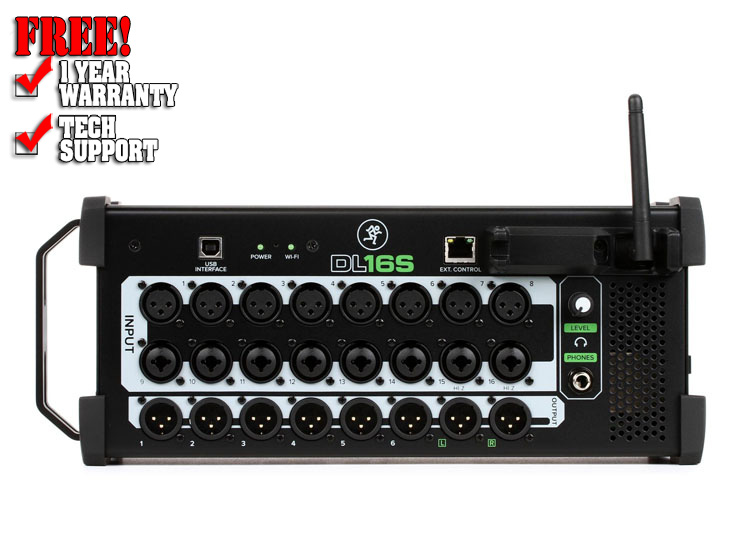

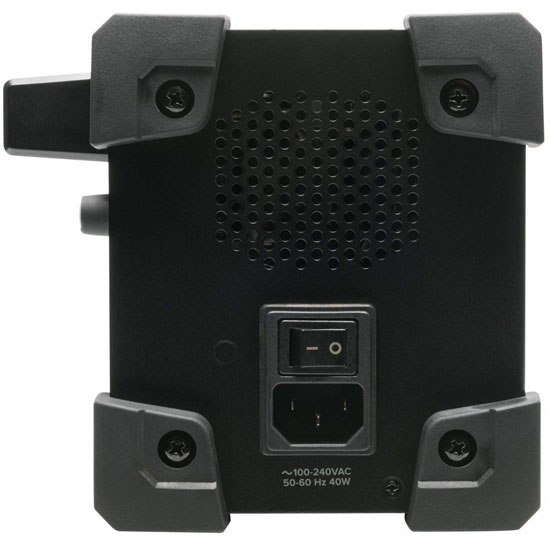

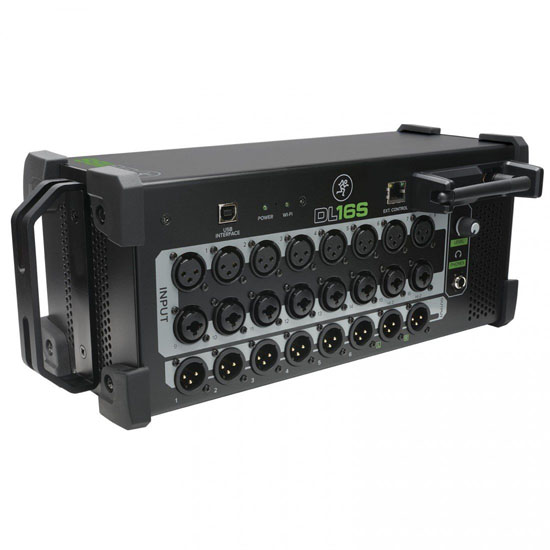

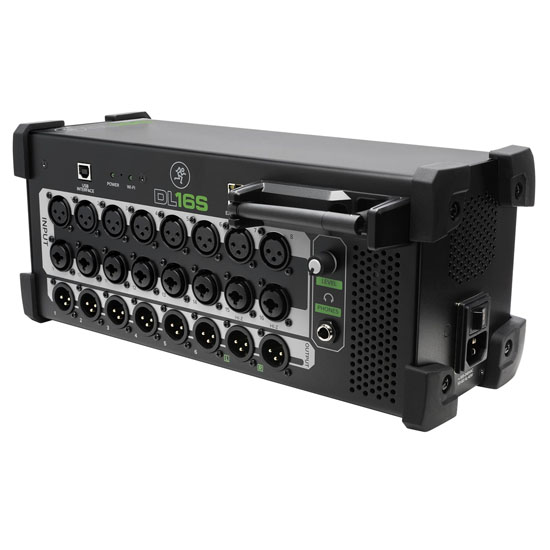

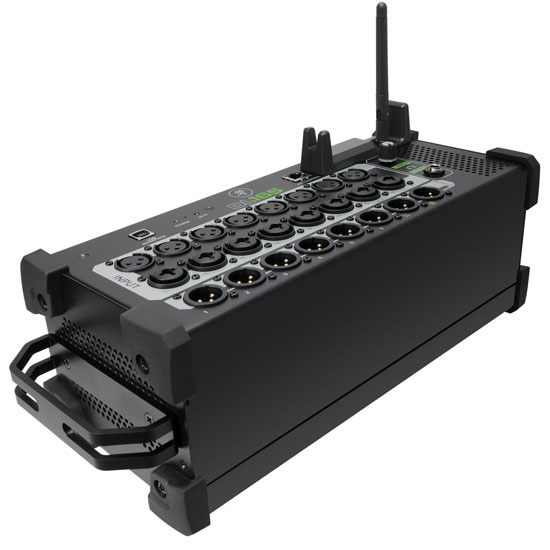

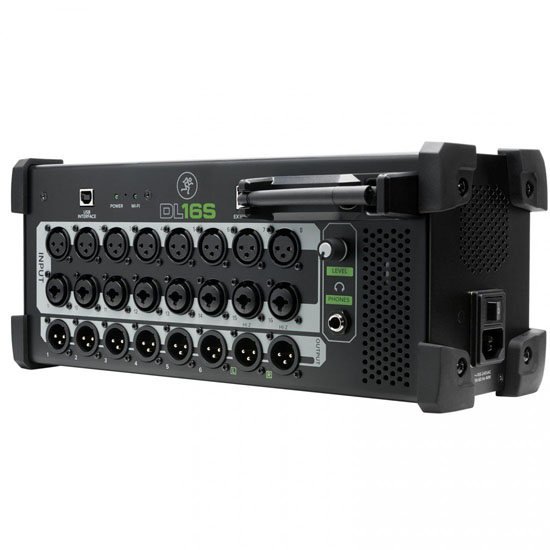

Mackie DL16S 16-channel Rackmount Digital Mixer

Description

The Mackie DL16S delivers 16-channels of proven DL Series digital mixing in an all-new Built-Like-A-Tank, stage-friendly design. Get mixing right out of the box with built-in Wi-Fi networking and full multiplatform support on the industry-leading Master Fader control app. Fully loaded with DSP on each of the 16 Onyx+ mic preamps and 13 busses plus 4 FX processors, the DL16S delivers the mixing power you need to sound great every night. Create stunning multitrack recordings via 16x16 USB I/O and even play them back into each channel for an effortless virtual sound check. The Master Fader app delivers extremely intuitive control over everything on up to 20 devices simultaneously, including the ability to digitally recall each and every setting for incredibly fast setup. Take command of your live mix with the Mackie DL16S.

Features:

• 16-Channel Wireless Digital Mixer.
• 16 Onyx+ recallable mic preamps.
• 8 fully-assignable XLR outputs plus headphone output.
• Industry-leading Master Fader control app.
• 16x16 USB recording.
• Ditch the snake - Place it anywhere on stage or in a rack.

Wireless Mixing

• Complete control via iOS, Android, Mac, or PC.
• No set FOH position - mix from anywhere.
• Supports up to 20 separate devices at once.
• Multiple engineers can work from a single mixer.

Multi-Track Recording & Playback

• 16x16 USB 2.0 audio interface for Mac or PC.
• Record the show for later mixdown.
• Play back intermission music, backing tracks and more directly into a dedicated stereo return channel.
• Perform a virtual sound check.
• Amazing low-cost, high channel count studio recording solution.
• Utilize Mac or PC audio plug-ins in a live environment.

Master Fader Control App

• Intuitive and easy to master.
• Fast navigation with view groups and overview.
• Quick setup with tons of factory and user-definable presets.
• Access Limiting allows flexible customization of user interface and prevents unwanted adjustments from other users.
• Quickly access channel processing, signal routing, and a massive suite of great sounding effects with presets to get you started.
• Export presets, shows and complete system backups via Dropbox, email and more.
• Complete offline operation.
• Easy and frequent updates.
• Available on iOS, Android, macOS, and Windows.

Specifications

• Type: Digital Stage Box Mixer
• Channels: 16 input channels, 32 mixing channels
• Inputs - Mic Preamps: 8 x XLR, 6 x XLR-1/4" combo, 2 x XLR-1/4" combo (mic/line/Hi-Z)
• Outputs - Main: 2 x XLR (L/R, assignable), 6 x XLR (assignable)
• Aux Sends: 6 x Stereo Sends
• Busses/Groups: 6 x Stereo Sub Groups, 13 x Output Busses, 6 x Mute Groups
• Data I/O: 1 x RJ45 (external control)
• USB: 1 x Type B
• Computer Connectivity: USB (16 x 16), Wi-Fi
• Headphones: 1 x 1/4"
• EQ Bands: 4-band Parametric EQ, Highpass Filter
• Effects: 4 x Stereo FX Processors, Reverb, Delay, Chorus, Flange
• Signal Processing: Gate, Compressor
• Software: Master Fader 5 Control App (iOS 11 or later, Android 6.0 or later, macOS 10.2, Windows 10)
• Height: 5.6"
• Depth: 5.8"
• Width: 14.1"
• Weight: 6.2 lbs.
