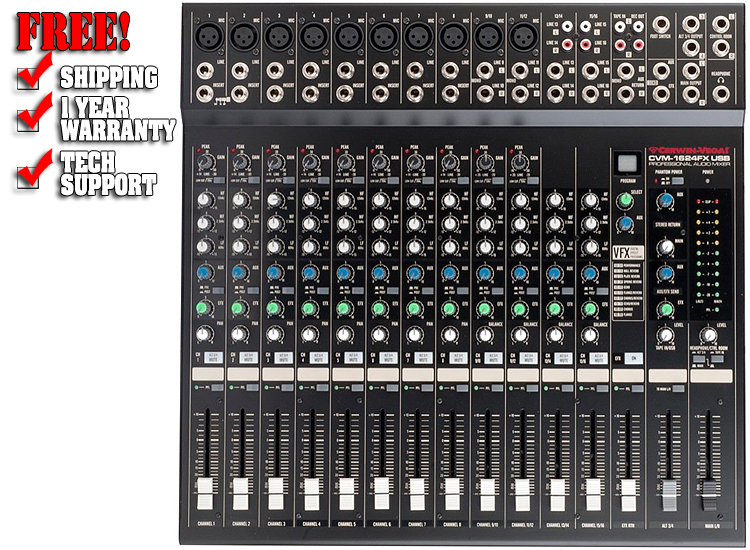

Cerwin Vega CVM-1624FXUSB

Description

The Cerwin Vega CVM-1624FXUSB mixer is the flagship of Cerwin-Vega!'s professional audio mixer line, the CVM-1624FXUSB 16-Channel Professional Audio Mixer contains the most microphone XLR inputs as well as the same 3-band equalization and AUX & EFX bus flexibility found in other Cerwin-Vega! mixers. Built with the same rugged metal construction, this 16-channel mixer is everything you need to take control of your sound.

Features:

• 3-Band channel equalizer providing +/- 15 dB (HF, LF) and +/- 12 dB (MF) per channel
• Peak LED indicator to check on the signal input of each microphone channel
• Individual channel and main level control using 60mm faders
• Gain (trim) level control with sensitivity markings for both microphone and line inputs
• Low Cut (HPF) switch @75Hz to eliminate background microphone rumble
• AUX and EFX controls to adjust the level of the signal sent to the respective bus
• PAN control (mono channel) to position the signal across the master left and right bus
• BALANCE control (stereo channel) to adjust the level between left and right signals
• Switchable Phantom power (+48V) switch for safe and easy connection of condenser microphones
• Level control for headphone and control room connections
• 8 mono and 4 stereo line input with 10 XLR microphone inputs
• MAIN L/R 1/4 in. jack and XLR output
• Alt 3-4 1/4 in. jack output
• Tape In stereo RCA jacks for connection to a CD or MP3 player
• Rec Out stereo RCA jacks for connection to a recorder
• 1/4 in. Stereo headphone & Balanced 1/4 in. control room out

  Advanced Features:
• PRE/POST switch to set the AUX signal as pre- or post-fader for foldback /monitoring mix or to preserve the wet-to-dry ratio on AUX sends
• PFL (pre-fade listen) switch with adjacent indicator to allow the engineer to listen to each channel before it reaches the main mix
• Built-in VEGA-effects 24-bit digital signal processor with 100 selectable programs including reverb, echo, chorus and flange
• 100mm VEGA-effects master fader and remote footswitch on/off control for effects return
• 16-bit, 44.1kHz USB connection for computer playback and recording (class compliant)
• Detachable rack ears for mounting in a standard 19 in. rack enclosure
