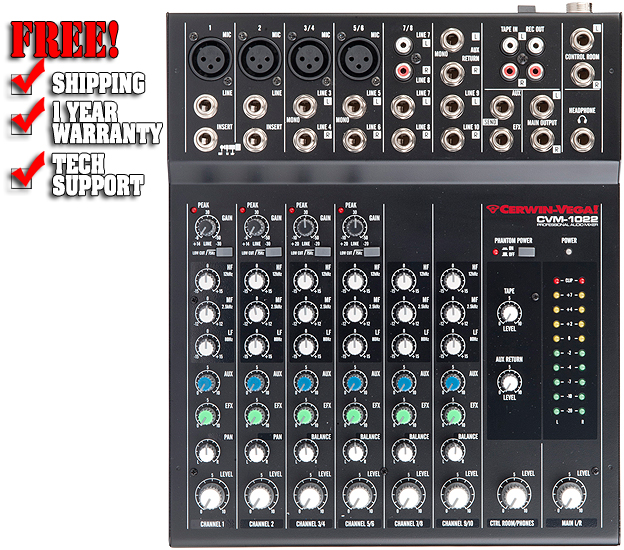

Cerwin Vega CVM-1022

Description

Built to support one or multiple users, the CVM-1022 10-Channel Professional Audio Mixer is compact to fit your work area and built-tough to travel from gig to gig. Featuring the same 3-band equalization and AUX & EFX bus flexibility as the larger models, this 10-channel mixer is everything you need to take control of your sound.

Performance Data:

• 2 mono and 4 stereo line input with 4 XLR microphone inputs
• MAIN L/R ¼" jack output
• TAPE IN stereo RCA jacks for connection to a CD or MP3 player
• REC OUT stereo RCA jacks for connection to a recorder
• ¼" Stereo headphone & Balanced ¼" control room out

Features:

• 3-Band channel equalizer providing ±15 dB (HF, LF) and ±12 dB (MF) per channel
• Peak LED indicator to check on the signal input of each microphone channel
• Individual channel and main level control
• Gain (trim) level control with sensitivity markings for both micrphone and line inputs
• Low Cut (HPF) switch @75Hz to eliminate background microphone rumble
• AUX and EFX controls to adjust the level of the signal sent to the respective bus
• PAN control (mono channel) to position the signal across the master left and right bus
• BALANCE control (stereo channel) to adjust the level between left and right signals
• Switchable Phantom power (+48V) switch for safe and easy connection of condenser microphones
• Level control for headphone and control room connections
• Power Source: 100-120VAC or 220-240VAC, 50/60Hz.
• Weight (net): 6.2 lbs
• Dimensions (HxWxD): 9.7 x 2.5 x 11.4 in
• PDF Manual
