Allen & Health Xone:23C

Legendary Analogue Sound

The Iconic Xone Filter

At the heart of the mixer is the renowned analogue Voltage Control Filter (VCF) system offering Low-Pass and High-Pass filters, frequency sweep and 'mild to wild' resonance control. There is also an FX loop to connect to third party FX units, which route back in through the filter system.

3 Band Total Kill EQ

Creative Equalisation

Both channels feature 3 band Isolator EQ, allowing you to creatively eliminate frequencies and bring them back into the mix with complete control, perfect for bass line swapping and creative transitions.

Flexible Routing

Double Up On Inputs

The 2 stereo channels feature independent level controls for each input enabling up to four stereo sources to be simultaneously routed to the mix, as well as the dedicated send and return system for external FX.

Additionally, the internal soundcard enables replay and recording from DJ software, offering users all the benefits of digital DJing whilst using hands-on mixer controls.

Analogue Connections

Get Yourself Connected

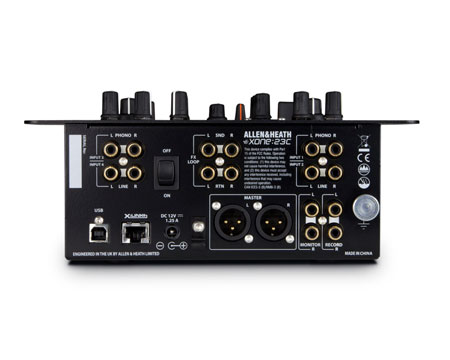

The main mix output and mic input are on professional standard balanced XLR's, and there is a dedicated record output. The Xone:23C is equipped with comprehensive monitoring facilities, including a booth output with its own volume control, a cue mix control, and signal levels clearly displayed on the 9 segment peak hold meters.

You can also seamlessly integrate your favourite external FX unit into your setup with send and return connections plus FX loop switching.

Features

• 3-band 'total kill' EQ
• Mic/Aux channel
• Xone:VCF analogue filter
• Booth and Record outputs
• External FX loop
• MIDI. USB X:Link
• 4 channel 24-bit/96kHz soundcard
• Supports Traktor Pro 3 & Virtual DJ
• DVS compatible
