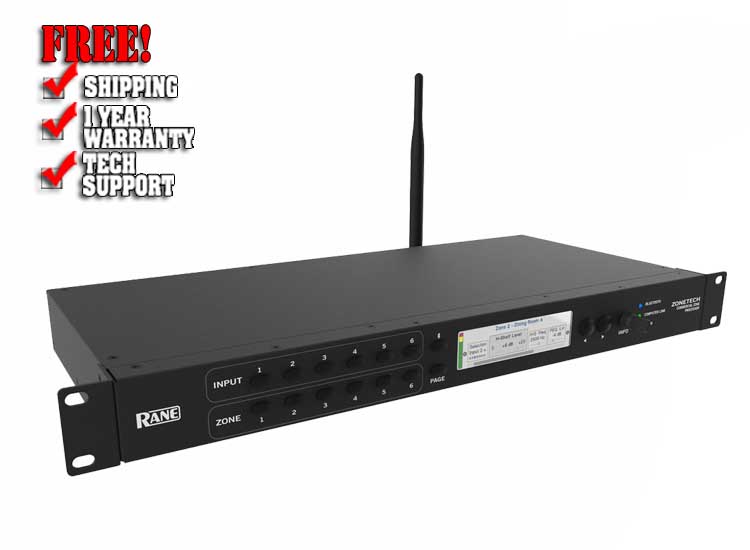

The Rane Commercial Zonetech is a 1 RU 6-channel, 6-zone, Bluetooth-enabled commercial processor designed to provide multi-source, multi-zone routing and convenient remote control options for system designers, installers, and technicians in restaurants, clubs, educational facilities, houses of worship, and conference rooms. It supports master and per-zone remotes, multiple users, and the ability to lock out unauthorized users.

Connect wired stereo sources such as CD/DVD players or mixers to the four pairs of unbalanced RCA inputs and mic/line sources to the two balanced Euroblock inputs. Stream music wirelessly from a smartphone or tablet via the integrated Bluetooth receiver. Outputs for all six zones are balanced and utilize Euroblock ports; the fifth zone output can be mono or stereo with a high- or low-pass filter.

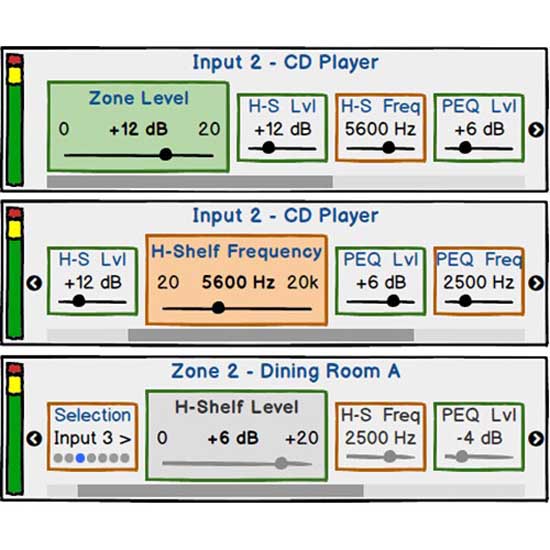

Access metering, zone levels, and EQ controls via front-panel controls and the high-resolution color LCD or Ethernet-connected remotes. The Zonetech also supports control via web browser on a laptop or mobile device.

Features

• Multi-source, multi-zone distribution in a 1 RU enclosure
• Embedded Halogen Lite software requires no programming
• Web server provides configuration and control with secure multi-level access
• Stream media using Bluetooth, AirPlay, UPnP, and DLNA
• Four unbalanced stereo RCA inputs for sources such as CD players and mixers
• Two balanced inputs for mic, line, or line-plus signals
• Integrated Bluetooth receiver supports wireless connection with Bluetooth-enabled devices
• Six balanced zone outputs

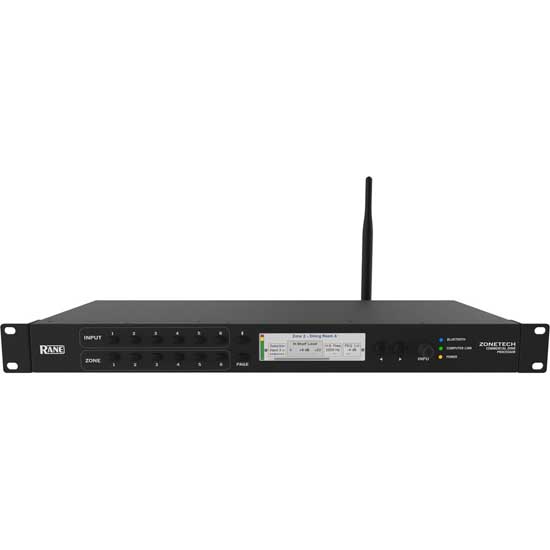

• High-resolution color LCD and front-panel controls offer access to all parameters
• Single mono/stereo zone output with high- and low-pass modes
• Built-in mixer with metering, zone level, and EQ controls
• Master remote port for complete control using a Rane DR6 touchscreen (available separately)
• Pager port connects an optional Rane RAD device to provide analog audio and logic inputs
• Six zone remote ports for source and volume control
• LAN port for computer or wireless access to web controls
• Logic input for muting all outputs
• Multi-user capability with option to lock out unauthorized users

Specification

• Rack Size : 1 RU
• Digital Signal Processing : 32-bit, floating point, double precision

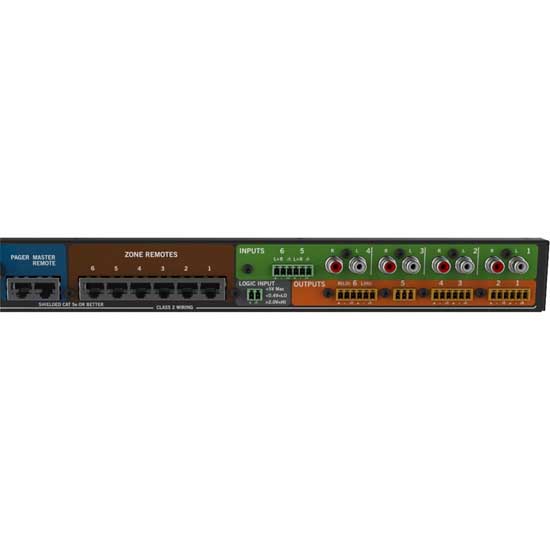

• Inputs: 4 x RCA coaxial stereo pairs (unbalanced)
  1 x 6-pin 3.8 mm Euroblock input (balanced mic/line level, green)

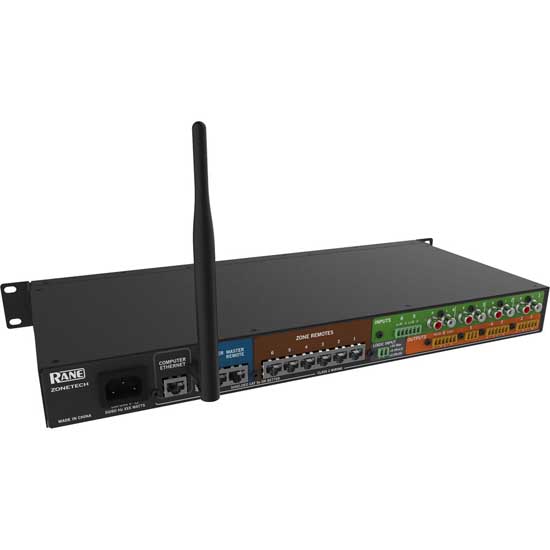

• Outputs: 3 x 6-pin 3.8 mm Euroblock outputs (Zones 1-4 & 6, balanced line level, orange), 1 x 3-pin 3.8 mm Euroblock output (Zone 5, balanced line level, orange)
• Remote Connections : 6 x RJ45 zone remote ports (control via DZRH), 1 x RJ45 master remote ports, 1 x RJ45 pager, 1 x RJ45 computer Ethernet
• Logic Input : 1 x 2-pin 3.8 mm Euroblock input (TTL, digital logic, black), +5 V maximum < 0.4 V = Lo > 2 V = Hi
• Bluetooth Version : 4.0
• Bluetooth Protocol : A2DP
• Bluetooth Range : Up to 100' / 30.5 m
• Transmission Power : Up to 4 dBm (Class 2)
• Bluetooth Frequency : 2.4 to 2.48 GHz
• Maximum Input Level : +20 dBu
• Maximum Output Level : +20 dBu
• Impedance : 200 Ohms (each leg to ground)
• Frequency Response : 40 Hz to 16 kHz (+0 dB, -3 dB)
• Dynamic Range : 111 dBA
• THD + N : 0.005% (+4 dBu output, 1 kHz)
• Display Type: RGB TFT, W x D: 3.9 x 1.2" / 99 x 30 mm, Diagonal: 4.1" / 104 mm, Resolution: 480 x 128
• Controls : Input 1-6, Output 1-6,Page, Bluetooth, Cursor left/right Info
• Indicators : Bluetooth, Computer Link, Power
• Operating Temperature 32 to 113°F / 0 to 45°C (non-condensing)
• Power Requirement 100 to 240 VAC, 50/60 Hz
• Power Consumption 50 W
• Dimensions (W x D x H) 19.0 x 8.7 x 1.7" / 482 x 220 x 44 mm
• Weight 6.1 lb / 2.8 kg
• Package Weight : 8.85 lb
• Box Dimensions (LxWxH) 21.5 x 11.2 x 4"
