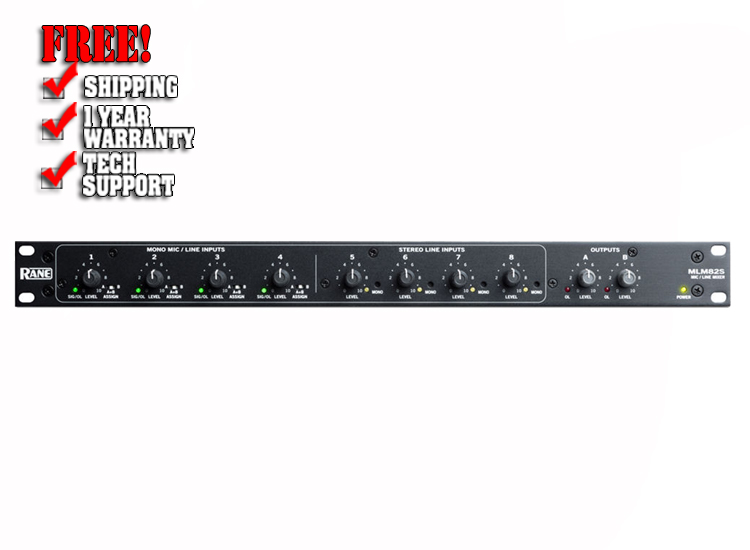

Rane Commercial MLM82S Mic & Line Mixer

The Rane Commercial MLM82S is a versatile mixer that offers a variety of mic/line input and assignable output options, ideal for installations requiring ease of use and compact size, in hotels, conference rooms, schools, and more.

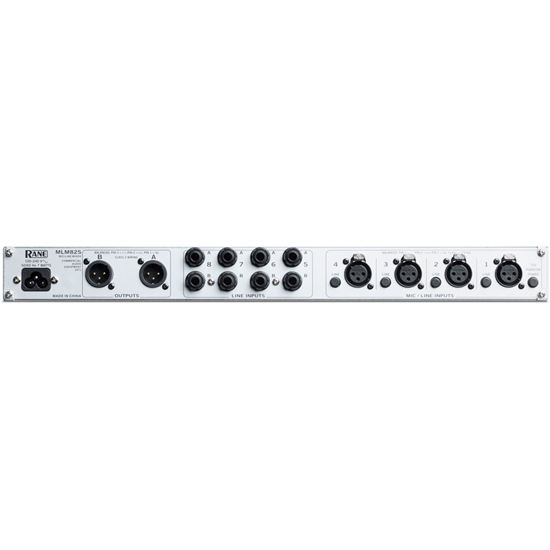

The mixer features four balanced, mono mic-/line-level inputs with XLR connectors and up to 60 dB of gain. Four stereo line-level inputs with up to 12 dB of gain are fed via the eight 1/4" inputs. A single button on the back engages 15 VDC phantom power on the mic inputs to allow the use of compatible condenser microphones.

The mic/line inputs can be assigned to the A, A+B, or B main outputs, the two XLR outputs are equipped with an internal switch for padding the output signal to mic level.

With a 1-RU, all-steel design, the rugged MLM82S easily fits in a standard effects rack for mobile applications.

Features

• 4 x female XLR balanced, mono mic-/line-level inputs with switchable 15 VDC phantom power
• Mic/line inputs may be individually assigned to the A, the A+B, or the B outputs
• Independent level/gain trim controls
• Signal/overload indicators for each input
• Phantom power is automatically removed from any input set for line operation

• 4 x pairs of female 1/4" TRS balanced, stereo line-level inputs with 12 dB of line gain
• Each stereo line input features a recessed mono switch with indicator, for four mono A inputs and four mono B inputs configuration
• Independent level controls

• 2 x male XLR balanced, mono mic-/line-level outputs (A and B)
• A and B mix outputs each have an internal switch for padding the output signal to mic level
• Output-level knobs set the master mix level independently for A and B outputs
• Mix amplifiers feature independent overload indicators

• 1-RU design makes the MLM82S convenient to transport in a standard effects rack

Specification

• Inputs
  • Type: Active, balanced
  • Mic/Line Connectors: 4 x XLR female, pin 2 = (+)
  • Stereo Line Connectors (4 x Pairs): 8 x 1/4" / 6.3 mm TRS phone female, tip = (+), ring = (-), sleeve = GND
• Mic/Line Inputs
  • Mic/Line Impedance: 1 kOhm/96 kOhms, 1% (balanced 500 + 500 Ohms / 48 k + 48 kOhms)
  • Mic Gain Range: Off to +60 dB ±1.5
  • Line Gain Range: Off to +20 dB ±1.5
  • Equivalent Input Noise: -128 dBu, typ, 20 kHz bandwidth, 150 Ohms termination
  • THD & Noise: 0.02% max, gain = 40 dB, +4 dBu at 1 kHz, 80 Hz BW
  • Frequency Response: 30 Hz to 35 kHz -3 dB
  • Maximum Input: 11.9 dBu, typ minimum gain (3 Vrms)
  • Maximum Input at Mic Level: 38.6 dBu, typ, maximum gain (9.1 mVrms)
• Stereo Line Inputs
  • Impedance: 20 kOhms, min
  • Gain Range: Off to +12 dB, ±1
  • Signal-To-Noise Ratio: 90 dB, typ, unity gain, output at +4 dBu, 22 kHz BW
  • Frequency Response: 10 Hz to 35 kHz, -3dB
  • THD & Noise: 0.007%, max, +4 dBu at 1 kHz, 80 kHz BW
• Mic/Line Outputs
  • Type: Active, balanced
  • Connectors: 2 x XLR, male
  • Impedance: 200 Ohms / 100 Ohms, 1%, line level out / mic level out
  • Gain Range: Off to +6 dB ±2
  • Drive Level: +24 dBu, 600 Ohms, load-balanced
• Crosstalk : -75 dB at 1 kHz, max, re + 4 dBu any channel to any channel
• Phantom Power : +15 VDC, 4%
• Output Cable Length : 1500' / 457 m, typ, line-level,
• Power Requirements : 100 to 240 VAC, 10%, 50/60 Hz, 7 W
• Construction : All-steel
• Certifications : CE, FCC, cULus
• Dimensions (HxWxD) : 1.75 x 19 x 5.3" / 4.4 x 48.3 x 13.3 cm (1 RU)
• Weight : 4 lb / 1.81 kg
• Package Weight : 5.8 lb
• Box Dimensions (LxWxH) : 20 x 13.6 x 4.2"
