Shure PGX Digital PGXD14 Bodypack Guitar Wireless System

Overview

Shure PGX Digital Guitar Wireless System

The Shure PGX-Digital PGXD14 Bodypack Guitar Wireless System adds the clarity of 24-bit digital audio to the legacy of trusted Shure microphone options for wireless performance. This system includes the PGXD1 bodypack transmitter, which easily clips onto a belt or guitar strap, and the WA302 instrument cable to plug into guitar, bass, or any other 1/4-inch line-level instrument output.

Transmitter Features:

• Rugged, compact bodypack with belt clip and instrument cable
• 20 Hz
• 20 kHz frequency range captures every nuance of your tone
• Power, mute, and battery status LED
• Up to 10 hours of continuous use from 2 AA batteries
• 200 ft (60 m) operating range
• 26 dB of continuously adjustable gain to match variable input levels

Receiver Features:

• 24-bit / 48 kHz digital technology for incredibly accurate sound
• Automatic frequency selection locates a clear channel instantly
• One-touch sync automatically syncs the transmitter and receiver
• Rugged construction for reliable performance show after show
• True digital diversity for rock-solid wireless signal reliability
• Up to 10 compatible channels per frequency band
• 1/4-inch and XLR audio outputs
• Included padded carrying case for portability and protection

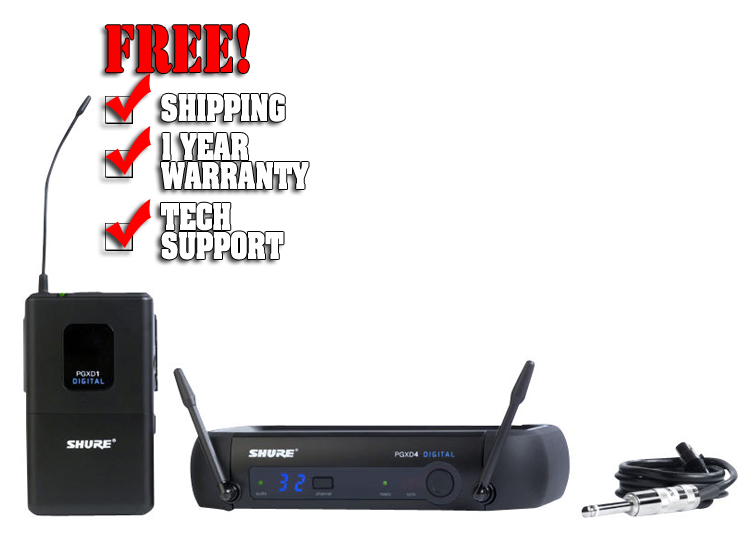

Included in the Box:

• PGXD4 wireless receiver
• PGXD1 bodypack transmitter
• WA302 instrument cable
• Padded carrying case

PGXD1 Bodypack Transmitter Specifications

• Audio Input Level:
• - +10 dBV maximum, at minimum gain setting
• -16 dBV maximum, at maximum gain setting
• Gain Adjustment: Range 26 dB
• Input Impedance: 1 M ohms
• RF Output Level: 10 mW maximum (dependent on applicable country regulations)
• Dimensions(HxWxD): 108 mm x 64 mm x 19 mm (4.25 x 2.50 x 0.75 in.)
• Weight: 128 grams (4.5 oz.) without batteries
• Housing: Molded polycarbonate case
• Power Requirements: 2 "AA"size batteries
• Battery Life: Up to 10 hours

PGXD4 Wireless Receiver Specifications

• Housing: ABS
• Audio Output Level (ref. +/- 38 kHz deviation, 1 kHz tone):
• - XLR connector (into 3000 Ohm load): -2.5 dBV
• - 1/4 inch connector (into 10000 Ohm load): +10 dBV
• Impedance:
• - XLR: 50 ohms
• - 1/4 inch: 50 ohms
• Sensitivity: -102 dBm at 10-5 BER
• Image Rejection: > 70 dB, typical
• Audio Outputs:
• - XLR Balanced
• - 1/4 inch Unbalanced
• Audio LED:
• - Red: 2 dB below clip
• - Amber: 12 dB below clip
• - Green: 50 dB below clip
• Power Requirements: 12-18 Vdc at 150 mA, supplied by external power supply
• Dimensions (HxWxD): 40 mm X 181 mm X 104 mm (1.6 x 7.125 x 4.1 in.)
• Weight: 289 g (10.2 oz.)
