CAD Audio AMS-WX200 UHF Wireless Dual Handheld Microphone System

CAD Audio AMS-WX200 UHF Wireless Dual Handheld Microphone System - Overview

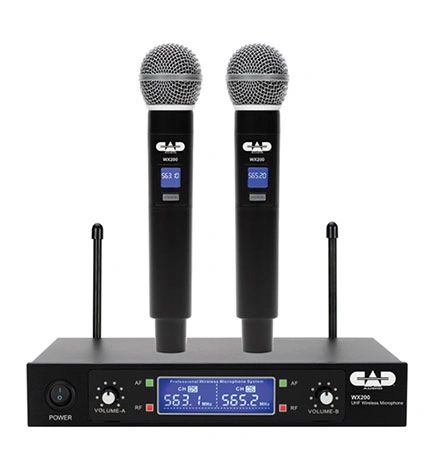

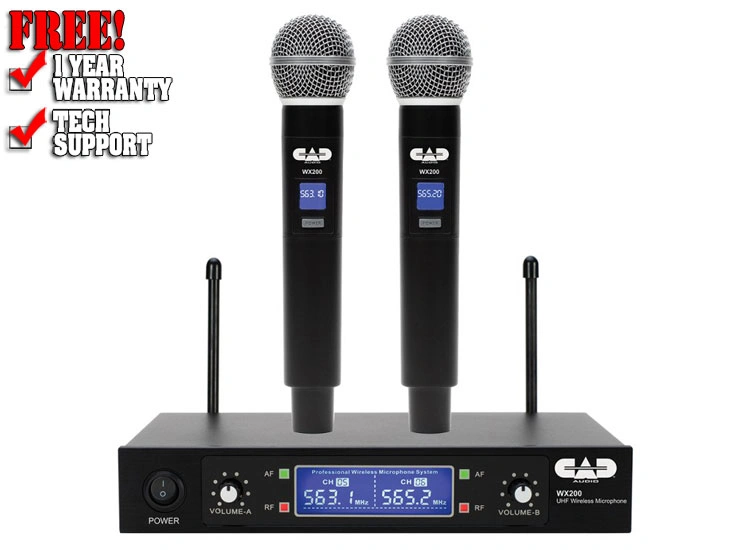

The CAD Audio AMS-WX200 delivers professional dual-channel wireless performance for live sound, houses of worship, presentations, and content creation. This fixed-frequency UHF system includes a receiver, two handheld transmitters, a power supply, and a 1m unbalanced ¼" cable. The all-metal receiver chassis features independent displays and volume controls per channel, with AF/RF indicators confirming signal strength and connection status. Choose between balanced XLR outputs or a combined ¼" output for flexible setup. Advanced antenna technology delivers up to 164 feet (50m) of reliable operating range. Each transmitter shows its active frequency and runs up to 10 hours on 2 AA batteries.

• Up to 164' (50m) range between transmitter and receiver
• All metal receiver
• Individual balanced XLR outputs or combined ¼" output
• Transmitter utilizes 2 AA Batteries with >10 Hrs of operation

Specification

• Type Fixed-frequency UHF dual handheld wireless microphone system
• Frequency Band 563–565 MHz
• Microphone Capsule Dynamic
• Polar Pattern Cardioid / unidirectional
• Frequency Response 40 Hz – 16 kHz
• Sensitivity -55 dB
• Operating Range Up to 164 ft (50m)
• Receiver Chassis All-metal, rack-friendly
• Receiver Outputs Individual balanced XLR per channel, or combined ¼" unbalanced output
• Channel Controls Independent display and volume control per channel
• Signal Indicators AF (audio frequency) and RF (radio frequency) per channel
• Transmitter Display Shows active frequency
• Transmitter Power 2x AA batteries per transmitter (not included)
• Battery Life Up to 10 hours per transmitter
• Build Features Metal mic housing, built-in shock mount (reduces handling noise)
• Included Cable 3.275' (1m) unbalanced ¼" cable
• In the Box 1x receiver, 2x handheld transmitters, 1x power supply, 1x ¼" cable
• Recommended Use Live sound, houses of worship, presentations, broadcasting, content creation
• Warranty 2-year manufacturer warranty (CAD Audio, via authorized dealers)

What's included in the box?
A: The system includes one receiver, two handheld transmitters, a power supply, and a 3.275' (1m) unbalanced ¼" cable.

What is the operating range?
A: Up to 164 feet (50m) between the transmitters and receiver, thanks to advanced antenna technology.

Is this a frequency-agile or fixed-frequency system?
A: The AMS-WX200 is a fixed-frequency system, meaning each unit operates on a preset UHF frequency rather than being user-tunable.

What outputs does the receiver support?
A: You can use either individual balanced XLR outputs per channel or a combined unbalanced ¼" output, depending on your setup.

How do I know if the transmitters are connected?
A: Each channel has separate AF (audio frequency) and RF (radio frequency) indicators that confirm signal transmission and connection status.

What power do the transmitters need?
A: Each handheld transmitter runs on 2 AA batteries (not included), providing up to 10 hours of continuous use.

Can I control volume separately for each mic?
A: Yes, the receiver has independent displays and volume controls for each channel.

<
