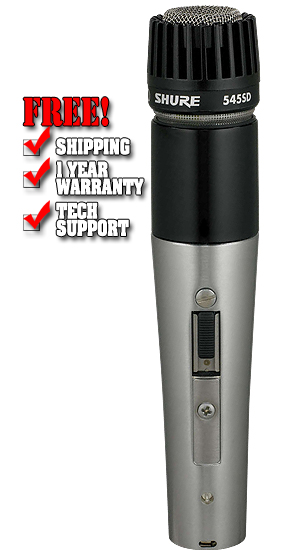

Shure UNIDYNE III 545SD

Description

The predecessor to the SM57, the 545SD Classic Unidyne® Instrument Microphone is a dual-impedance, unidirectional, dynamic microphone.

Shipped connected for low-impedance operation, the 545SD features a silent magnetic reed on/off switch with lock-on option. A favorite for instrument pickup and recording, the 545SD can also be used on lecterns in public address systems.

Features:

• Exceptionally uniform cardioid pattern minimizes feedback
• Selectable dual-impedance operation
• Silent magnetic reed on/off switch with lock option
• Type Dynamic
• Frequency Response 50 to 15,000 Hz
• Polar Pattern Cardioid (unidirectional)--uniform with frequency, symmetrical about axis
• lmpedance Dual. Microphone rating impedance is 150 ohms (250 ohms actual) for connection to microphone inputs rated at 19 to 300 ohms and "High" for connection to high-impedance microphone inputs. Wired for low impedance as supplied.
• Output Level LOW @ 1,000 Hz: Open Circuit Voltage* -58.0 dB (1.3 mV); HIGH @ 1,000 Hz: Open Circuit Voltage* -35.0 dB (17.6 mV) *0 dB = 1 volt per Pascal (1 Pa = 94 dB SPL)
• PDF User Guide
