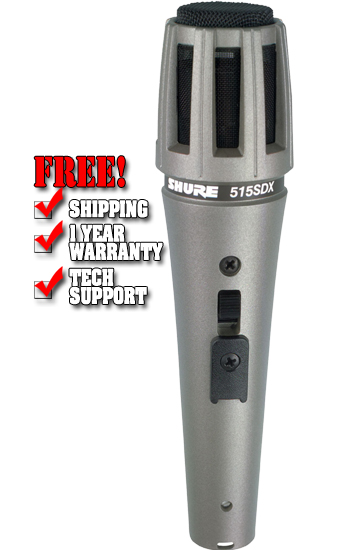

Shure 515SDX

Designed for communication systems including transportation, restaurant, commercial, and industrial applications.

Frequency response designed for voice intelligibility
Directional mic element with internal shock mount
Die-cast zinc case and grill
Does not require DC power for operation
Slide switch activates mic element
Male XLR output connector
Mic stand adapter included
Type Dynamic (moving coil)
Frequency Response 80 to 15,000 Hz
Polar Pattern Cardioid (unidirectional). Effective rejection of sound at rear of microphone is uniform with frequency; front pickup characteristics are symmetrical about axis.
lmpedance 150 ohms rated (180 ohms actual)
Output Level Open Circuit Voltage: -57 dBV/Pa* (1.4 mV) *1 PA = 94 DB SPL
PDF User Guide
