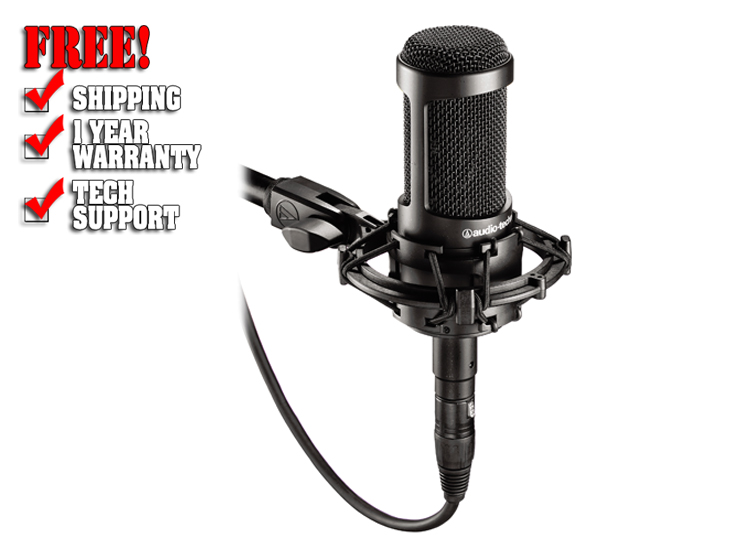

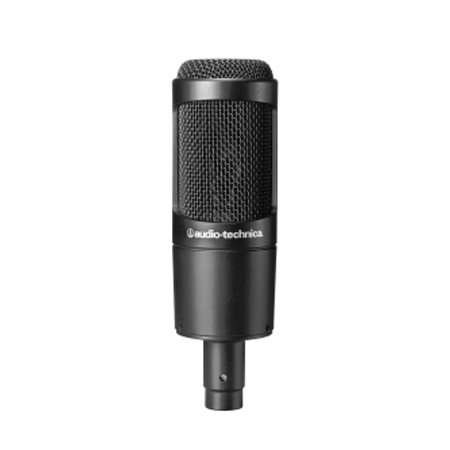

Audio-Technica AT2035

Overview

Designed for critical home/project/professional studio applications and live performance, this side-address cardioid studio condenser delivers exceptional detail and low noise. Equipped with a switchable 80 Hz high-pass filter and 10 dB pad, the AT2035 handles high sound pressure levels with ease. Along with its rugged construction and high-performance specifications, the AT2035 provides an exceptional level of consistency from model to model. It comes equipped with a protective pouch and a custom shock mount.

Features:

• Large diaphragm for smooth, natural sound and low noise
• High SPL handling and wide dynamic range provide unmatched versatility

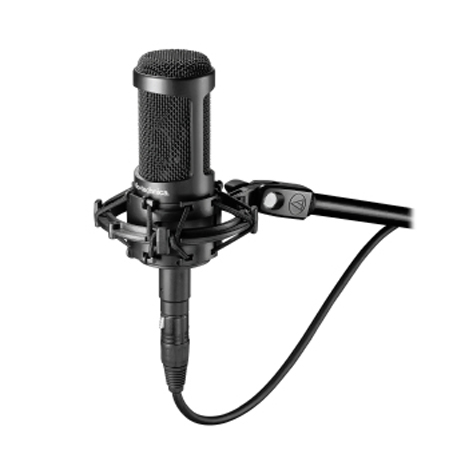

• Custom shock mount provides superior isolation
• Switchable 80 Hz high-pass filter and 10 dB pad
• Cardioid polar pattern reduces pickup of sounds from the sides and rear, improving isolation of desired sound source
• Includes custom shock mount & protective pouch

Specifications:

• ELEMENT: Fixed-charge back plate, permanently polarized condenser
• POLAR PATTERN: Cardioid
• FREQUENCY RESPONSE: 20-20,000 Hz
• LOW FREQUENCY ROLL-OFF: 80 Hz, 12 dB/octave
• OPEN CIRCUIT SENSITIVITY: -33 dB (22.4 mV) re 1V at 1 Pa
• IMPEDANCE: 120 ohms
• MAXIMUM INPUT SOUND LEVEL:148 dB SPL, 1 kHz at 1% T.H.D.;158 dB SPL, with 10 dB pad (nominal)
• NOISE: 12 dB SPL
• DYNAMIC RANGE (typical): 136 dB, 1 kHz at Max SPL
• SIGNAL-TO-NOISE RATIO: 82 dB, 1 kHz at 1 Pa
• PHANTOM POWER REQUIREMENTS: 11-52V DC, 3.8 mA typical
• SWITCHES:Flat, roll-off;10 dB pad (nominal)
• WEIGHT: 403 g (14.2 oz)
• DIMENSIONS:170.0 mm (6.69") long,52.0 mm (2.05") maximum body diameter
• OUTPUT CONNECTOR: Integral 3-pin XLRM-type

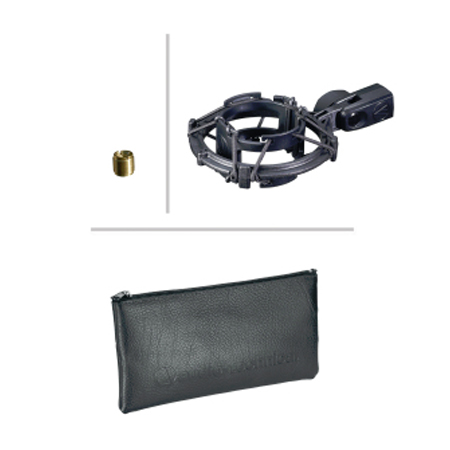

• ACCESSORIES FURNISHED: AT8458 shock mount for 5/8"-27 threaded stands; 5/8"-27 to 3/8"-16 threaded adapter; soft protective pouch
• AUDIO-TECHNICA CASE STYLE: R5
