American DJ Element QAIP

Description

From the Element Par Series, the Element QAIP is an IP54 outdoor rated battery powered LED Par with ADJ's WiFLY EXR wireless DMX for indoor or outdoor use. It's powered by six 5W RGBA (4-IN-1) LEDs. The Element Par Series are lightweight and easy to operate with a carry handle and kickstand for uplighting, staging, events, productions and any mobile application. No cables or wires needed!

Specifications

Optical:

• 6 x 5-Watt RGBA LEDs (4-in-1 - Red, Green, Blue & Amber)
• Life expectancy: rated at 50,000 hrs.
• LUX: 901 @ 2M; 213 @ 4M
• Beam angle: 14-degree
• PWM frequency:1000Hz

Connection:

• DMX: WiFLY EXR Wireless DMX
• IEC connection to power/charge fixture

Control:

• Control protocol: WiFLY EXR DMX
• 5 DMX Channel modes: 4, 5, 6, 9 or 10
• Remote control: WiFLY EXR DMX, UC-IR, Airstream IR
• 5 Operational modes: RGBA Dimmer Mode; Sound Active mode; Auto Run Mode (16 color change modes, 16 color fade modes, & 1 color/fade combo mode); Static Color mode; and DMX Controlled

Features:

• IP54 Outdoor Rated

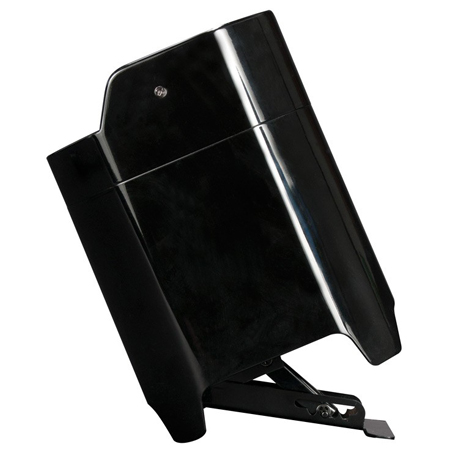

• Built-in kickstand to angle figure while it's on the floor
• 4-button DMX menu display on rear panel with water resistant hatch
• Built-in WiFLY EXR wireless DMX: Up to 2,500 feet (760M) when used with ADJ's WiFLY EXR Battery Transceiver
• 64 built-in Color Macros
• Variable RGBA color mixing offers a smooth, seemingly unlimited color palette - Great for Stage or Wall Washing!
• LED pulse and strobe effect (0.2Hz-11Hz)
• Flicker Free Operation
• Electronic Dimming: 0 - 100% with 5 dimming curves
• Run all night No duty cycle
• Energy Saving Mode

Battery:

• Battery Type: fixed lithium battery
• Battery Energy: 73.26WH (Watt Hours)
• Battery Weight: 0.42 kg.
• Battery Voltage: 11.1V
• Battery Capacity: 6.6AH
• Total Lithium Ion Cells: 9 pieces
• Battery Wrap Material: PVC sleeving + highland barley paper
• Battery Charge Time: 4.5 Hours (With POWER switch On)
• Battery Life: 11 hours (single color)

Electrical:

• Power Draw Total (All LED's @ Full On): 45W, 0.5A @ 120V/60Hz, 42W, 0.2A @ 220V/50Hz,
• Multi-voltage operation: AC 100-240V, 50/60Hz
Dimensions / Weight:
• Dimensions (LxWxH): 5.5" x 5.5" x 7.5" / 140 x 140 x 190.5mm
• Weight: 6.5 lbs. / 2.9kg.

Certifications:

• CE Approved
• IP54 Outdoor rated
