Chauvet DJ Ground Support 2 Kit

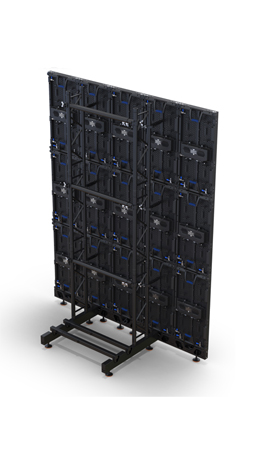

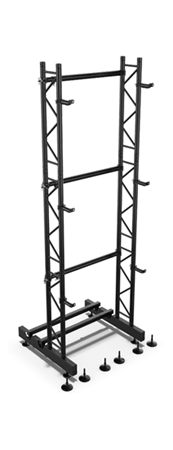

The GROUNSSUPPORT2KIT is a ground support/stacking system that utilizes the new dual function rig bars to provide a clean, professional setup for your clients. The GROUNSSUPPORT2KIT can support a 2.5 wide x 3m tall section of video panels.

FEATURES

• Complete ground support solution for stacking video wall on the floor
• Works for walls as large as 8.2 ft (2.5 m) wide by 9.85 ft (3 m) tall
• Use multiple kits to stack wider video walls
• Support for flat and concave video walls, including 5° and 10° curves
• Designed to work with the F2, F3, F4IP, F5IP, and Vivid 4 video panels
• Ships in road case for easy setup and pack after the gig
• DRB-F100CM, DRB-F50CM dual function rig bars required for operation

Specification:

CONSTRUCTION/PHYSICAL

• Dimensions: 10.24 x 3.28 x 3.28 ft (3.12 x 1 x 1 m)
• Weight: 275 lb (125 kg)
• Exterior Color: Black
• Housing Material: Aluminum extrusion and Steel
• Maximum vertical stack supported: 3 m tall
• Ballast needed per 1 M height stack: 100 lb (45 kg)
• Ballast needed per 2 M height stack: 175 lb (80 kg)
• Ballast needed per 3 M height stack: 250 lb (113.4 kg)

CERTIFICATIONS/QUALIFICATIONS

• CE
• Temperature (Ambient): -4 °F to 140 °F (-20 °C to 60 °C)

WHAT'S INCLUDED

• Warranty Card
• QRG
• 2PCS FLOOR BASE
• 2PCS ANGLING HORIZONTAL BAR
• 3PCS ANGLING 1M PIPE W/2PCS CLAMPS
• 6PCS 1M LADDER TRUSS W/SPIGOTS, PINS, AND SAFETY CLIPS
• 6PCS PANEL ATTACHMENT ARM
• 10PCS TR16 SCREW JACKS
• 12PCS M12 PANEL ATTACHMENT SCREWS

REQUIRED ACCESSORIES

• DRBF100CM
• DRBF50CM

OPTIONAL ACCESSORIES

• DRBCURVEKITX2
