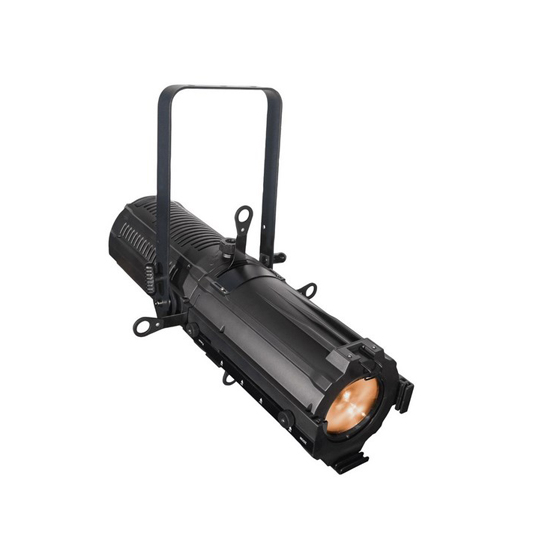

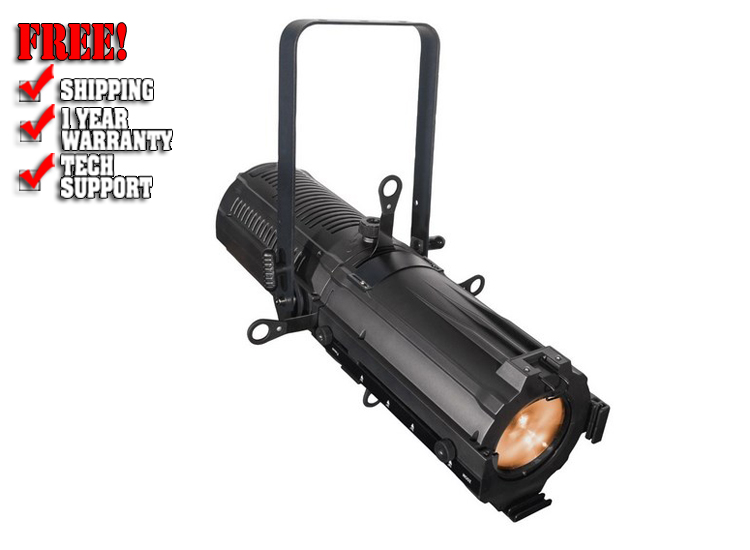

JMAZ Lighting JZ1031 Vision Cool White Profile 300Z 300W Cool White LED Ellipsoidal Profile Light with Zoom

Vision Profile 300Z CW is a super high output ellipsoidal profile fixture. It comes available in either a 300-watt Cool White (5600K) option. JMAZ Designed to replace the 1K Tungsten Halogen fixture, the Vision Profile 300Z CW projects a soft yet bright field of light and its high CRI (Color Rendering Index) of 97, makes this fixture ideal for television and film. With a zoom range of 18-38 degrees (manually adjustable) and 4-leaf framing system, this fixture lets you control the shape and the location of where the light shines. The Vision Profile 300Z CW is light-weight, compact, and has rotary, key, and DMX dimmer control. Installation and patching is fast and easy with RDM protocol. These features and more make the Vision Profile 300Z CW the ideal replacement for traditional ellipsoidal fixtures.

JMAZ Lighting JZ1031 Vision Cool White Profile Features:

• 1 x 300-watt LED.
• Color Temperature: Either 5600K.
• Color Rendering Index: CRI 97, R9=90, TLCI up to 98.
• Beam Angle: Manual Zoom from 18-38 degrees.
• Dimming: Smooth 16 bit Flicker Free Dimming w/ Adjustable Dimming Curve.
• Lens Barrel: Compatible with Industry Standard.
• Control: Master/Slave, DMX in/through, Standalone, RDM.
• Housing: Aluminum.

JMAZ Lighting JZ1031 Vision Cool White Profile Specifications:

• Light Source:
  • Source: 300W CW LED
• Body:
  • BS die-cast plastic w/ aluminum structure
• Electronics:
  • Dimmer: 0-100% Linear Dimmer
  • Strobe/Shutter: 25 T/sec
  • Color Temperature: 3200K
• Electrical:
  • Mains Power Supply: AC Mains
  • Max Power Consumption: 250W
  • Input Voltage: AC 100-240V, 50HZ/60HZ
• Optics:
  • Zoom: 18-38°
• Dynamic Effect:
  • Profile/Spot Effect
• Control:
  • Protocols: DMX512
  • DMX Channels: 6/9/36/41 Channel Modes
  • Firmware Upgrade: Yes, USB-DMX Interface, not included.
• Control:
  • Protocols: DMX512
  • DMX Channels: 1/2/3 Channel Modes
  • Manual Framing
  • Manual Zoom
• Physical:
  • IP Rating: 20
  • Cooling: Fan
  • Data Connection: 3-PinDMX
  • Power Connection: Power-CON
  • Dimensions: 31" x 14" x 14"
  • Weight: 25.4 lbs

Whats in the Box?

• (1) JMAZ Lighting JZ1031 Vision Cool White Profile 300Z 300W Cool White LED Ellipsoidal Profile Light with Zoom
