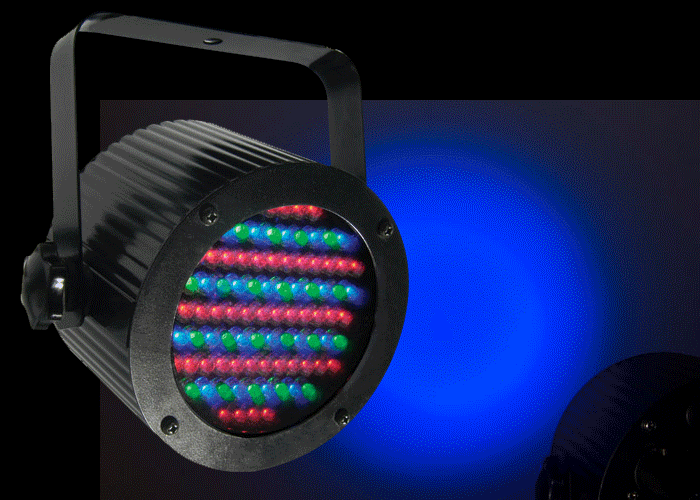

Chauvet LEDsplash 86b

Description

The compact and lightweight LEDsplash™ 86B is a red, green and blue LED wash fixture with 3 or 7 channels of DMX control. This compact, lightweight fixture is powered by 86 RGB LEDs. It features static colors and color mixing, built-in automated and sound-activated programs with or without DMX.

Features:

• 3 or 7-channel DMX-512 LED wash
• Operating modes:
       3-channel: RGB control
       7-channel: RGB, macros, run/strobe speed, automatic/sound, dimmer
• Static colors and RGB color mixing with or without DMX controller
• Built-in automated programs via master/slave or DMX with variable speed
• Built-in sound activated programs via master/slave or DMX
• Pulse effect with adjustable speed
• Additional power output: max 37 units @ 120V (see manual for details)
• Beam angle: 19°
• Field angle: 36°
• Lux: 530 @ 1m
• Light Source: 86 (44 red, 21 green, 21 blue) LEDs
• Power and current: 120V, 60Hz: 9W, 0.2A operating, 0.2A inrush
• Power and current: 230V, 50Hz: 5W, 0.1A operating, 0.1A inrush
• AC power: Autoswitching 100V-240V 50/60Hz
• Weight: 1.8lbs (0.8kg)
• Size: 4.9in x 6in x 6.2in / 124mm x 153mm x 157mm
