ColorKey WaferPar HEX 12 MKII RGBAW+UV LED Wash Light

Overview

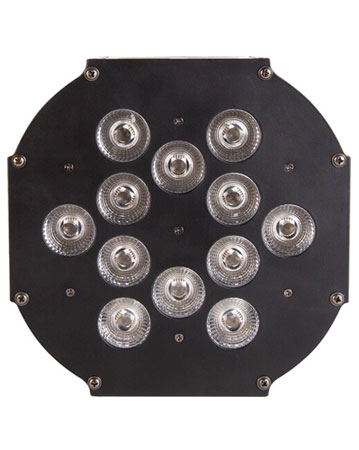

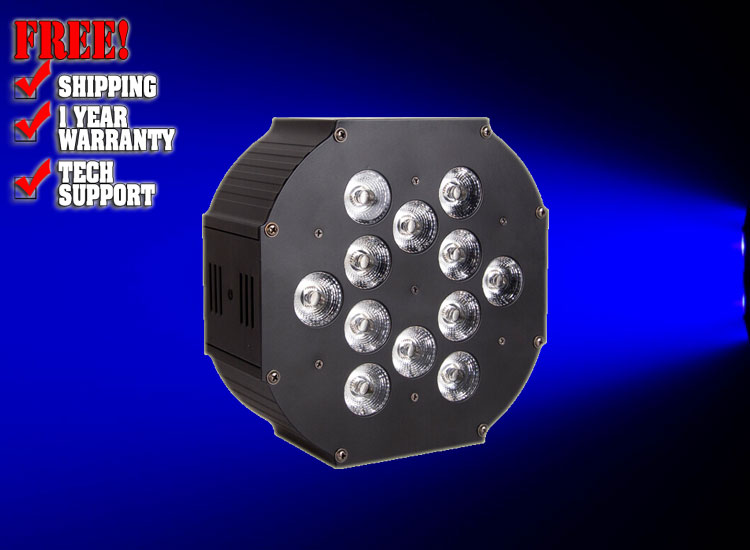

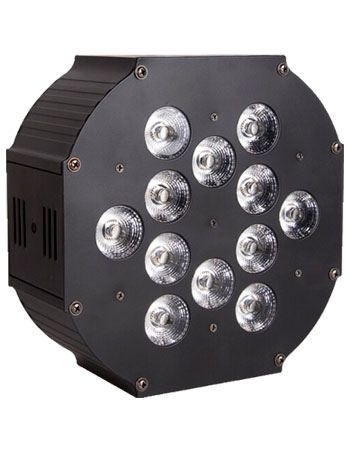

The ColorKey WaferPar HEX 12 MKII is an RGBAW+UV LED wash light designed for live events such as concerts, weddings, and parties. This flat PAR light features twelve 15W 6-in-1 LEDs (red, green, blue, white, amber, and UV) with a 35° beam angle and the ability to strobe. The light is rated for up to 100,000 hours of life expectancy.

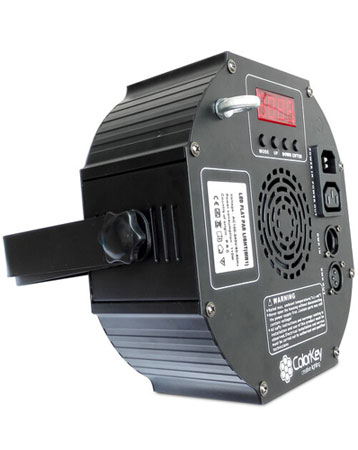

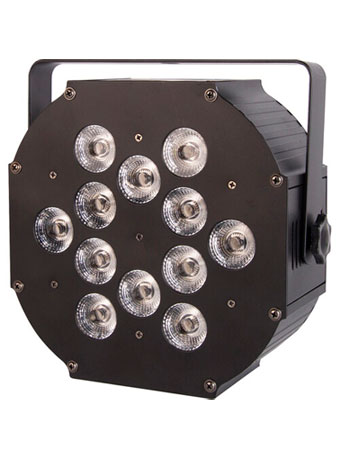

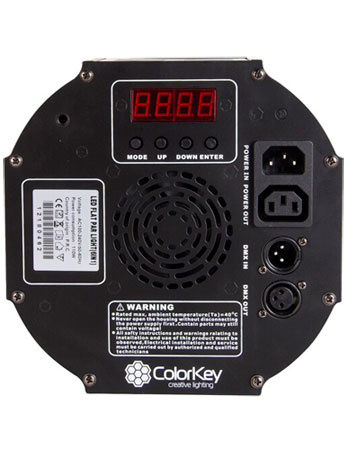

Two XLR 3-pin DMX connectors and two IEC power connectors allow for DMX control and data/power daisy-chaining to other fixtures. The unit can also be used in Master/Slave, Sound-Activated, and Stand-Alone modes, controlled with a rear-panel menu interface. The adjustable yokes allow for both standing and hanging configurations.

• Twelve 15W 6-in-1 LED's
• Red, green, blue, white, amber, and UV
• 35° beam angle
• Bright output
• Strobe with variable rate
• Control modes: DMX512, RDM, Master/Slave, Sound Activated, and Stand-Alone
• 6/10/12 DMX channel modes
• 3-pin DMX I/O connectors
• IEC power I/O for daisy-chaining power
• LED display with 4-button menu
• Up to 100,000 hours of life expectancy

Specification

Light

• Lighting Type PAR
• Light Source 12 x Color/UV LED - 15 W
• Light Source Life Expectancy 100,000 Hours
• Colors x Red, x Green, x Blue, x White, x Amber, x Ultraviolet
• Pixel Configuration None
• Beam Angle 35°
• Shutter / Strobe Electronic
• Iris None
• Zoom Adjustment None
• Dimming Electronic, 0 to 100%

Performance

• Operating Modes DMX, Master/Slave, Sound-Active, Standalone
• Macros / Programs 63 x Color Macro
• Effects Strobe (Variable Speed)
• Gobos None

Control

• Control Protocols DMX512, RDM
• DMX Channel Modes 3 Mode(s):
• 6 / 10 / 12-Channel
• Display / Controls LED / 4-Button

Connectivity

• Connectors 2 x XLR 3-Pin DMX Input/Output

Power

• AC Input Power 100 to 240 VAC, 50/60 Hz
• AC Power Connector Input: 1 x IEC
• Output: 1 x IEC
• Plug Type: NEMA 5-15
• Fuse None

Environmental

• IP Rating None

Physical

• Mounting Dual/Scissor Yolk
• Duty Cycle None
• Exterior Color Black
• Dimensions 9 x 9 x 4" / 22.86 x 22.86 x 10.16 cm
• Weight 5 lb / 2.3 kg
