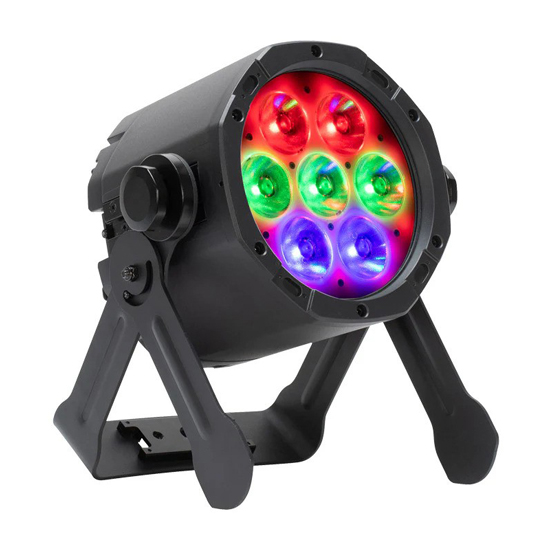

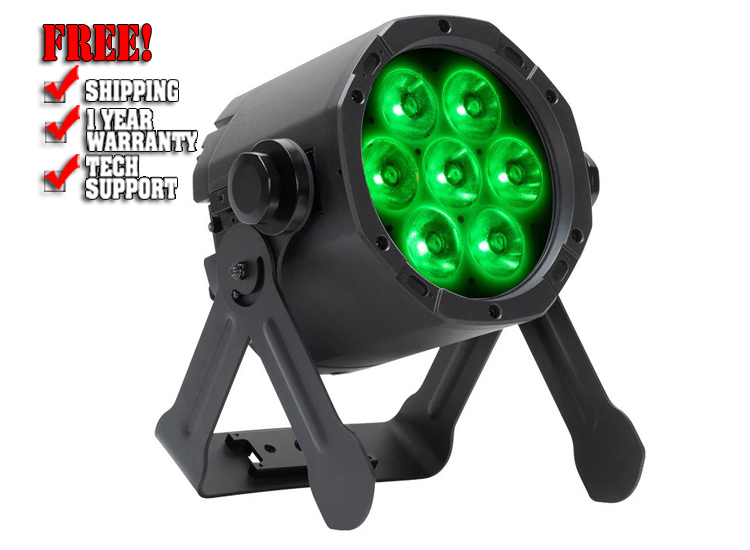

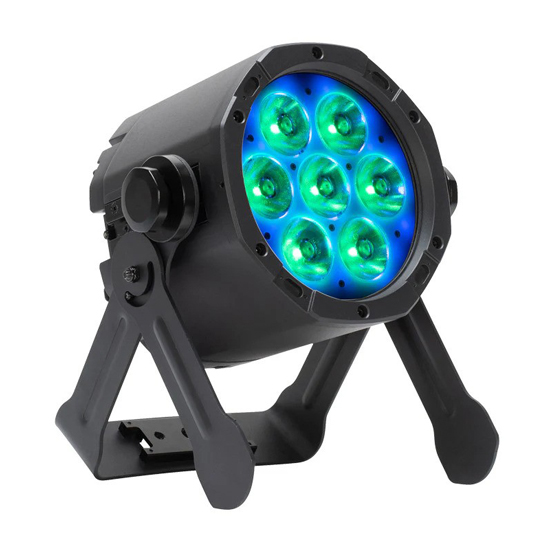

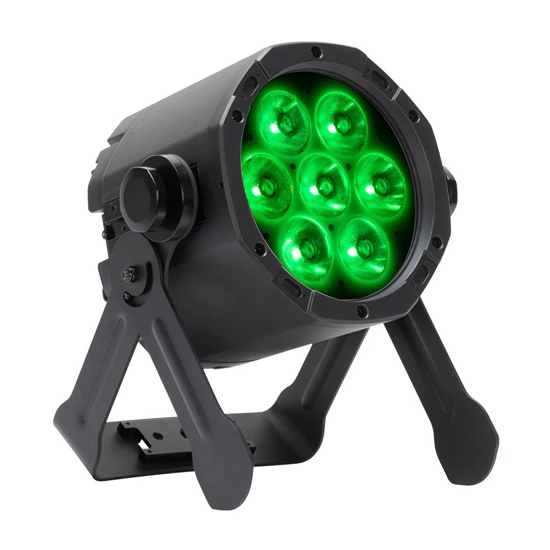

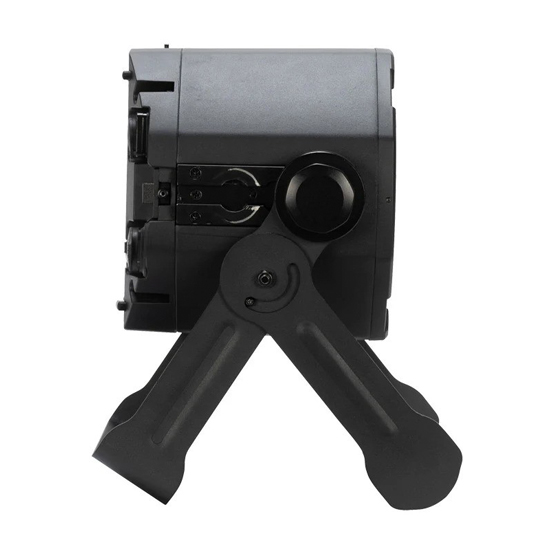

ADJ ElectraPix Par 7

The ElectraPix Par 7 is a IP65-rated, battery powered, wireless DMX LED fixture. It features seven 20-Watt Hex Color LED (RGBAL+UV), Aria X2 wireless management system and has a battery life up to 20 hours.

The ElectraPix Par 7 LED Par is a cutting-edge wireless DMX lighting solution. Packed with advanced features, this fixture boasts seven 20-Watt Hex Color LED (RGBAL+UV), providing unparalleled control and creativity. Powered by either its built-in Lithium-ion rechargeable battery or wall outlets, battery operation can be selected by the user for durations ranging from 5 to 20 hours.

With individual pixel control, built-in foreground and background LED programs, and a variable white color temperature range, the ElectraPix Par 7 ensures dynamic lighting possibilities. Its color-calibrated LEDs, user-selectable dim modes, and electronic strobe/dimming enhance versatility.

Designed for adaptability, the IP65-Rated housing, OLED digital display, L Track system, and adjustable feet make installation and customization a breeze. The fixture's control options include DMX512, Aria X2 Wireless management system, Bluetooth, RDM compatibility, and an included UCIR24 wireless remote.

The ElectraPix Par 7 guarantees reliability with certifications such as CE, FCC, and pending cETLus, while its IP65-Rating ensures durability in various environments. Included accessories like the outdoor locking power cable and UCIR24 remote, along with optional add-ons, make this fixture a comprehensive lighting solution for professionals. Elevate your lighting design with the ElectraPix Par 7, where innovation meets performance.

Features:

• 7 Pixel, Hex Color LED (RGBAL+UV) LED Par
• Built-in Lithium-ion rechargeable battery or Wall Powered
• Battery operation can be selected by the user for durations ranging from 5 to 20 hours
• Individual Pixel Control
• Built-In Foreground LED Programs
• Built-In Background LED Programs
• Variable White Color Temperature Control (2,700K ~ 9,900K)
• English/Spanish User Menu
• Built-In Alarm
• Color Calibrated LEDs
• User Selectable LED Refresh Rates (900Hz ~ 25K)
• 6 User Selectable Dim Modes
• 4 User Selectable Dim Curves
• Electronic Strobe (0.3Hz ~ 11Hz)
• Electronic Dimming

Specifications:

• Source:
  • (7) 20W Hex Color RGBAL+UV Foreground LEDs
  • (29) 0.2W RGB Background LEDs
  • 50,000 Hour Average Life*
  • *May vary depending on environmental conditions, power/voltage, usage patterns (on-off cycling), control, and dimming.
• Optical:
  • White Color Temperature Range: 2,300K ~ 9,900K
  • Beam Angle: 17°
• Physical:
  • IP65 Housing
  • OLED Digital Display
  • L Track system for locking accessories / rigging
  • Gel Frame Holder
  • Adjustable Hanging / Kick Stand Bracket
• Control:
  • DMX512
  • Aria X2 Wireless Management / DMX System
  • Bluetooth
  • RDM and RDM Net Compatible
  • IR (Includes UCIR24 Wireless Remote)
  • (9) DMX Channel Modes: 5, 6, 9, 13, 22, 24, 42, 45, 54
  • On-board Manual Control Mode
  • Primary / Secondary Mode

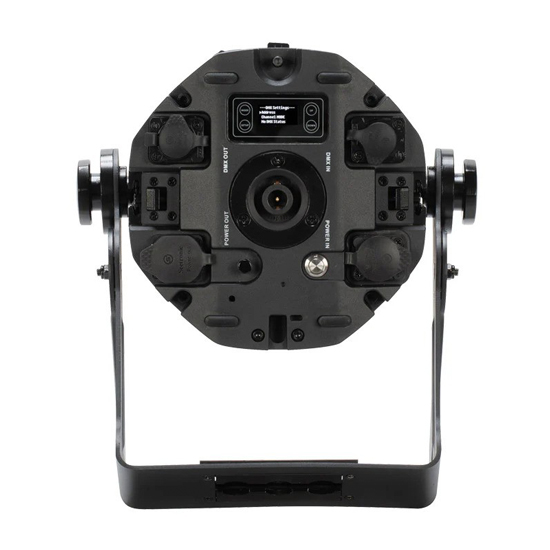

• Connections:
  • 5-pin XLR Outdoor DMX In/Out Sockets (Must be used with STRxxx 5-pin DMX cables to create IP65 seal)
  • Outdoor Locking Power Sockets
  • Battery Charging Socket
• Dimensions & Weight:
  • Length: 11.11" (282.1mm)
  • Width: 9.77" (590.3mm)
  • Height: 7.46" (189.5mm)
  • Weight: 15.4 lbs. (7 kg)
• Power:
  • AC100-240V / 50Hz-60Hz Input
  • 60W Power Consumption
  • Link 15 units @ 120VAC or 28 units @ 230VAC
• Battery:
  • Rechargeable Lithium-ion
  • Battery Capacity: 7,000mAh
  • Battery Voltage: 22.2V
  • Charge Time: 6 Hours (To Full)
  • Battery operation selectable by user: 5 to 20 hours
  • 5-hour duration = Full Output when fully charged
  • Battery Cycles: 500
• Thermal:
  • Ambient Operating Temperature: -4°F to 113°F (-20°C to 45°C)
  • Storage Temperature: -22°F to 113°F (-30°C to 45°C)
• Certifications & IP Rating:
  • CE
  • cETLus (Pending)
  • FCC
  • IP65
• Included Accessories:
  • (1) Outdoor Locking Power Cable
  • (1) Floor / Mounting Bracket
  • (1) UCIR24 Remote
  • (1) Gel Frame
  • (1) 20° Diffusion Filter
• Optional Accessories:
  • LTrack A2 - LTrack Adapter Only
  • LTrack CA2 - LTrack Adapter with Narrow Clamp
  • ELP12IPBDA - Barn Door and Gel Frame Assembly (Sku: ELP404)
  • ELPIX7L55 - 55° Diffusion Filter for ElectraPix Par 7
  • ELPIX7L40 - 40° Diffusion Filter for ElectraPix Par 7
  • ELPIX7L30 - 30° Diffusion Filter for ElectraPix Par 7
  • ELPIX7L20 - 20° Diffusion Filter for ElectraPix Par 7
  • ELPIX7L30X60 - 30x60° Linear Filter for ElectraPix Par 7
  • ELPIX7L15X60 - 15x60° Linear Filter for ElectraPix Par 7
  • ELPIX7L10X60 - 10x60° Linear Filter for ElectraPix Par 7
  • ELPIX7L10X40 - 10x40° Linear Filter for ElectraPix Par 7
  • EPIX P7 IPCB - Replacement Charging Base and Power Supply
