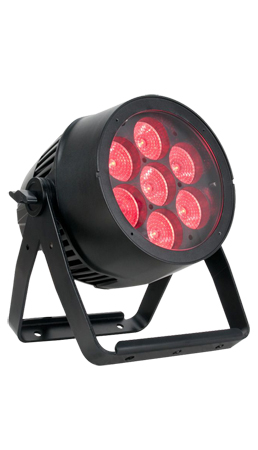

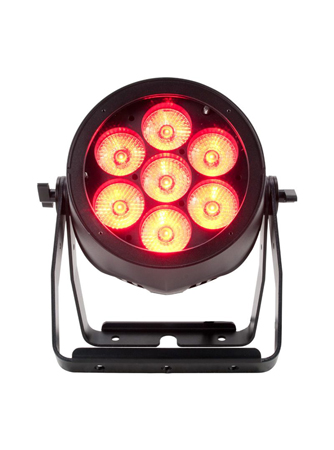

ADJ 7PZ IP

The 7PZ IP is a heavy duty, metal IP65 outdoor rated 105W LED Par with motorized zoom and ADJ's WiFLY EXR wireless DMX built-in. It features seven 15W quad (4-IN-1 RGBW) LEDs with 64 built-in color macros. There are 5 dimming curves plus smooth 0-100% electronic dimming. With 5 operational modes, 12 DMX channels modes and 4-button menu with function display, the 7PZ IP has a varied of control options. The zoom range is 5 ~ 45-degrees.

A choice of twelve different DMX modes: 4, 5a, 5b, 6, 7a 7b, 8, 9, 10a, 10b, 12 and 13-channel - offer added flexibility. The basic 4 and 5-channel mode are useful in situations where available DMX channels are limited, while the full 13-channel option offers full control over all the fixture's features including full red, green, blue and white color mixing, master dimmer, strobing and zooming.

Specification

Optical

• Light Source: 7 x 15 Watt Quad (RGBW) LEDs
• LED Life Expectancy: 50,000 Hrs
• Beam Angle: (5 to 45-degrees)
• Refresh Rate: 1.8KHz

Technical Features

• Compatible with ADJ's WiFLY Protocol
• Strobe (electronic)
• 64 built-in Color Macros
• 4 Operational Modes: Color Change Mode; Color Fade Mode; Auto (Program Run) Mode, and DMX Mode

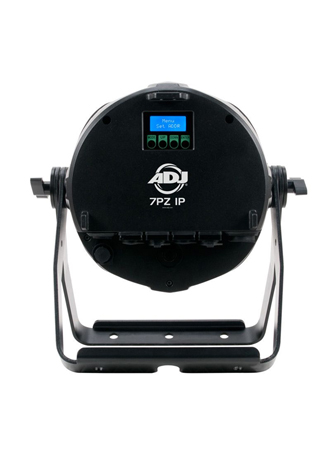

• 4-button LED Display on rear panel
• Electronic Dimming 0 - 100%
• Flicker Free
• WiFLY EXR DMX Range: 2,500 feet /700M (line of site)
• Wifly On/Off
• Dual bracket yoke allows fixture to be hung or set on the ground

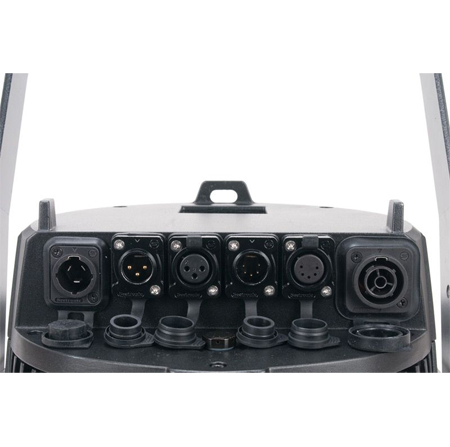

Connections

• Power Input: IP65 rated connection
• Power Pass through: IP65 rated connection
• Data: 3 Seatronic IP connection
• With Wired Digital Communication Network

Control

• 12 DMX Channel Modes (4, 5a, 5b, 6, 7a 7b, 8, 9, 10a, 10b, 12 and 13-channel)
• 16 Selectable WiFLY Address Channels

Electrical

• Input Voltage: 100-240V 50Hz/60Hz (Auto Sensing)
• Power draw 120V 60Hz: 128W
• Power draw 220V 50Hz: 128W

Physical

• Dimensions (LxWxH): 10.5" x 13.75" x 15" / 270 x 350 x 380mm
• Weight: 25 lbs / 11 kg.
• Metal Black Housing
• IP 65

Whats Included

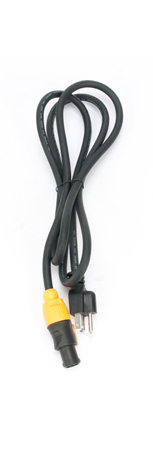

• IP65 connection to Edison Cable (1M)
• Manual
