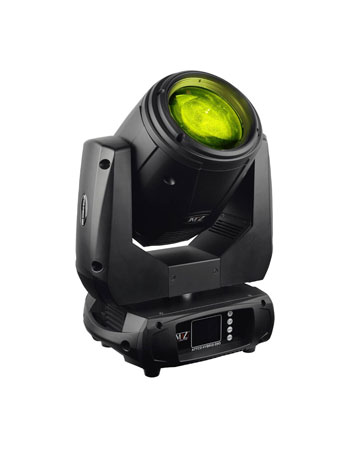

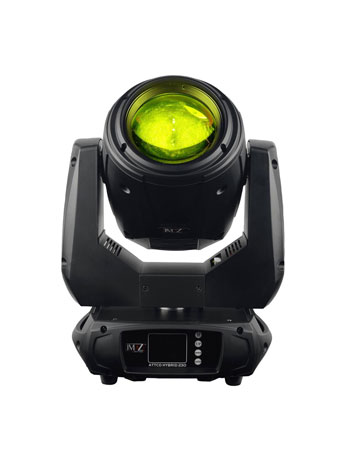

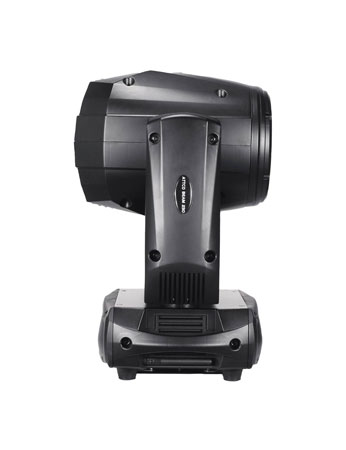

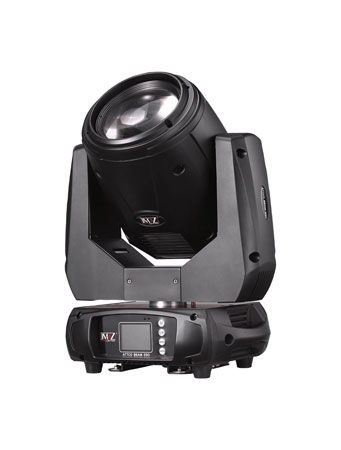

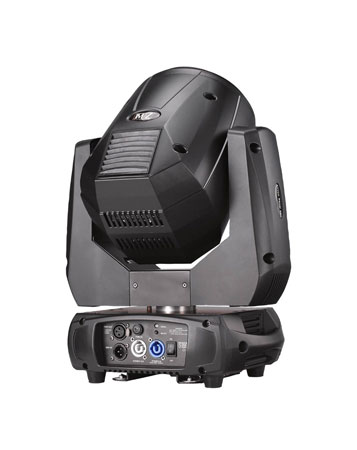

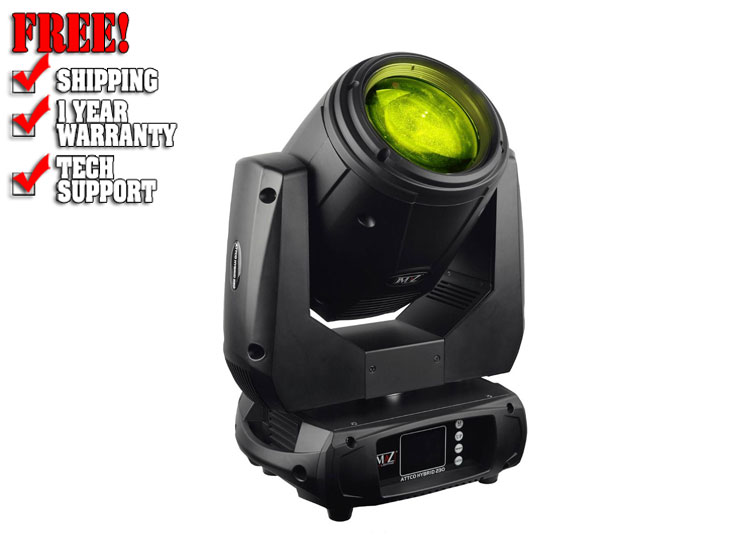

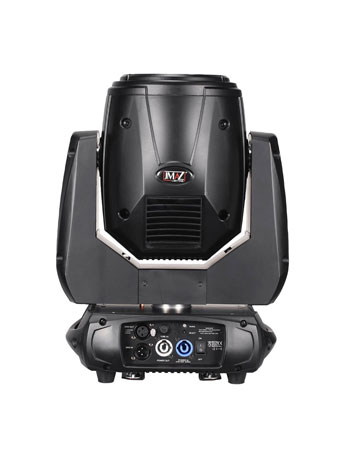

JMAZ Lighting JZ3013 Attco Beam 230 Moving Head with 230W Discharge Lamp - Black Finish

JMAZ ATTCO BEAM 230 Features with Super Prisms (16 facet+24 facet prism)and a powerful, ultra bright OSRAM 7R lamp, 3 phase motors , Solid Beam angle: 2.5°, Anti-reflection 136mm front lenses. JMAZ ATTCO BEAM 230 is integrated with a full complement of professional characteristics including a static gobo wheel (16 gobos), a color wheel (11 colors), Frost filter, Motorized focus from near to far (2.5M-30M), variable speed shutter/strobe, 0-100% linear dimmer.

Features:

• OSRAM 231 Watt.
• 11 colors & white with bicolor option.
• 16 static gobos & open, with beam reducers included.
• Motorized focus from near to far (2.5M-30M.)

Specifications

Light Source:

• Source: OSRAM SIRIUS HRI 7R 231W Bulb
• Lux: 164,230 lx @ 10m , 73,170 lx @ 15m
• Life Exptancy: 2,000 hrs

Color System:

• Color Wheel: 11 colors + Open

Body:

• Hardware On-Board: sockets for quick-Lock Omega bracket
• Pan Angle: 630°
• Title Angle: 270°
• Pan/Tilt Reolsution: 8 / 16 Bit
• Feedback: Scan position memory, auto reposition after unexpected movement
• Body: High Temperature Engineered Plastic and Cast Aluminum Casing
• Body Colour: Black

Electronics:

• Dimmer:0-100% Linear Dimmer
• Strobe/Shutter: 20 T/sec
• Operating Temperature:-35° C to 45° C

Electrical:

• Mains Power Supply: AC Mains
• Max Power Consumption: 190W
• Input Voltage: AC91-260V, 50/60Hz

Optics:

• Beam Angle: 2.5°
• Lens Diameter: 136mm
• Lens Type: Anti-reflections
• Focus: motorized

Dynamic Effect:

• Dual Prism Wheel: 8 Facet + 24 Facet w/ variable speed
• Frost Filter
• Dual Flag Mechanical Dimming
• 20 T/sec High Speed Strobe/Shutter Effect
• Vairable Strobe and Dimming
• Satic Gobo Wheel: 16 Gobos + Open

Control:

• Protocols: DMX512, W-DMX, Wi-MAZ Wireless DMX
• DMX Channels: 14/16 Channel Modes
• Wireless Control: Wi-MAZ Wireless DMX, W-DMX, RF Remote

Physical:

• IP Rating: 20
• Cooling: Fan
• Pan/Tilt:8/16 bit smooth
• Data Connection: DMX, Wireless DMX
• Power Connection:Power-CON
• Dimensions: 15.2" x 15" x 8.7"
• Weight: 30.6 lbs

WHAT'S IN THE BOX

Each Attco Beam 230 Retail Box Includes:

• (1) JMAZ Lighting JZ3013 Attco Beam 230 Moving Head with 230W Discharge Lamp - Black Finish
• (1) User Manual
• (2) Omega Brackets
• (1) 3ft 3-pin DMX Cord
• (1) 3ft PowerCON Cord
• (1) RF Remote
