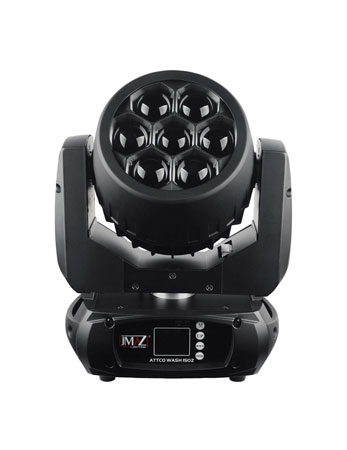

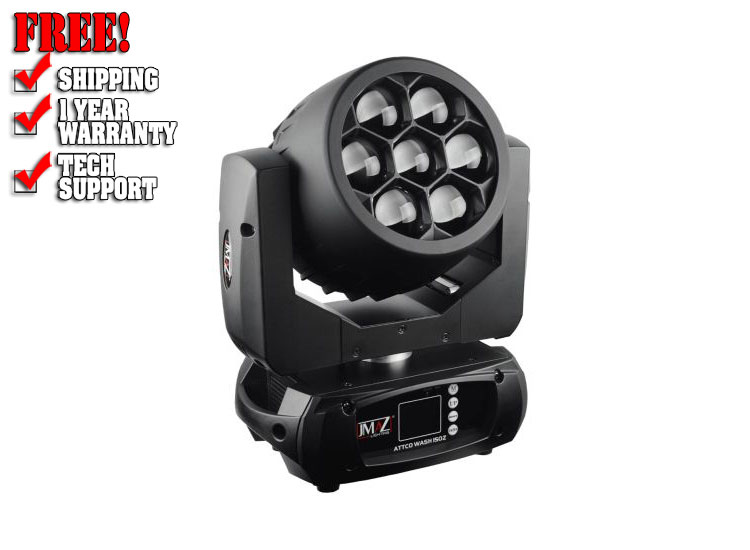

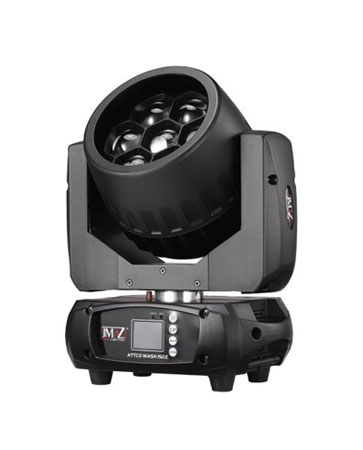

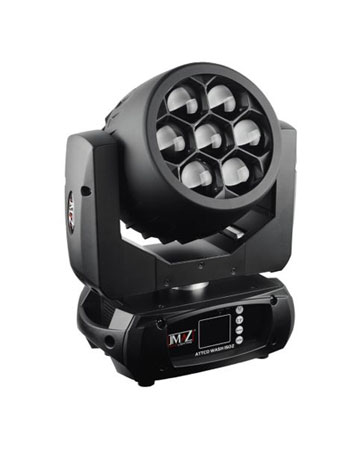

JMAZ Lighting JZ3008 Attco Wash 150Z LED Moving Head

The JMAZ ATTCO WASH 150Z is a compact 7x30W full pixels controlled moving head Wash stylish moving head wash fixture with a smooth, fast and quiet motorized zoom from 6°-60°range. It features 7x30W 4-in-1 RGBW LEDs. The ATTCO WASH 150Z is flicker-free based fixture with even, soft edge and pure color mixing coverage. It provides variable speed shutter/strobe effect, internal programs, virtual colors, dynamic patterns, static patterns and kinds of pre-programming color temperature options to its users for easy operation.

Features:

• 7x30W 4-IN-1 RGBW LED.
• Beam angle: 6°-60°.
• 0-100% Linear LED dimmer.
• DMX512, master-slave and sound activated or auto operation (9 built-in program.)

Specifications

• Light Source: Source: 7 x 30W RGBW LEDs

Color System:

• Color LEDs: RGBW

Body:

• Hardware On-Board: sockets for quick-Lock Omega bracket
• Pan Angle: 630°
• Title Angle: 270°
• Pan/Tilt Resolution: 8 / 16 Bit
• Feedback: Scan position memory, auto reposition after unexpected movement
• Body: High Temperature Engineered Plastic and Cast Aluminum Casing
• Body Colour: Black

Electronics:

• Dimmer: 0-100% Linear Dimmer
• Strobe/Shutter: 25 T/sec
• Operating Temperature: -20° C to 45° C

Electrical:

• Mains Power Supply:AC Mains
• Max Power Consumption: 240W
• Input Voltage: AC90-260V 50/60Hz

Optics:

• Zoom: 6° to 60°

Dynamic Effect:

• Flat Beam Field
• Strobe Effect
• Zoom Wash Effect

Control:

• Protocols: DMX512, W-DMX, Wi-MAZ Wireless DMX
• DMX Channels: 13/15 Channel Modes
• Wireless Control: Wi-MAZ Wireless DMX, W-DMX, RF Remote
• Display: 2.4" TFT LCD Display
• Firmware Upgrade: Yes, USB-DMX Interface, not included.

Physical:

• IP Rating: 20
• Cooling: Fan
• Pan/Tilt:8/16 bit smooth
• Data Connection: DMX, Wireless DMX
• Power Connection: Power-CON
• Dimensions: 11.1" x 6.7" x 13.2"
• Weight: 14.6 lbs

WHAT'S IN THE BOX

Each Attco Wash 150Z Retail Box Includes:

• (1) JMAZ Lighting JZ3008 Attco Wash 150Z RGBW 210W LED Moving Head
• (1) User Manual
• (2) Omega Brackets
• (1) 3ft 3-pin DMX Cord
• (1) 3ft PowerCON Cord
• (1) RF Remote
