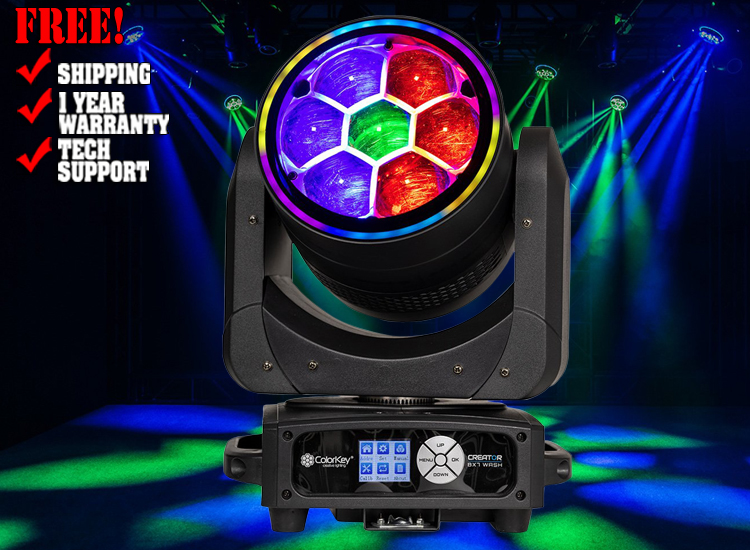

ColorKey Creator BX7 Wash

The ColorKey Creator BX7 Wash is a versatile Bee-Eye luminaire powered by seven 40W RGBW LEDs.At its core, the BX7 functions as a high-output RGBW wash light, delivering vibrant, even color coverage across a wide zoom range. With zoom fully wide, it gives a lush, soft wash, perfect for bathing the stage or audience in color. Individual pixel control of each LED segment combined with infinite rotation of the front lens cluster create a mesmerizing flower or kaleidoscope-style effect that adds motion and depth to your lighting look.

When zoomed in tight, the BX7 acts more like a beam effect, where the individual pixels produce crisp, concentrated rays that can spin, chase, or dance independently. As part of the Creator Series, the BX7 Wash sports a multicolor halo around the edge of the beam, which synchronizes with other Creator fixtures and includes pre-programmed chases and patterns, ensuring seamless integration and visual consistency across your setup.

Frame Set position control mode is designed to keep the light beams from going where you don't want them, like the back wall or your audience's eyes.Designed for events and permanent installs alike, all ColorKey Creator Series fixtures feature quick-release brackets and PowerCon power linking to simplify setup and teardown. A heavy duty flight case is also available separately.

Features:

• 280W LED moving head Bee-Eye luminaire perfect for washing the stage or audience in color.
• With individual pixel control, each LED segment can be assigned its own color and intensity, creating chase patterns, color waves, and animated effects.
• The front lens cluster can rotate continuously in both directions, creating a mesmerizing flower or kaleidoscope-style effect that adds motion and depth to your lighting look.

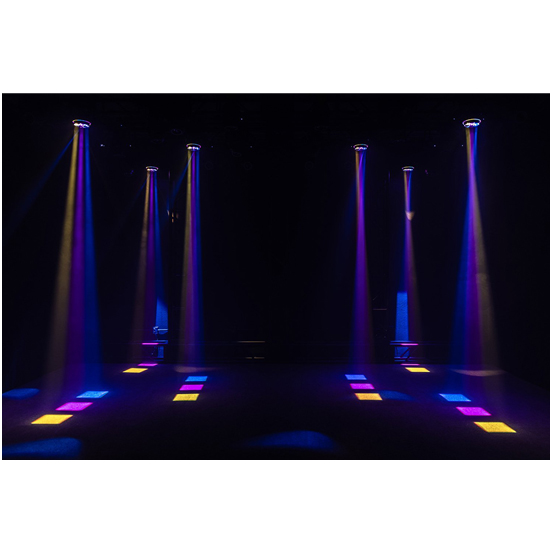

• Use the Zoom to create multi-beam effect, where the individual pixels produce crisp, concentrated rays that spin, chase, or dance independently, creating trippy mid-air visuals.
• Includes 50 preset patterns.
• RGB halo around the beam synchronizes with other Creator Series fixtures with pre-programmed chases and patterns.
• Create versatile light shows with independent dimmer and strobe control of beam and halo.
• Precise light direction is made effortless with Frame Set position control right out of the box. Frame Forward keeps your light focused on the party - not the back wall - while Frame Up limits tilt to keep beams out of your audience's eyes.
• DMX Hold keeps current values in case of signal loss.
• Includes quick-release bracket to simplify setup and teardown.
• Color LCD display for intuitive navigation.
• SKU: CKU-5160

Specifications

• Light Source: 7 x 40W RGBW LEDs
• Halo: 54pcs RGB LEDs, with rich built-in dynamic effects
• Color Temperature: 2800-8500K
• LED Lifetime: 50,000 hours
• Brightness:
  • 5° - 60,900 lux @ 2 meters
  • 25° - 5,100 lux @ 2 meters
• Beam Angle: 5-25°
• Field Angle: 30°
• Strobe: 1-30 Hz
• Dimmer: 0-100% linear dimming
• Pan: 540° with fine adjustments
• Tilt: 250° with fine adjustments
• DMX Channel Modes: 25 / 53
• Control Modes: DMX512, Auto, Master-slave, Sound Active, RDM
• Display: 1.77-inch LCD Display
• Power Connection: PowerCon Locking in/out
• DMX Connectors: 3-pin DMX in/out
• Max Power Consumption: 350W
• Voltage: AC100-240V, 50/60 Hz
• Size: 26 x 19 x 36 cm (10.2 x 7.5 x 14.2 in.)
• Weight: 6.3 kg (13.9 lb.)
