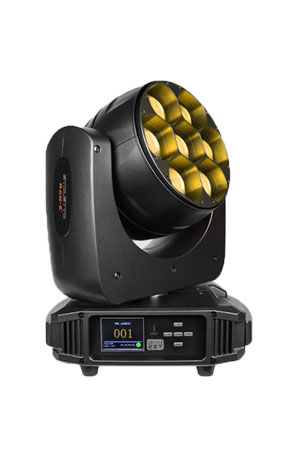

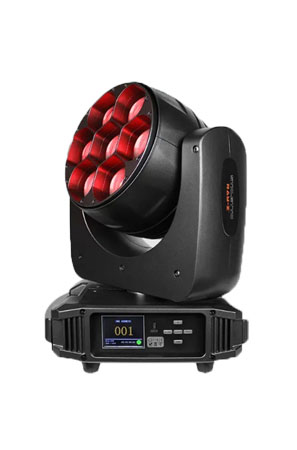

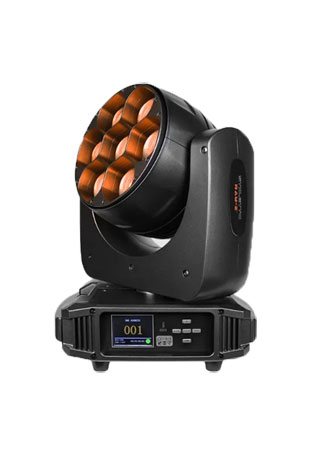

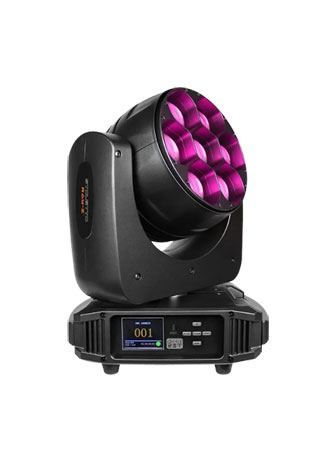

Blizzard Stiletto™ Ray-Z

• 7x 40W Osram™ Ostar RGBW 4-in-1 LEDs, 100,000 hours
• Fast and precise zoomable beam angle (4.5°- 36°)
• 8-16 bit smooth pan and tilt resolution

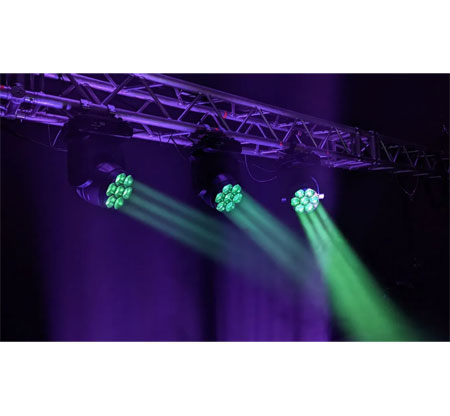

Razor Sharp Beams

Stiletto™ Ray-Z is ultra-fast and features precise motorized zoom (4.5°- 36°) for narrow to wide moving beams.

Automatic Position Correction

It's 3-phase motors create smooth, quick movements (540° pan: 2.2s, 200° tilt: 1.2s) with automatic position correction.

Tech Specs

Pixel Mapping + Zoom

Stiletto™ Ray-Z is a feature-packed, professional moving head fixture fitted with 7x 40W OSRAM™ Ostar RGBW 4-in-1 LEDs with full pixel mapping capabilities via DMX, and it also offers ultra-fast and precise motorized zoom (4.5°- 36°) for narrow to wide moving beams.

Professional Features

It's 3-phase motors create smooth, quick movements (540° pan: 2.2s, 200° tilt: 1.2s) with automatic position correction.

Warranty

• 2 Year - Extendable

Optical

• 7* 40W Osram Ostar RGBW 4-in-1 LEDs, 100,000 hours
• RGBW color mixing
• Full pixel mapping capabilities
• Fast and precise zoomable beam angle (4.5°- 36°)
• Flicker-free LEDs

Control

• Protocol: USITT DMX-512, Art-Net, Kling Net, sACN
• DMX channels: 15/18/38-channel modes
• 5-button LCD control panel
• 5-pin DMX + RJ45 input/output
• Operating modes: DMX512, M/S, auto, sound active

Movement

• 8-16 bit smooth pan and tilt resolution
• Pan: 540°/ Tilt: 200°
• Automatic pan/tilt position correction

Power & Current

• 90-250VAC, 50/60 Hz
• Power Consumption: 324W, 2.92A, PF: .99
• PowerCON™ compatible AC power In/Out connectors

Dimensions

• 14.6" x 8.6" x 12.2"
• 19.9lbs

General Specs

Luminous intensity:

• 43,675 Lux @ 2.5M (narrow), 2,023 Lux @ 2.5M (wide)
• 12,120 Lux @ 5M (narrow), 632 Lux @ 5M (wide)
• 5,324 Lux @ 7.5M (narrow), 277 Lux @ 7.5M (wide)
• 3,229 Lux @ 10M (narrow), 180 Lux @ 10M (wide)
