Blizzard MystACL™ Z

• 10x 30W OSRAM™ Ostar RGBW 4-in-1 LEDs, 50,000 hours
• Fast and precise 3-60° zoomable beam angle
• Single or dual pixel mapping capabilities via DMX

Ultra-Sharp + Versatile

Dazzle audiences with its pixel-mapped, narrow-beam light curtain FX + vibrant color washes that are precise and powerful enough to use anywhere on stage.

Infinitely Customizable

A programmer's dream, its color mixing is designed to be both efficient and fun so you can focus on the artistic expression instead of the technical build.

Tech Specs

RGBW LEDs + Zoom

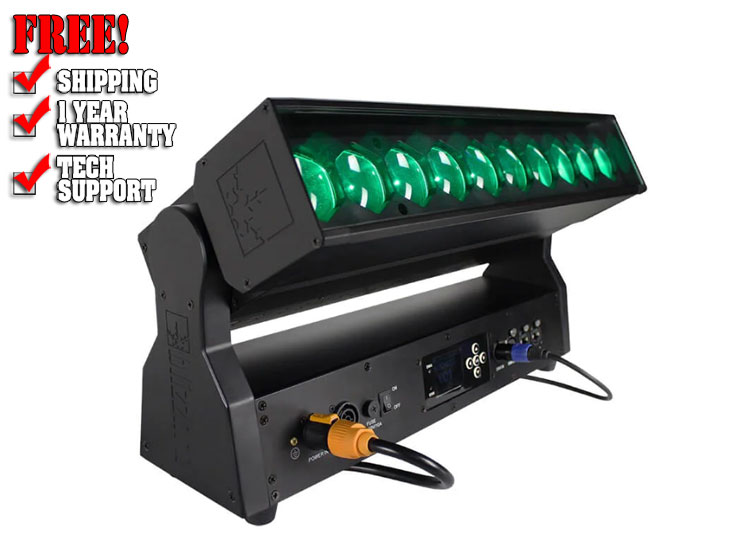

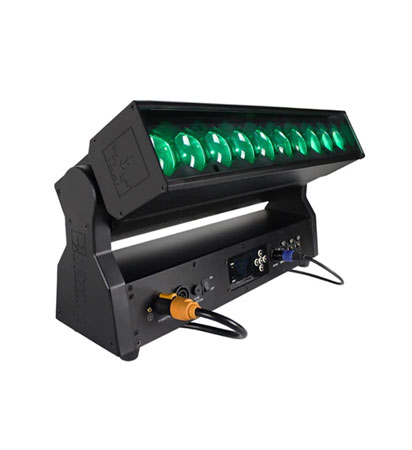

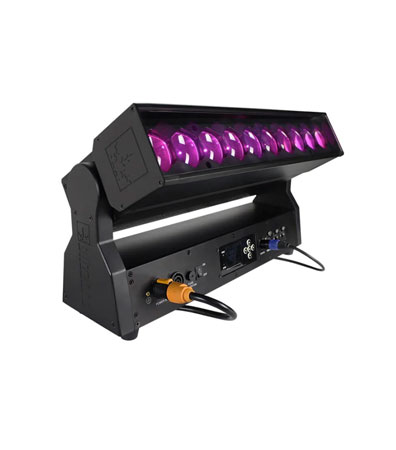

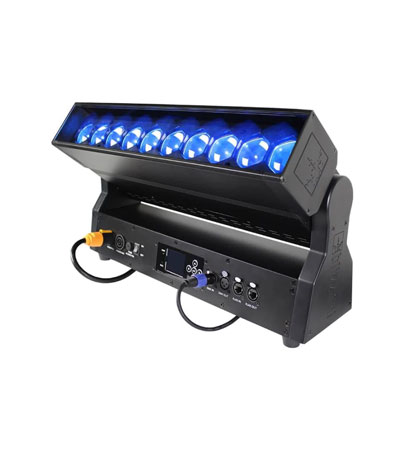

MystACL™ Z is a high-performance LED bar loaded with 10* 30W OSRAM™ Ostar 4-in-1 RGBW LEDs. It offers DMX control with full pixel mapping capabilities, plus 3° to 60° zoom, creating effects that can range from a narrow angled light curtain to a wide angled wash.

Loaded With Features

It also features 210° motorized tilt (8-16 bit), unique 3-layer pixel set & macro effects, multiple built-in programs, color presets, 3/5-pin DMX + RJ45 input/output connections (Art-Net ready), and powerCON® TRUE1-compatible power input/output connections.

Warranty

• 2 Year - Extendable

Optical

• 10x 30W OSRAM™ Ostar RGBW 4-in-1 LEDs, 50,000 hours
• 3-60° zoomable beam angle

Control

• Protocol: USITT DMX-512, Art-Net
• DMX channels: 13/26/28 or 46-channel
• 5-button LCD control panel
• Operating modes: DMX512, M/S, auto, sound active

Power & Current

• 100-240VAC, 50-60Hz
• Power consumption: 261W, 2.26A, PF: .99
• PowerCON™ TRUE1-compatible AC In/Out

Dimensions

• 13.4" x 5.9" x 19.7"
• 20.1lbs

General Specs

• 8-16 bit motorized 210° tilt
• Flicker-free LEDs
• Single or dual pixel mapping via DMX
• 3-layer effects via DMX
• Built-in macros and color presets
• Luminous intensity:
• 10,524 Lux @ 2.5M (narrow) 1,015 Lux @ 2.5M (wide)
• 6,105 Lux @ 5M (narrow) 241 Lux @ 5M (wide)
